Drobo FS DRDS2-A Power Switch Replacement

Geschrieben von: Rye Cassan
  • Kommentare: 3
Drobo FS DRDS2-A Power Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 Minuten

Einleitung

How to replace the Power Switch

  1. MVnUaRLQNGHCTwHL

    • To start getting the case off remove the front panel so it's out of the way.

  2. s1ieRNFMAjvwSwT6
    s1ieRNFMAjvwSwT6
    JDOsXwGHO4AAiTxl

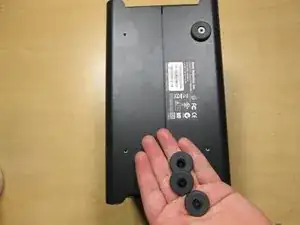

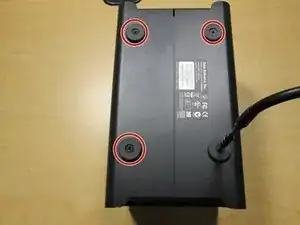

    • Next remove the screws from the feet of the case with a phillips head screwdriver.

  3. eCFbfAxdZMPoEJ2l

    • To remove the case, place the Drobo on its back and slide the case off.

  4. nrosrdKpGrmvAMB6
    nrosrdKpGrmvAMB6
    kwbYCF66iG4uGiqP
    uG6UKomRZhcP1DNI

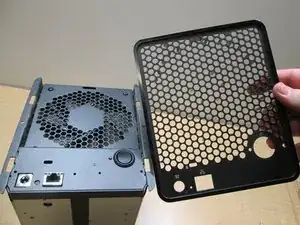

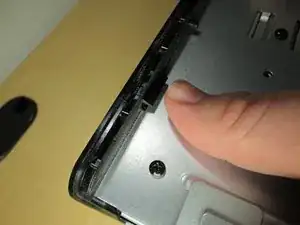

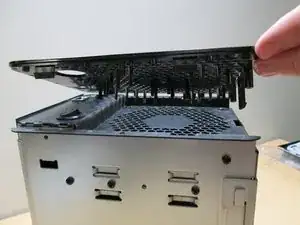

    • Press tabs to release back cover and lift off

  5. 6aDFA2IKa3qfnrqA
    6aDFA2IKa3qfnrqA
    EVA6LtZVMNrUtfuj

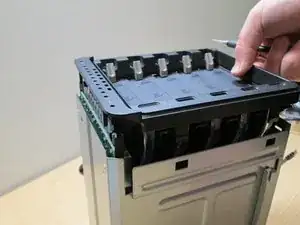

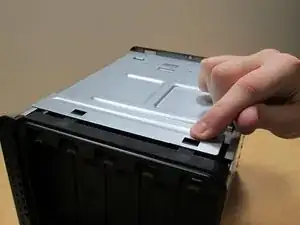

    • Push tabs in and carefully pull out the front facer and drive shelves

  6. FnMVjStZPbGusiTn
    FnMVjStZPbGusiTn
    CCTdgYPUdBsR5Fob

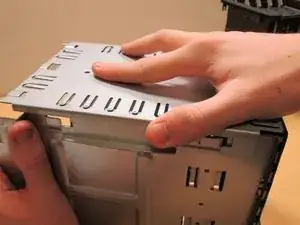

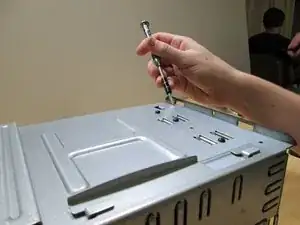

    • Unscrew the back face by removing the screw on the back sides, then slide top face apart from the others

    • If you have a Drobo 5N2, you may also need to remove the 3 screws on each side.

  7. 4wcBav43v1eLImqV
    4wcBav43v1eLImqV
    BZGDvQ3echsIG2fB

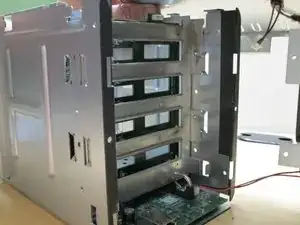

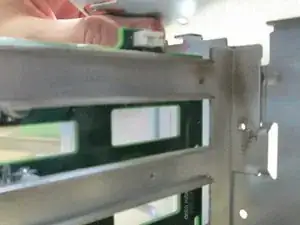

    • Carefully unplug the Power Switch and Fan wires.

  8. sEKbnclMfC6EGHHL

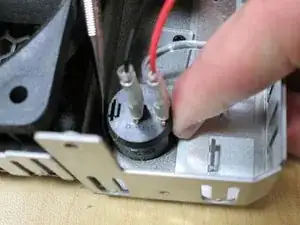

    • Press tabs on Power Switch to release the Power Switch and Push out.

    • A Spudger like object is helpful for pushing in the tabs if the fan is not removed also

  9. pRT6PEFNabofkjl2
    pRT6PEFNabofkjl2
    NNIsyqJ3MvMJhdLD

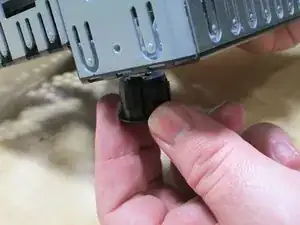

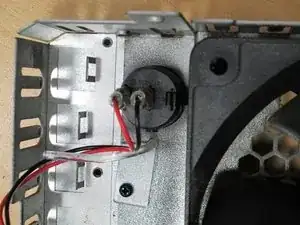

    • Finally pull the old switch out and pop the new one in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
