This guide is to replace a damaged battery on the Motorola Droid XT 1080. It is important because your phone will not charge or turn on if the battery needs to be replaced.
-
-

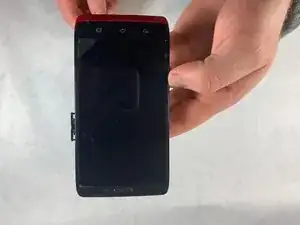

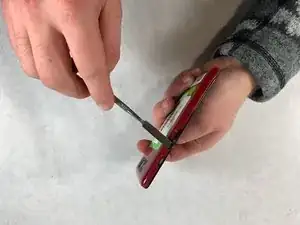

After properly removing the SIM card tray take your spudger and press it in between the plastic case and the frame of the device until you hear a snap.
-
Work your way from the top and the other side to confirm all the clips are disconnected.
-
-
-

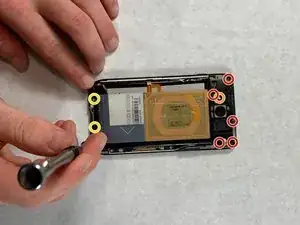

Remove the five screws on top of the device with a T5 Torx.
-
Remove the single screw holding the camera with a T4 Torx.
-
Remove the two screws on the bottom of the device with a T5 Torx.
-
-
-

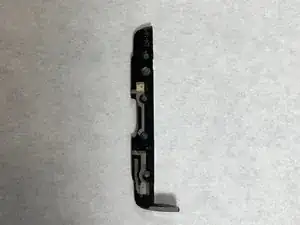

After the top and bottom screws are removed remove the top and bottom plastic pieces that were secured to the device.
-
-
-

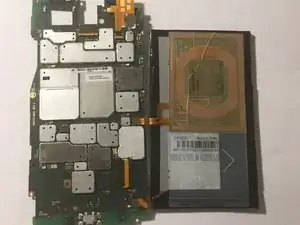

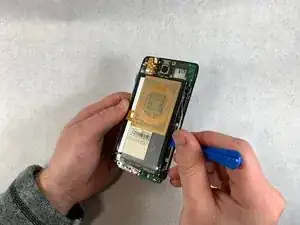

Begin to gently pry up the battery from the frame with a plastic opening tool to release it from its adhesive securing.
-
-
-

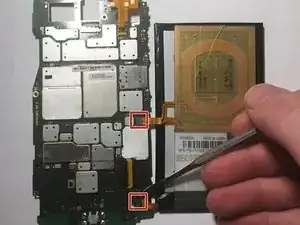

Disconnect the LCD cable with a spudger from the motherboard by gently lifting up the two connectors.
-
To reassemble your device, follow these instructions in reverse order.
