Droid Ultra XT1080 Power Button Replacement

Geschrieben von: knoyes
  • Kommentare: 0
Droid Ultra XT1080 Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

35 Minuten

Einleitung

This guide will show you how to properly replace the power button on your Motorola Droid Ultra XT 1080

  1. p3ltiB3ff3hIEuPM
    p3ltiB3ff3hIEuPM
    HEkXPkhTKv56dQUq
    dSXdcIPdUBrveA3D

    • Gently remove the SIM card tray from the device using a spudger.

  2. havtgDyCDyvrRYXi

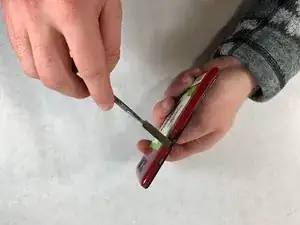

    • After SIM card removal press the spudger between the plastic case and the frame until you hear a snap.

    • Work your way around the device until all the clips are released.

    • Be gentle while doing this so you don't crack or break the plastic.

  3. BWcOGBaMnY2rbjRs

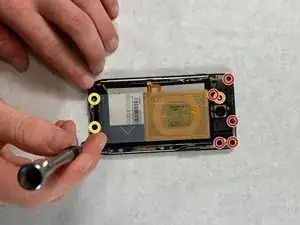

    • Remove the five screws on top of the device with a T5 Torx.

    • Remove the single screw holding the camera with a T4 Torx.

    • Remove the two screws on the bottom of the device with a T5 Torx.

  4. OcYbMSH32dxsqPDl
    OcYbMSH32dxsqPDl
    GBNOJLgC1lUpHYuk

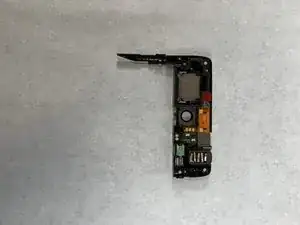

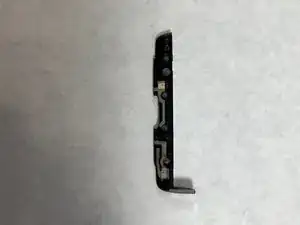

    • Once the screws are removed, use a nylon spudger and lift up on the two plastic pieces that were secured by the screws.

  5. 6nWGxOTjfpvYxHBV

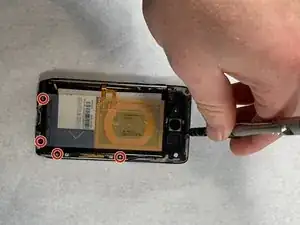

    • Remove the four T5 Torx screws securing the motherboard.

  6. rZ4CLBZw6VHICQ6K

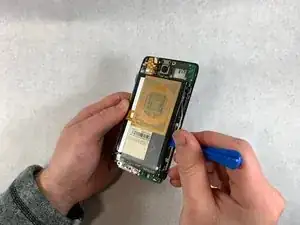

    • Gently pry the motherboard out of the frame using the plastic opening tool.

  7. 1p1LymLDvdBqrcwF
    1p1LymLDvdBqrcwF
    DBR22DPXoxiAwLKk

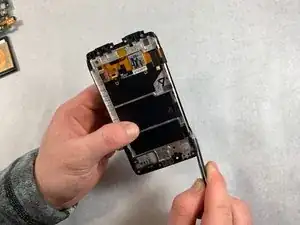

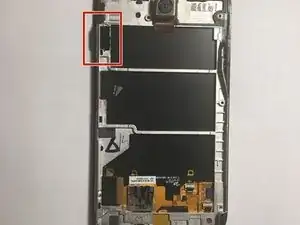

    • Once motherboard is removed you have gained access to the power button.

    • Gently, using a pair of angled tweezers pull on the power button to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
