Drop-Front Desk Panel Repair

Geschrieben von: Kiarra
  • Kommentare: 0
Drop-Front Desk Panel Repair

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

35 Minuten

Einleitung

Drop-front desks, also known as slant-front desks, have a drop-front hinged panel. Users can open the panel by lowering it down to use as a writing surface. However, the connection between the main desk and the drop-front panel can experience damaged. The force of slamming down the drop-front panel repetitively to access the main cubby inside the desk can loosen screws, destabilize hinges and eventually lead to detachment.

If the drop-front is damaged, the desk's function is lost. For example, the drop-front desk will not provide a flat yet accessible platform to write on. Also, the drop-front will not raise back up towards the desk to make more room.

Reading this guide informs an audience how to repair a broken drop-front panel to restore the completeness and functionality of the panel and the overall desk. This repair requires lifting the panel and having another person assist in certain parts of the repair.

  1. DcWfUnbtbfytxtmh
    DcWfUnbtbfytxtmh
    iDMacILefuaSRAF6
    yAf2nV3gNCYDNyLg

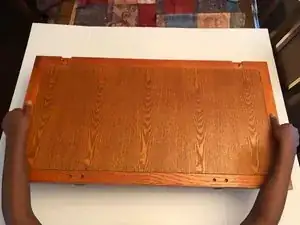

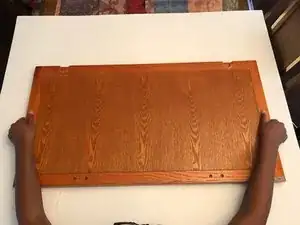

    • Place the drop front panel on a firm and flat surface.

    • A firm surface minimizes the risk of the panel injuring one’s body or experiencing further damages.

  2. 6vadceEoNctkwbVn
    6vadceEoNctkwbVn
    TFcHkGDvYZJNKK5b
    NnqRextXhfDmFoMJ

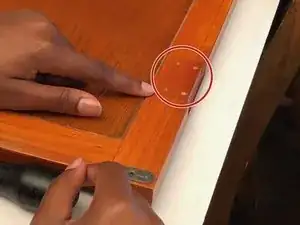

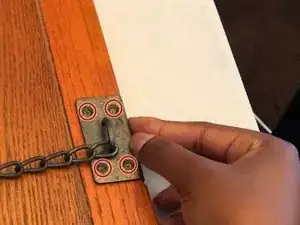

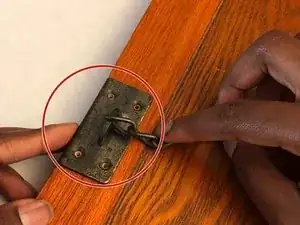

    • Position the rectangular plate over the Phillips #5 wood screw holes (15mm) on the left width.

    • There are six Phillips #5 wooden screw holes in total (15mm). Four wooden screw holes (15mm) are on the left width of the panel and two other screw holes are on the width's side.

    • Repeat this step with the right width of the panel.

    • The rectangular plates that will later be fastened to the left and right width are connected to chains. The chains connect to another hinge piece that will later be connected to the main desk frame.

  3. enjabeu1CAn2ZDol
    enjabeu1CAn2ZDol
    xhJLXh243YbwZFjT
    rIyDY5DEYL62JKQ3

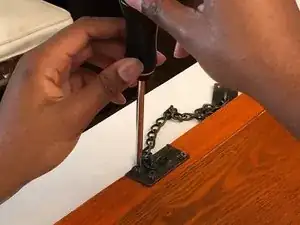

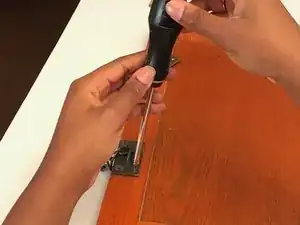

    • Use the Phillips #2 screwdriver to turn the six Phillips #5 wood screws (15 mm) and secure the rectangular plates to the left width of the panel.

    • Repeat this step with the right width of the panel.

    • Turn the screwdriver to the right to tighten the screws. Turn the screwdriver to the left to loosen the screws.

  4. x5YqwpbDLVvPMM2D
    x5YqwpbDLVvPMM2D
    c4auulYrJpPkJ13j
    TTu3Dt4kDN3gKKqe

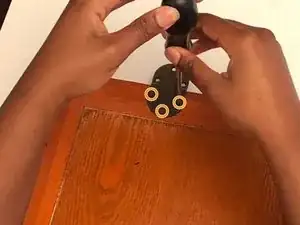

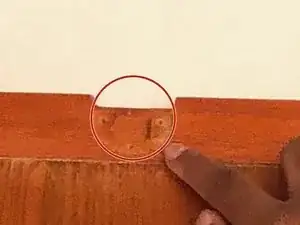

    • Position the hemispherical plates over the left hemispherical hole on the length of the panel.

    • Repeat this step with the right length of the panel.

    • A hemisphere is the half of a circle.

    • Use the Phillips #2 screwdriver to turn the three #5 wood screws (15mm) and tighten the hemispherical plates along the length of the drop-front panel.

  5. A6dIpQnIEajhhVwY
    A6dIpQnIEajhhVwY
    vemJQbyTsnQEd2WK
    QWi3j1nNe1HtE6AW

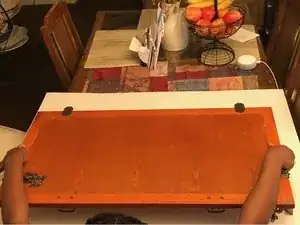

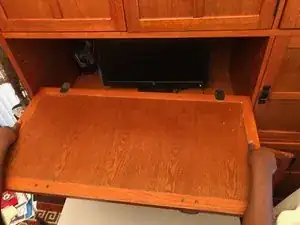

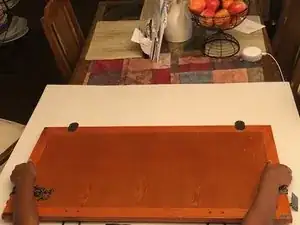

    • Prevent dropping the drop-front panel by carrying the panel with each hand grasping both sides of the panel's width.

    • Carry the panel from the flat surface to the main desk frame.

  6. DxQf5KoUV2yDOfiN
    DxQf5KoUV2yDOfiN
    VExLJGVeAoM5wG6A
    wOUveHCcZnGBbeNy

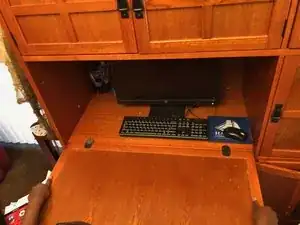

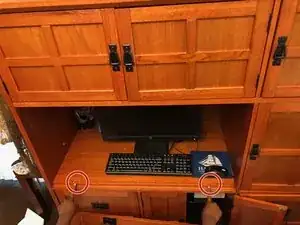

    • Connect the panel to the bottom edge of the main desk frame.

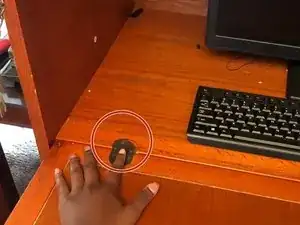

  7. iPXnmLtoCR4Iw1Lm
    iPXnmLtoCR4Iw1Lm
    eoEdYtA6sNY2Lurs

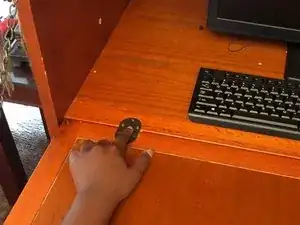

    • Position the panel's hemispherical plates over the hemispherical holes on the left and right side of the main desk frame.

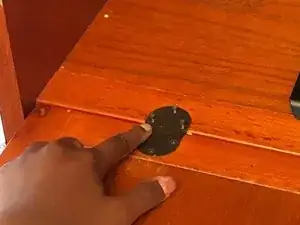

  8. AJO233AXn3V3jwpq
    AJO233AXn3V3jwpq
    ybgLWcLJbjFLHeTB
    tNwqU5aqNmbTIOvn

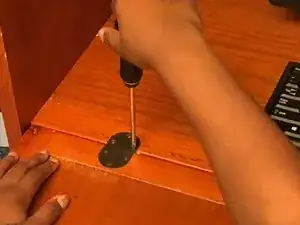

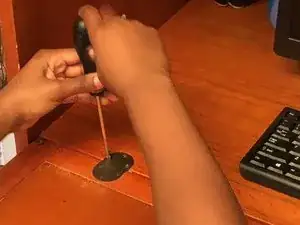

    • Have one person hold the drop-front panel in place and another person screw the hinges in place.

    • Use the Phillips #2 screwdriver to turn the three Phillips #5 wood screws (15mm) and tighten the hemispherical hinges on the main desk frame.

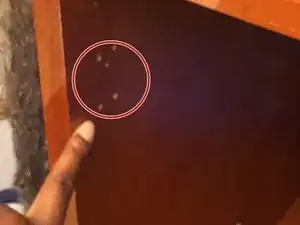

  9. a5egWhWdSSEPQen2
    a5egWhWdSSEPQen2
    npu3xNiRFDAniXGS
    5cxN6SuZMToUspAA

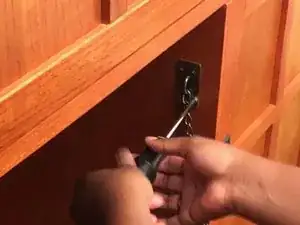

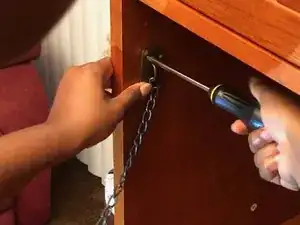

    • Position the second half of the rectangular plate over the four wood screw holes (15mm) on the left side of the inner desk frame.

    • Repeat this step with the right side of the inner desk frame.

    • Use the Phillips #2 screwdriver to screw the four #5 wood screws (15mm) and tighten the rectangular plate.

    • Repeat this step with the right side of the inner desk frame.

  10. AqSjWM52yMoBYBQy
    AqSjWM52yMoBYBQy
    LYh5dLGqKXgmqnU3
    6tWMkOUFFPy1lRt1

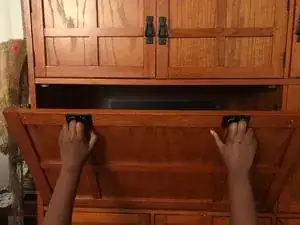

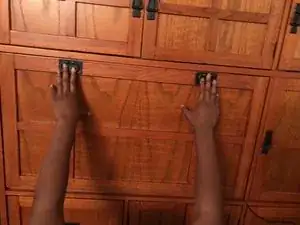

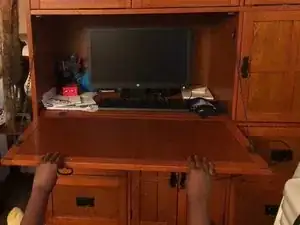

    • Test the connection between the main desk frame and the drop-front panel by raising the panel towards the inner desk frame and away from it.

    • If the connection is unsteady or makes noise as you raise and lower the panel, tighten all the screws on the panel and the main desk frame.

Abschluss

To disassemble your device, follow these instructions in reverse order.
