DualShock 4 CHU-ZCT2U Charging Assembly Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 9
DualShock 4 CHU-ZCT2U Charging Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

10 - 20 Minuten

Einleitung

Follow this guide to replace the charging assembly on a Sony Dualshock 4 CHU-ZCT2U PlayStation controller.

  1. tUikjiOGBaxcOEkP
    tUikjiOGBaxcOEkP
    TmnKQyKCNFSJTcJc

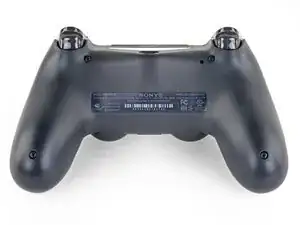

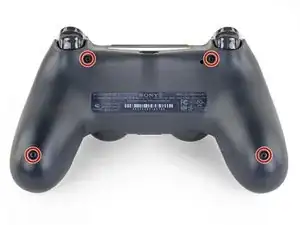

    • Use a Phillips screwdriver to remove the four 6.4 mm-long screws from the rear panel.

  2. w1bkfQZMxAAHtQgX
    w1bkfQZMxAAHtQgX
    plRPM3kHcVdnHKKr

    • Four fragile plastic clips hold the panels together. You can see their locations more clearly in this guide.

    • The clips help hold the seams together. If you break these clips, the controller will still work.

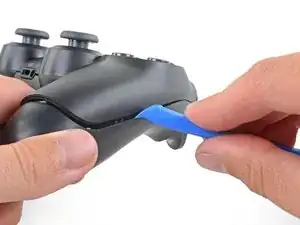

    • Insert an opening tool into the crease where the front and rear panel meet, starting from the outside edge of either handle.

    • Gently pry the rear panel off of the front panel until they become partially separated.

    easy, but quite brute way of opening the rear panel without the opening tool: https://www.youtube.com/watch?v=wYybiBBL...

    watch the opening from the back part only, then return here.

    christianviali -

    That worked but a couple clips broke in the process. Beware for people trying this method.

    Bryan Remely -

    There are 4 tab clips total, 2 at the top corners (very easy to break) and 2 at the bottom near the ports. The screws will keep it together even if they do break but be careful if you don’t want to break them.

    Fungi -

    I've written a guide to help others find the clips and unlatch them.

    Wichtiger Schritt zum Öffnen des DualShock 4 CUH-ZCT2

    Richard -

    Hi Richard,

    Thanks for writing this up! I'm going to link your guide into the step.

    Arthur Shi -

  3. DIJIOhITDeiAwtRH
    DIJIOhITDeiAwtRH
    NF4xVXtPZufVHicc
    QeIjsGkBIonmDXX1

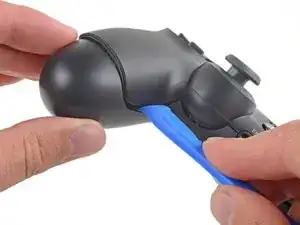

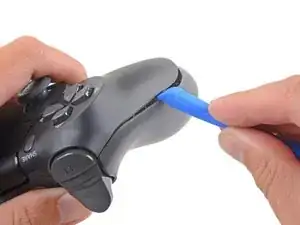

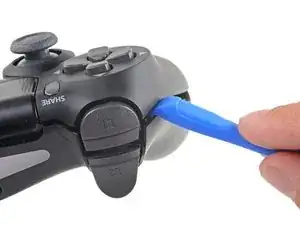

    • Use the opening tool to separate the panels by releasing the plastic clips around the perimeter of the controller.

    I've written a guide to help others find and unlatch these clips

    Wichtiger Schritt zum Öffnen des DualShock 4 CUH-ZCT2

    Richard -

  4. omi15NXRmqNu43A2
    omi15NXRmqNu43A2
    UitmPy1NEmiWWRpI

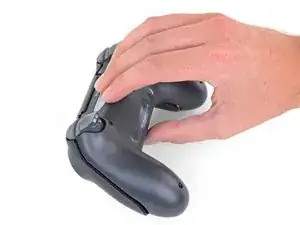

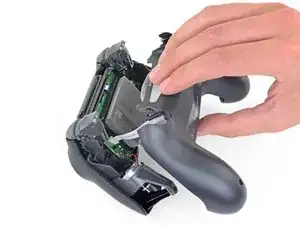

    • Lift the rear panel directly away from the controller.

    • Do not completely remove the rear panel. It is still attached to the controller by a ribbon cable.

  5. Ro5UWfFl1lrsvuAV
    Ro5UWfFl1lrsvuAV
    GAGBgDPAAaZIEyLA

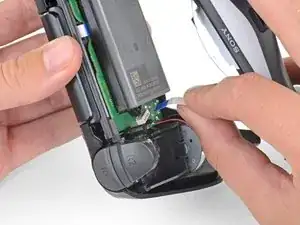

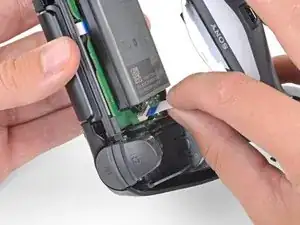

    • Use your fingers to gently pull the ribbon cable straight out of its connector on the motherboard.

    • Since this cable's pull tab is too small to grab with fingers or tweezers, grab the cable itself. Otherwise utilize pull tabs whenever possible.

    • During reassembly, grab the ribbon cable by the blue tab and gently press the cable straight into the connector. Push the blue tab rather than the ribbon cable itself.

    I'm struggling getting the ribbon to connect back in. Why might that be?

    David Clair II -

  6. 6IWKg4VxLacIktqP
    6IWKg4VxLacIktqP
    KQAX4SsHe5LjYOOA
    NBc5xJawXvLXqtsT

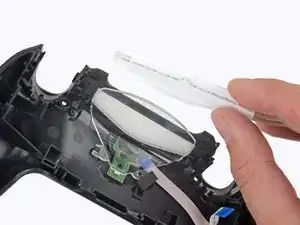

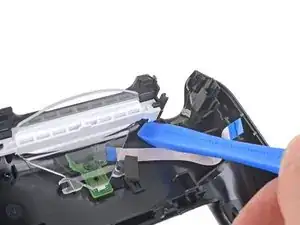

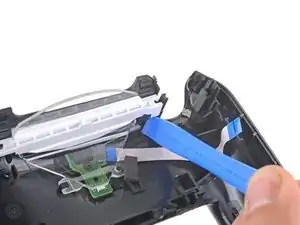

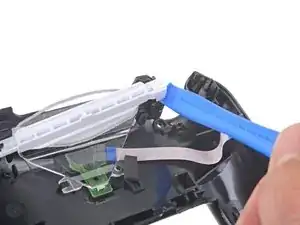

    • Use an opening tool or spudger to separate the white plastic bar from the rear panel.

  7. LirWpwHsEKlW53rP
    LirWpwHsEKlW53rP
    PfMlFCqGYZZaJSKj

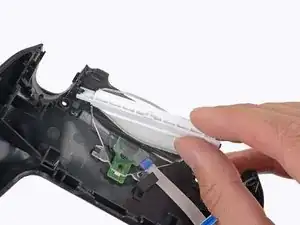

    • Remove the white plastic bar.

  8. GjR4rUck4bONaW3J
    GjR4rUck4bONaW3J
    tnLTIGOVtRa2a3MK
    2vdPotLhbaQ6whlQ

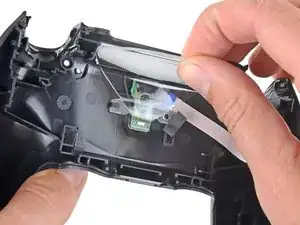

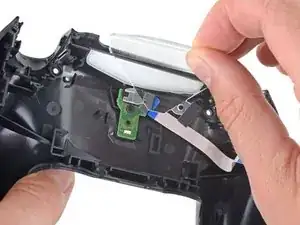

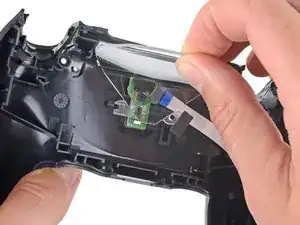

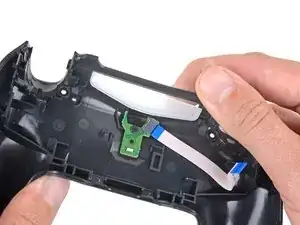

    • Lift the light guide away from the rear panel to remove it.

    • During reassembly, align the light guide with the rear panel using the notch near the bottom left.

  9. JmYKPTgSbbPJCjyA
    JmYKPTgSbbPJCjyA
    iV6HrfZ4P3Ypmpyx
    gyRXtqpM5wXrQlbk

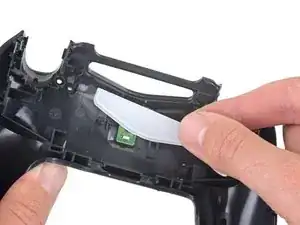

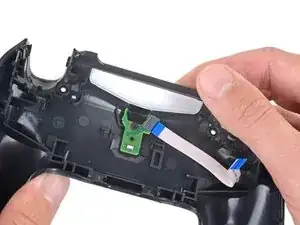

    • Use your fingers to press the translucent plastic piece down through the top of the controller.

    • Remove the translucent plastic piece.

  10. 5QcYYAfdNpu1DPa4
    5QcYYAfdNpu1DPa4
    WwuPsHvNJofAmgbk

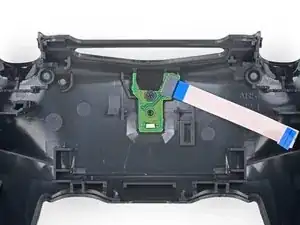

    • Use a Phillips screwdriver to remove the 4.4 mm-long screw from the charging assembly.

  11. Ub1PaeIttiQSTWWM
    Ub1PaeIttiQSTWWM
    kdXZLIXUffSXReFV

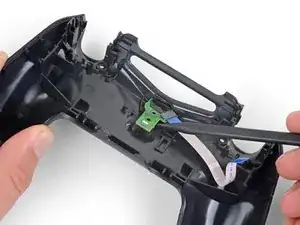

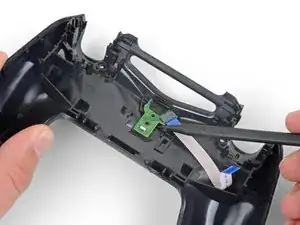

    • Use the pointed end of a spudger to lift the charging assembly away from the rear panel.

  12. MIAoXGbhLeNBmBFC
    MIAoXGbhLeNBmBFC
    hj4FlIGFiOKtiOXl

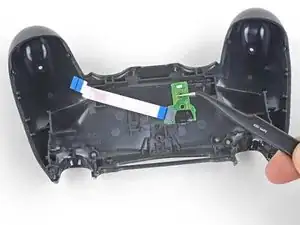

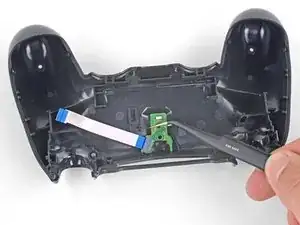

    • Use your fingers or a pair of tweezers to remove the charging assembly from the rear panel.

Abschluss

To reassemble your device, follow the above steps in reverse order.
