DualShock 4 CHU-ZCT2U Disassembly

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

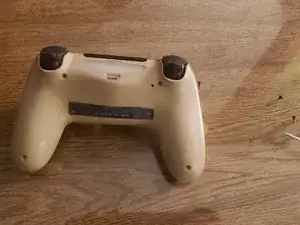

  1. ygp3BB5h3yJxchMU
    ygp3BB5h3yJxchMU
    KbHghQpOnYeRda4V

    • All the screws are the same in the controller (Phillips's head).

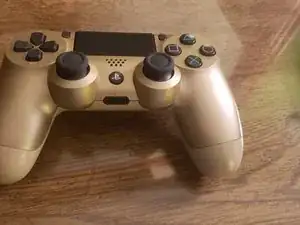

  2. DGiVDhbSUbpFWuyC

    • Use a plastic spudger to open the case. Try not to scratch the plastic.

    In order to open the case, you will need to unlatch 4 clips holding it together. I've written a guide to help people find and open them.

    Wichtiger Schritt zum Öffnen des DualShock 4 CUH-ZCT2

    Richard -

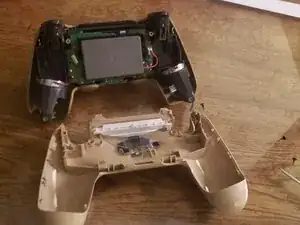

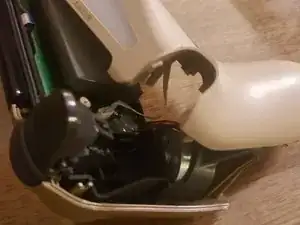

  3. g2AypmuBHiXPimZ1
    g2AypmuBHiXPimZ1
    IaUfqXaTMNCUeOH1

    • Be careful opening the case because there is a ribbon cable holding the 3 halves together.

    • The plastic for the lightbar will look different from mine because it's fragile and it broke.

  4. pYSfseG61oWsRYj5
    pYSfseG61oWsRYj5
    e4TmUw24HOVej1iL

    • Remove the battery and the screw underneath it.

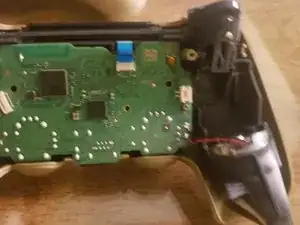

  5. nK2ZMJTgSP4YUBJU

    • The ribbon cable slots through the rectangular hole in the plastic beneath.

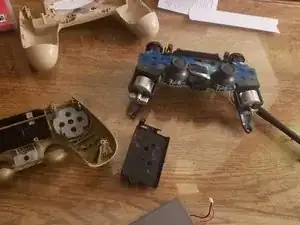

  6. so2suY2L5UKNMWYj

    • Remove the board.

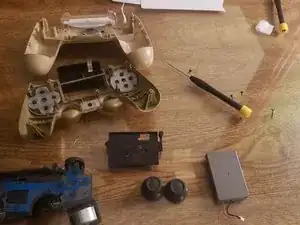

  7. 44eLfH1fukNq2VRK

    • You're finished with your DualShock 4 dissasembly!

Abschluss

To reassemble your device, follow these instructions in reverse order. If there are any issues, please tell me as this is my first guide
