DualShock 4 Ladebuchse Austausch

Geschrieben von: Bijan Vakilifathi
  • Kommentare: 65
DualShock 4 Ladebuchse Austausch

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

25 - 40 Minuten

Einleitung

Diese Anleitung zeigt dir Schritt für Schritt wie du die Ladebuchse eines Dualshock 4 Controllers ausbauen kannst.

  1. IOo6WGYZYXe3FgxC

    • Entferne die vier 6,0 mm PH00 Schrauben, die die hintere Abdeckung am Controller befestigen.

    • Die Schrauben nicht mit Gewalt lösen, da dies die Gewinde dauerhaft beschädigen kann, wodurch die Entfernung unmöglich wird.

    Yo usé un Phillips #000, ya que el #00 quedaba grande y podía dañar el tornillo.

    Adolfo Gomez Toledo -

    A plain #0 works way better for me

    Jennica Tapia -

    I agree with Jennica, it's a #0 screw

    Peeter -

  2. aeEtZOsBKR5JMM2J
    aeEtZOsBKR5JMM2J
    6h5aVGV6O5ssymAd
    dRONJOXRHeSDdpFL

    • Das Gehäuse wird von vier empfindlichen Kunstoffclips zusammen gehalten. In dieser Anleitung siehst du besser, wo sie sind.

    • Die Clips halten die Nahtstellen zusammen. Wennn sie brechen, funktioniert der Controller trotzdem.

    • Beginne am linken Handgriff:

    • Quetsche den linken Handgriff um einen Spalt zu erzeugen.

    • Zwänge ein Öffnungswerkzeug in die Öffnung und schiebe es in Richtung Joystick.

    • Drücke das Werkzeug nach unten bis der Deckel abspringt.

    • Wiederhole das Ganze für den rechten Handgriff.

    Shoulders are where L1/L2/R1/R2 are, not the %#*@ handles. Confusing instructions.

    foxhoundunit89 -

    Quick tip: Be VERY careful at this step not to dislodge the tiny spring attached to the L2/R2 buttons. While removing the cover, it's easy to pull off either L2/R2 button. Inadvertently pulling off either button will also remove the tiny spring as well. While not too difficult to reassemble, it's not obvious where the spring goes as the spring is almost completely hidden along the side of the button (on the inside).

    I just successfully completed analog stick replacements for two controllers. I completed the first repair without any trouble but managed to dislodge (and almost lose) the spring on the second time around. Needless to say, I spent some time trying to figure out where the spring is supposed to go (no photos of this anywhere). By sheer luck, I figured it out on my own. :)

    Good luck and take your time--especially the first time!

    Michael Whang -

    couldn't have posted pics for me? :D

    kimsballs -

    Golden tip but I would add a thing or two.

    Most probably both triggers R1&R2 will stay in lower half of the pad case with springs hanging there.

    You must take them of their lower case sockets before assembly and fit them bellow L1&L2

    When you feel click when fitting them and spring works like on normal assembled pad you're done.

    If thats not the case do not try to assemble lower casing half as triggers will not work properly.

    Simon -

    if you lost the springs unfortunately, the triggers would still work but it is harder to get to the precise digital press. In other words you will have hard time to create a light press than a hard press.

    meaningless -

    My controller broke

    Gary -

    So what I seem to see a lot of sources fail to mention with this model (and promptly break without noticing) are the two plastic tabs attached to the front shell on either side of the headphone jack ; in order to properly pry that section open, all you need to do is lightly push those plastic tabs in, and the section should open up easily. That seems to be one of the main things that prevent people from prying the shell open.

    The updated models have the tabs as well, but aren’t as stubborn considering the bars between the shoulder buttons on those are inside as opposed to being a part of the shell.

    Hope this helps, and feel free to discuss, especially if you’re more familiar with the issue than me.

    Rifter -

    Thank you so much for mentioning exactly where the internal tabs are located, I couldn't for the life of me get into the controller otherwise.

    I found using two thin plastic guitar picks, the kind that bend more freely, worked very well to shimmy into place on either side of the headphone jack and pop the tabs to get the device to open.

    I did break a small piece from one of the teeth on the back half of the shell that inserts into the tabs, but I believe this was accidentally done before I came across your comment and was prying with a spudger willy-nilly.

    Gently wiggling the front half of the shell containing the main portion of the electronics allowed me to release the triggers and open the controller the rest of the way.

    Fizzwidgy -

    Why is this guide about unlatching the plastic clips before forcing the halves apart, completely separate and just linked here? I missed it and now 3/4 of my plastic clips are broken. It should not be a separate guide, it should be in the main guide, it's only a couple pictures!

    retrorocket160 -

  3. 2x5OGtJKny4kfdMq
    2x5OGtJKny4kfdMq
    GLyJDACc4Yel1Vc2
    NnxoILTrl2FnxVDa

    • Zwänge das Öffnungswerkzeug in den Spalt zwischen den Gehäusehälften und drücke ihn nach unten um das Gehäuse in der Nähe folgender Knöpfe zu öffnen:

    • Teilen Knopf

    • Optionen Knopf

    • Nimm die Plastikdeckel auseinander, achte darauf, dass immer noch Flachbandkabel daran hängen.

    • Drei kleinere Teile fallen dabei oft ab. Damit du sie nicht verlierst, musst du für eine aufgeräumte Arbeitsfläche sorgen.

    • Zwei Federn an den Auslösern.

    • ein graue Verlängerung für den Reset Knopf.

    You can't just pull the casing halves apart. There is a plastic bar that is part of the casing and separates the L1 and R1 buttons from the L2 and R2 buttons. To get this loose, pull the casing outward perpendicular to the L and R buttons until you can slide the L2 and R2 buttons from behind the plastic bar.

    dzturbd -

    SO yesterday replaced the thumb stick on my controller, and now the R2 button is stuck, know any way to remedy this?

    ScootsMcgoots -

    I know you put a warning, but I lost the grey reset button extension. Any idea where to get a replacement part?

    miamiman77 -

    Hey, not even sure when you wrote this, but wanted to share my solution for this problem. I lost one of my reset button rubber pieces when I was doing a different repair, and found that a standard bamboo skewer is just about the perfect diameter to function as a replacement. Just cut it to the proper length and you should be able to get it in there and get your reset functionality back.

    tcbrekke -

    You don't really need it. A long paper clip will work fine.

    Ron Smith -

    I've removed and changed all buttons all seemed ok but now the options and share button don't work, as in when I pressed them down there is no longer a click (bounce) I'm certain it's back in the correct place and I don't think they can be put the wrong way up, does anyone have any advice please :)

    Rachel -

    My share button stopped 'clicking'. When I stripped the controller down I noticed a small copper coloured dimple on the motherboard was depressed instead of proud like the one for the options button. With bluetack I was able to pull it out but each time I tested it with my finger it clicked once and stayed depressed. I don't think there is a permanent solution to this as it's probably metal fatigue or similar so i put a tiny bit of blue tack overy the dimple so the plunger could push that bit further and hopefully pull it out each time. Seems to work as I reassemble the controller. Fingers crossed it holds out a while! I'd love to know if someone else had a different solution.

    The5HD -

    I had an extra part, and it wasn’t gray. Thank goodness for the picture of the black one. It’s rubbery. The small end should be inserted down towards the gold colored spot. It’s next to the word RESET on the mobo.

    J Coyote -

    When reassembling: If, like me, your R2/L2 buttons stayed with the bottom of the controller when you took it apart, it will be impossible to reassemble and get the tiny springs back in place.

    To remedy, remove the buttons, and attach them, with the springs correctly placed, to the top of the controller. There are two tiny grooves, one on the button, and one on the controller top, into which the spring fits.

    Jeff Human -

    Jeff, we owe you a six pack for this comment.

    James Goldie -

    Thank You!! The spring came out and I looked for a way to reinsert it. So I led a thread through its opening (so it couldn´t jump away), and compressed it with pliers. So it was easy to put it in.

    VauWeh -

    Jeff, you've been a wonderfully helpful Human. Thanks for the ingenious tip.

    Kris W -

    Thanks man i was struggling there

    Shut-_-Up -

    My controller broke

    Gary -

    Something is stopping me from opening it cause it cut both by splitting tools

    Josuke Higashikata -

    Mine was also really really resistant to being pried open. In the end, i did my best to loosen the entire gap at least once, then inserted along the middle bottom and used more force than i would have been comfortable with. The plastic on the edges is slightly shot now and it’s not as smooth a grip-feeling anymore, but it came apart fine and I didn’t break anything important. There is just a lot of surface for a friction fit like this and the joysticks keep pulling it back down, which in combination makes it really resilliant. In my case it also was exuberated by a minor soda spill along the right handle which ‘glued’ it together, and i imagine that can also happen just with use and ‘hand cheese’, especially on the outer edges. There is a lot of surface area to stick together there.

    Seleen Shadowpaw -

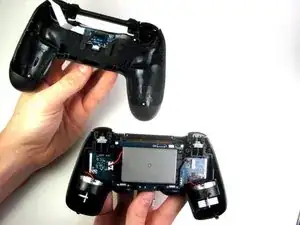

  4. l1NjiVI3ebQWXt3K
    l1NjiVI3ebQWXt3K
    WKckxMJO1nPHlY2k
    lUxAjyOnMwlYSULH

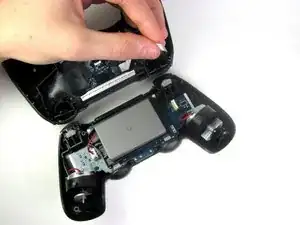

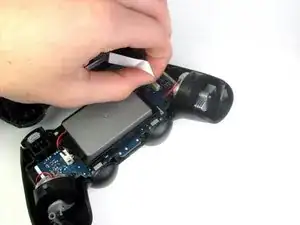

    • Löse die Flachbandkabel von beiden Hälften des Controllers zur Hauptplatine mit den Fingern.

    • Nachdem du sie getrennt hast lege das Oberteil zur Seite.

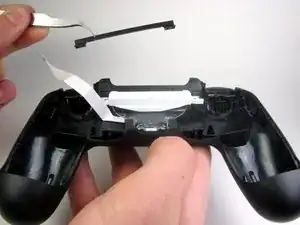

  5. WR1U12pIZRxHHqEE
    WR1U12pIZRxHHqEE
    1jEDFcjBnU3nVWhr
    Zy1xnBs5EgqpFTMe

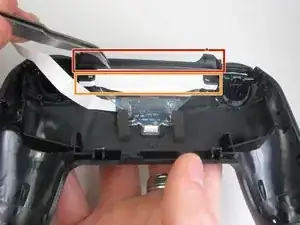

    • Löse die beiden Schrauben die die Untereinheit befestigen. Hole dann mit einer stumpfen Pinzette die schwarze 6 cm Plastikverbindung heraus, im Foto rot markiert.

    • Hole genauso das weiße 6 cm Plastikteil heraus, im Foto orange markiert.

    This is quite different in the latest (JDM-030) versions of the controller. The sub-assembly now clips in, there are no screws, and the black plastic connector is completely absent. The circuit board is also clipped in, no screws.

    marcusharvey -

    I have the clipped in version as well. To remove the white peice simply pry up on the right side of it and then slide it out to your right.

    Dylan Lucas -

  6. YjDFADSrHjr6lc5N
    YjDFADSrHjr6lc5N
    GwsFaXnTcZHiiQuR
    2Lp2bOLhlWBFROvF

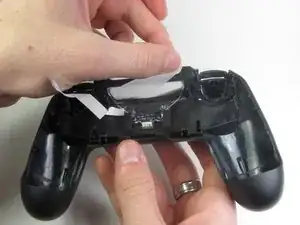

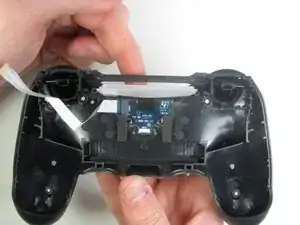

    • Drücke das durchsichtige weiße Plastikfenster nach innen und nimm es vom oberen Rand des Controllers weg.

    • Lasse das durchsichtige Plastikteil im Controller drin, schiebe es nur soweit zur Seite um Platz für den Austausch der Ladebuchse zu haben.

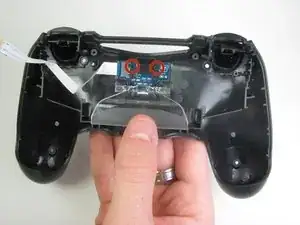

    • Drehe die beiden 4 mm PH00 Schrauben heraus, die die Ladebuchse an der unteren Gehäusehälfte befestigen.

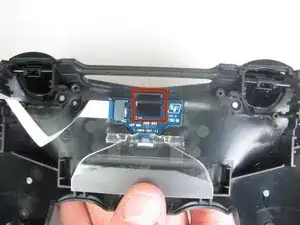

  7. LcPLdNKIeCd4fh4x
    LcPLdNKIeCd4fh4x
    YPWZJJBJLRLCIwQM
    nLO54LhRaytWOSDa

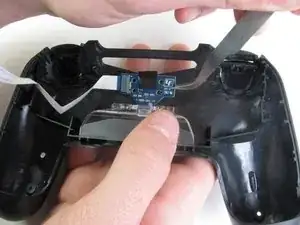

    • Löse das obere Ende des schwarzen Bandes mit der stumpfen Pinzette. Es verbindet die Ladebuchse mit dem Plastikteil des Controllers.

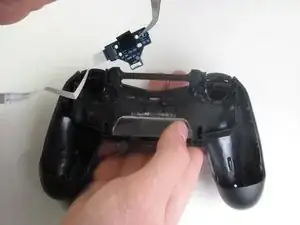

    • Fasse die Platine der Ladebuchse seitlich an und hebe sie langsam hoch, löse sie dabei vom Controller.

    • Ziehe die Platine nicht schnell und ruckartig hoch, bewege das Teil stattdessen hin und her um Platz zwischen Controller und Platine zu schaffen.

    I have tryed all of this , changed chargers 7× , changed the charging port & still nothing , do you know why & how could I fix it plz , wey thats if its possible lol but tbf I think its going two be best I buy a second hand pad of ebay or go get another original 1 from shop #Sick #HoleInPocketOnesAgain

    Adam Robson -

    I put in a USB charger PS4 is not charging I don't know why

    Tariq -

    I don’t understand the last warning skin step.

    Salfi H -

    Would be helpful if you explained which way the ribbon cable goes when inserted back into both boards.

    Bet Nimrod -

Abschluss

Um dein Gerät wieder zusammen zu setzen folge den Schritten in umgekehrter Reihenfolge.
