Einleitung

Part # INR18650-13P

  1. YTYH3mlZf13PZCQv
    YTYH3mlZf13PZCQv
    6vODtIXvgXV5JGlS
    oxRHtmOYlOIapNIl

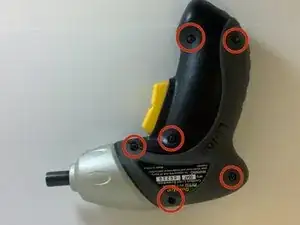

    • Remove the six 13mm case screws with a #0 phillips screwdriver.

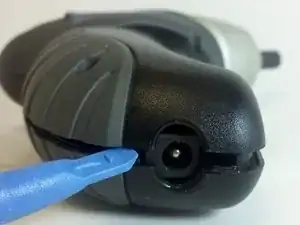

    • Separate the screwdriver housing with a plastic opening tool.

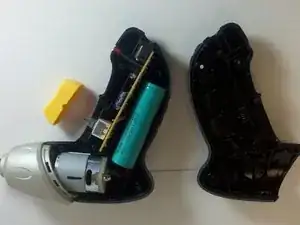

    • Remove battery casing half to expose screwdriver internals.

  2. lvjmjLUF51SVgUFT
    lvjmjLUF51SVgUFT
    dSAPPGjsRbpRTMDD

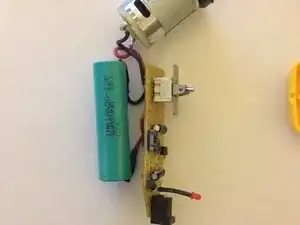

    • Locate battery

    • Remove battery, printed circuit board, LED, and motor assembly from screwdriver casing.

  3. 1BXcpegevvBuSNsU

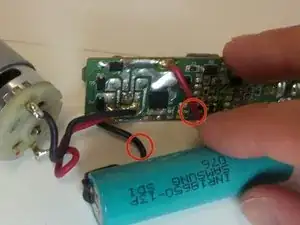

    • Using side cutters, cut the red and black wires connecting the battery to the printed circuit board just after the shrink wrap tubing.

    • Strip the ends of the wires attached to the printed circuit board 1/4 inch above the ends of the cut wires.

    • Solder the new battery to the stripped wires attached to the printed circuit board.

    • Wrap the newly soldered connections with electrical tape.

Abschluss

To reassemble your device, follow these instructions in reverse order.
