Durofix RV332 Bit Chuck Replacement

Geschrieben von: Tyler Vincent
  • Kommentare: 0
Durofix RV332 Bit Chuck Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

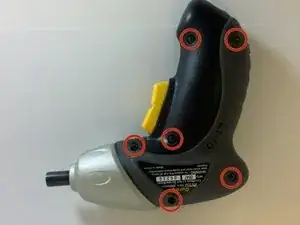

  1. qFBUI5RBtgqdaNmV

    • Remove the six 13 mm casing screws with the #0 Phillips screwdriver.

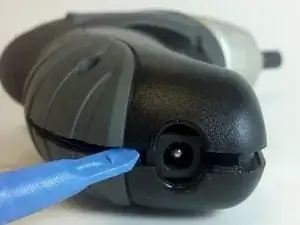

  2. fXQSHiOSLXA1L3PU
    fXQSHiOSLXA1L3PU

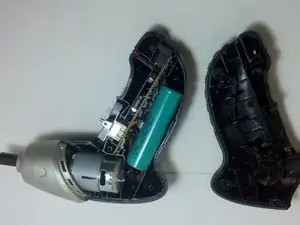

    LugkUVPJI5QEdCXD

    • Separate the screwdriver casing halves with the plastic opening tool.

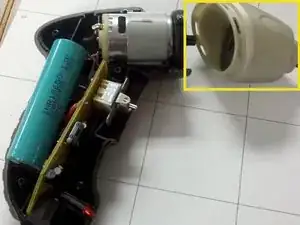

  3. IwvtnQEZBveonWIU

    • Slide the bit chuck assembly out from the casing half.

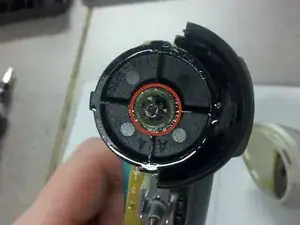

  4. wFoFM12BkeycSRTj

    • Apply a dab of grease to the end of the drill motor coupler.

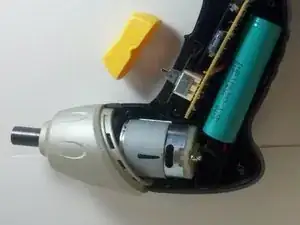

  5. bnQHrjFDygNltPBr

    • Insert new bit chuck assembly into the drill casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
