Einleitung

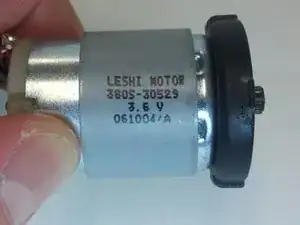

Part# 3805-30529
-
-

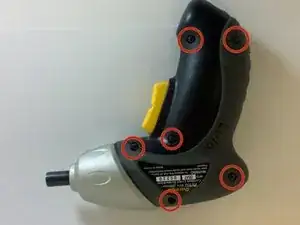

Use the plastic separating tool to separate the casing halves of the cordless screwdriver.
-
-
-

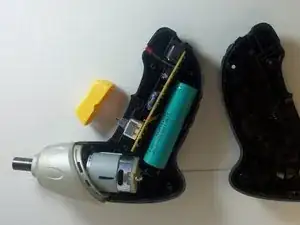

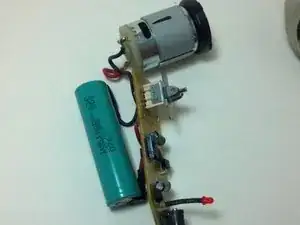

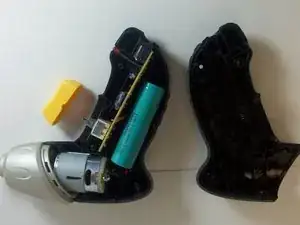

Once the screwdriver casings have been separated, remove the printed circuit board, battery, LED, and motor assembly from the screwdriver casing.
-

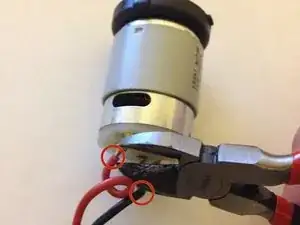

Using the wire cutters, cut the black and red motor wires where they connect to the motor.
-
-
-

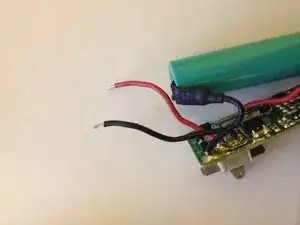

Strip the ends of the wires clean with the wire cutters. Strip the wire insulation 1/4" from the end of the wire.
-
-
-
Ensure the new motor terminals are clean before soldering.
-

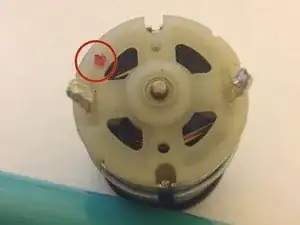

Solder the red wire to the positive motor terminal, designated by a plus sign with a red circle around it.
-

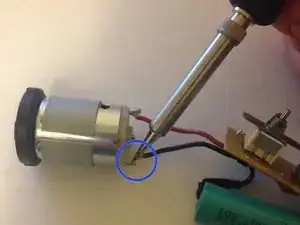

Solder the black wire to the other terminal of the motor.
-
-
-
Once the motor has cooled, replace the motor, printed circuit board, LED, and battery inside the screwdriver casing.
-
To reassemble your device, follow these instructions in reverse order.
Ein Kommentar
Too late finding this (although self-explanatory). I was wondering when I tried this - WHERE does one find the spare component motor to replace? I searched the internet, but for something so specific, I just couldn't locate the right channels. For future reference, is there a typical store of small motors, etc... to locate these things?
