Dynex DX-WBRDVD1 Motherboard Replacement

Geschrieben von: Harrison Williams
  • Kommentare: 0
Dynex DX-WBRDVD1 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

1 Stunde

Einleitung

The motherboard is found below the WiFi antenna inside the device. This guide will take you through the steps of removing the motherboard for replacement.

  1. IGF5LNU6eXfW2v5f
    IGF5LNU6eXfW2v5f
    J4GOPGxQMKnm1IWU

    • Remove the four 5mm Phillips #1 screws that connect the black outer shell to the silver back of the device.

  2. ZTcpZSHGEmCOJqZE

    • Remove the two 5mm screws on the left and right side panels.

    • There is one screw on each side that secures the cover to the body of the device.

  3. SyRXUdFC4Kxj6QFb

    • Lift the black cover to a 45 degree angle from the rear of the device and pull the cover away entirely.

    • Check that the power cord is not preventing the device from opening or closing.

  4. PmRxhpAMJGcv2SRn
    PmRxhpAMJGcv2SRn
    NudLoF6hhADsNXnS
    kCkoEWMNd2MOctA3

    • Use the metal spudger to remove the white clip from the antenna by prying the clip away from the antenna.

    • Use a pointed tool and press down on the indents on both sides of the clip to loosen.

  5. hTWrUCu3djTTXBcy

    • Remove the two 7mm screws from both sides of the antenna.

  6. rHKlHd4pFulSERZx
    rHKlHd4pFulSERZx
    I5iLA4qpMrKyqMBB

    • Slide the antenna inwards and gently remove.

  7. OJDtMFMsy2lRRBKv

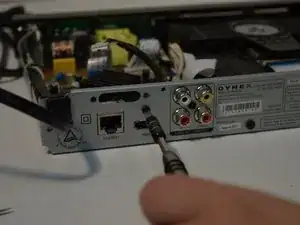

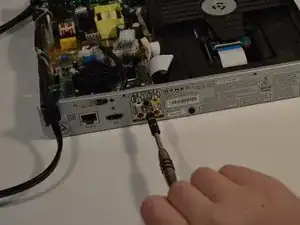

    • After removing the antenna, remove the hdmi screw (5mm)

    • Fine threaded

  8. b3eOXHCUBTpVvqHP

    • Remove component screw (7mm)

    • Corse thread

  9. HnYEXgR53ZwjwnqZ

    • Lift power cord and move to the side

  10. dRMFVr4sZCWOZEkf
    dRMFVr4sZCWOZEkf
    gQbnteSYqhtYydrM

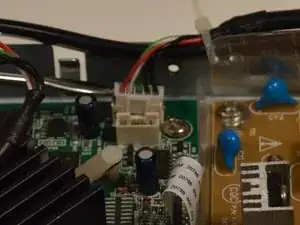

    • Remove the white clip with colored wires from mother board.

    • Use a pointed tool and press in on the sides of the clip to release.

  11. ar1WhElhQHJS5xln
    ar1WhElhQHJS5xln
    HJbnRDMPGtUgkbbo
    R1MqeJWBU6ELXhAX

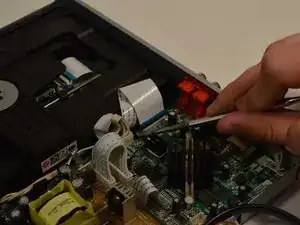

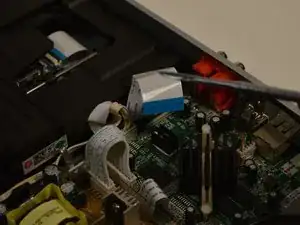

    • Lift up and out to remove the large white plastic wiring strip. Lift lightly on the back clip holding it to loosen.

  12. UL2haWlPMo2bEQhr
    UL2haWlPMo2bEQhr
    FlTxbiFRcljbJbqD

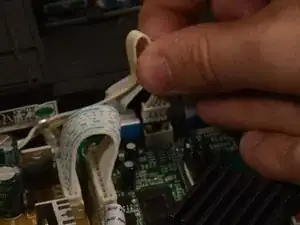

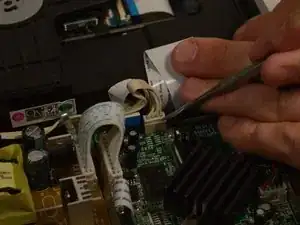

    • Remove the power connection to the motherboard small white clip with 4 white wires coming out.

    • Press sides and pull up the edges with sharp tool

  13. po3wbDDuendqYWHd
    po3wbDDuendqYWHd
    f1kYZomdKVKvWNSd

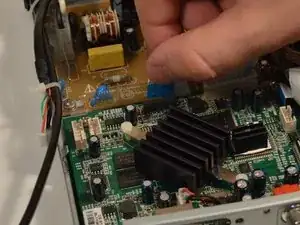

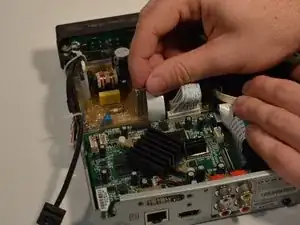

    • Pull the 1cm white tab straight up and out.

    • The side with exposed wires points towards the face plate.

  14. ibf3e15JOtDYnQqn
    ibf3e15JOtDYnQqn
    PAj4fn3Op1DSnINq

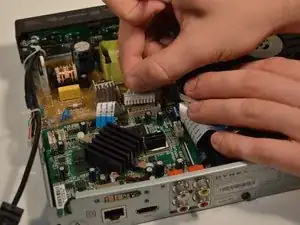

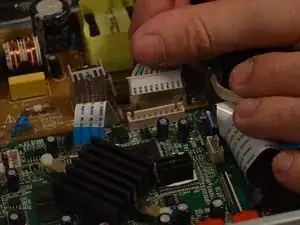

    • Pull the larger white 9 pin power cord that connects the power board to the motherboard.

  15. CInMTismSKQQbNd3
    CInMTismSKQQbNd3
    nbJbMRSCT1wen2r5
    iGpyvrHW4aMC3BOC

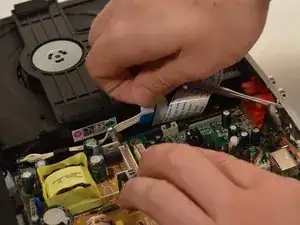

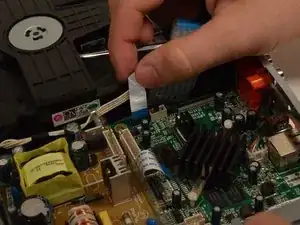

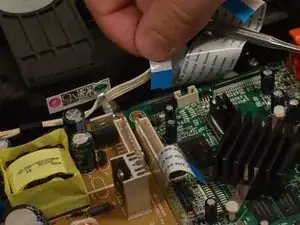

    • Pull the second white 1cm wide tab between the motherboard and power supply board.

    • The side with exposed wires points towards the disc drive.

  16. 2NFZ2FUJLkugFZQm
    2NFZ2FUJLkugFZQm
    XQsLAyFs6TRRXtij

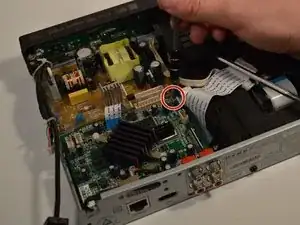

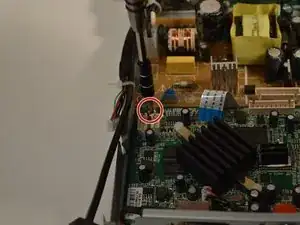

    • Remove the two 5mm screws that connect the mother board to the device.

  17. VIyHlb1U6ibNG5VZ
    VIyHlb1U6ibNG5VZ
    OWXNBdBcFIWtfoFE
    4oOBKNX2NbQkAecg

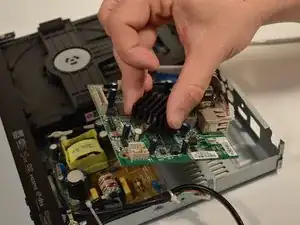

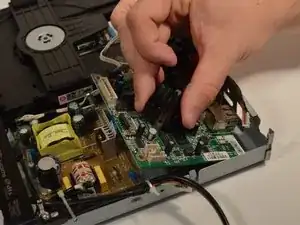

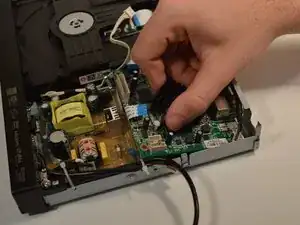

    • Slide board up and out at a slight angle

Abschluss

To reassemble your device, follow these instructions in reverse order.
