Dyson DC39 Origin Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

6 - 10 Minuten

Einleitung

This guide shows how to remove the inlet hose of the Dyson DC39 Origin. This process requires removing the bin and separating the steering assembly from the main body of the device.

  1. ybue1JbUKJYIcNmZ
    ybue1JbUKJYIcNmZ

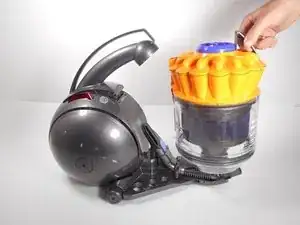

    EcWjK3tAMgOkoaud
    1K5Ki5o5BCyRWpQy

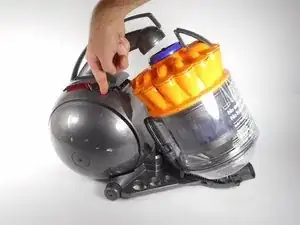

    • Push down on the gray button located next to the power button to release the bin from the ball housing.

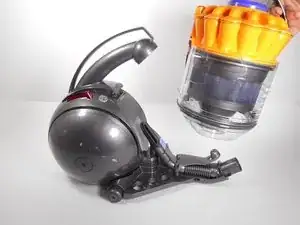

    • Pull the bin away, then up from the ball housing to remove it.

    • If the bin won't fit back into place during re-assembly, you may need to push the grey button again.

  2. aopq3U3TsYjgAGIp

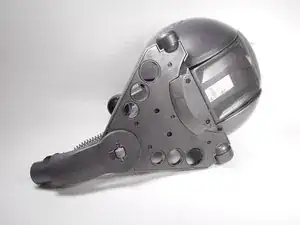

    aopq3U3TsYjgAGIp
    NgkB5wAi6sbVfIPu

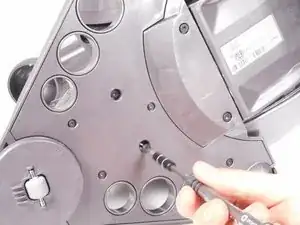

    IFFQDJeTLmMYuRrL

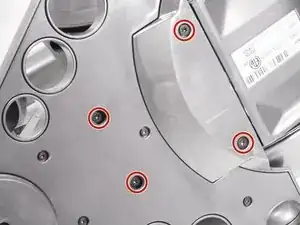

    • Place the ball housing on its side and orient it so that the underside of the steering assembly is facing you.

    • Remove the four 18.0 mm Torx 15 screws.

  3. rOeNIc1YQQXXRTjS

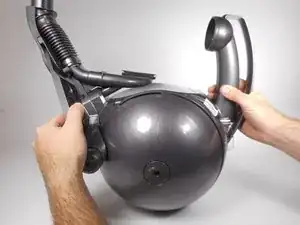

    rOeNIc1YQQXXRTjS

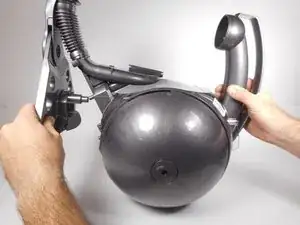

    FqVGpnZcVOrCYgIb
    DFAxJ5KeEvfLCFEC

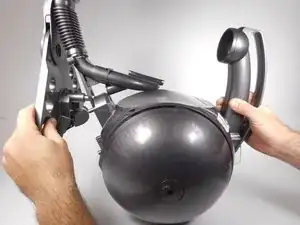

    • Using two hands, hold the ball housing with the handle in one hand and the steering assembly base in the other.

    • Hold the steering assembly base near one of the wheels.

    • Pull the steering assembly base directly away from the ball housing. You should notice a pin release.

    • Push up on the steering assembly to remove it completely from the ball housing.

    • During reassembly, slide the steering assembly in first, then push the pin back into its locking position.

  4. bDiLRPluQGDbEsnA

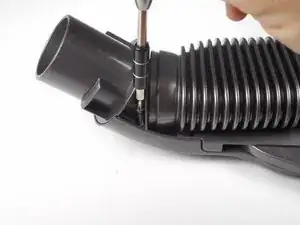

    bDiLRPluQGDbEsnA
    mPnqraCrp6PKYZY6

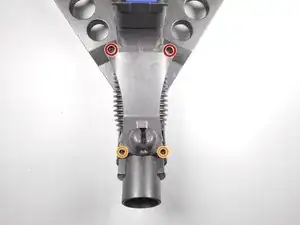

    • Remove the two 17.8 mm Phillips #2 screws located in the top of the inlet hose bracket.

    • Remove the two 13.7 mm Torx 8 screws located at the opposite end of the inlet hose.

    • The Torx 8 screws are located at an odd angle. Be sure the screwdriver is secure to prevent stripping the screws.

  5. OCwkw3q43qNPEOFY

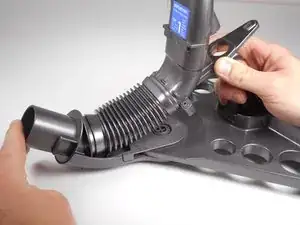

    OCwkw3q43qNPEOFY

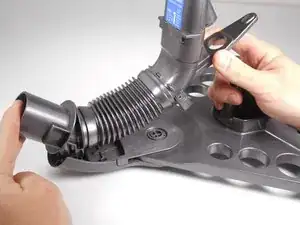

    iruYPJkhiM6I6bAf

    • Pull the inlet hose straight up from the steering assembly.

    • The inlet hose 'snaps' out of its position, so you may have to apply a little extra force while pulling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
