Dyson DC56 Motor Replacement

Geschrieben von: John Czerkawski

Kommentare: 2

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

The motor is the most important part of the DC56. If the vacuum stops working completely you could need to replace the motor.

Werkzeuge

Schritt 1

Make sure the vacuum is unplugged from charger.
Warning: Avoid pressing red trigger because the vacuum will turn on the device and begin suction.

Schritt 2

Locate the purple button at the top of the device.

Schritt 3

Separate the device with the purple button.

Schritt 4

Take out the filter.

Schritt 5

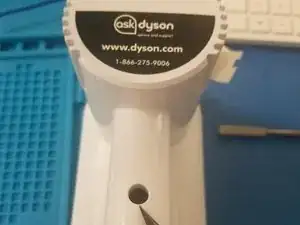

Locate and remove the 10mm Phillips head screw using a Phillips #1 screw driver.

You also have to remove the screw at the top on the back where the motor is. Otherwise, the battery will not come out!

Mayme Kittman - 30/12/19

Schritt 6

Locate and remove #000 25mm phillips screw on the reverse side of the vacuum

Schritt 7

Pull the battery pack down and away from the main body and remove it from the device.

Schritt 8

Take out the 10mm screw using a Phillips #1 screwdriver.

Schritt 9

Use a spudger to separate the back plate covering the motor.
Be careful when trying to remove the motor with a metal spudger. Be sure your battery is removed before trying to fully remove the motor.

That’s impossible for me. As much force as two hands on the tool still won’t crack that seal…looking at that picture with a thumb and finger’s amount of pressure makes me think that you are Superman.

Michael Barreto - 02/06/20
