This guide will show you how to replace the motor in your Dyson Supersonic HD01. The motor on your hairdryer may need to be replaced if it has taken damage, and other options to fix your hairdryer have not proven successful.
- Caution: when working with switches and other fragile components, make sure to be gentle and not forceful in removing and inserting parts and electronics.
- Reminder: Upon reassembling, a new adhesive will have to be reapplied for the buttons to be replaced onto the dryer.
-
-
Find the red dot along the top of the filter cover.
-

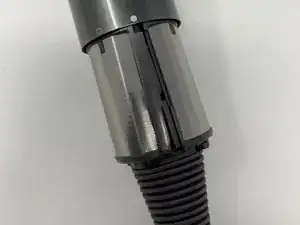

Twist the filter cover counter-clockwise until the red dot is shifted to align with the white open circle on the dryer handle.
-
-
-

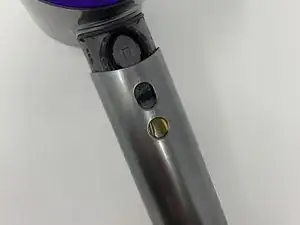

Heat the iOpener in the microwave for 30 seconds and apply it immediately to the top of the buttons.
-
Leave the iOpener in place for a couple minutes.
-
-
-

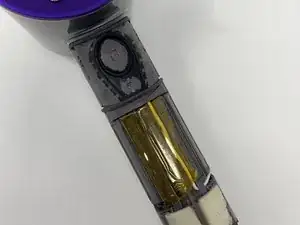

Remove the inner cover from the hair dryer by pulling each end apart to slide down the cover.
-
-
-

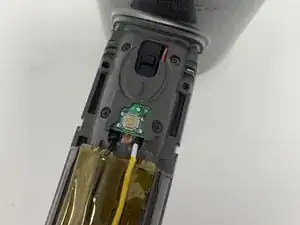

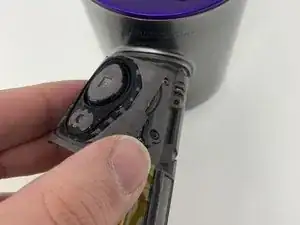

Pop off the front panel of the hair dryer.
-
Flip the hair dryer 180 degrees to the back panel.
-

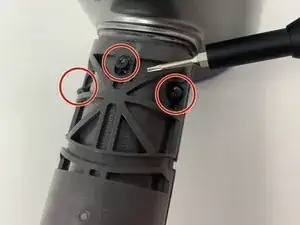

Remove the three 10 mm screws located on the back of the hair dryer using a T3 Torx screwdriver.
-
-
-
Flip the hair dryer back to the front panel.
-

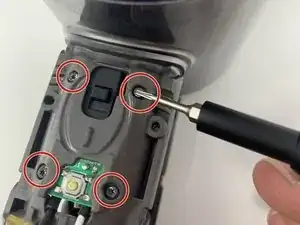

Remove the four 10 mm screws on the front using a T4 Torx screwdriver.
-

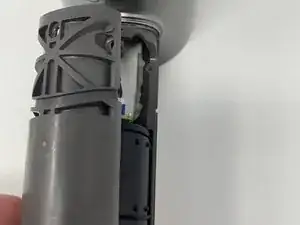

Remove the back cover of the hair dryer.
-
-
-

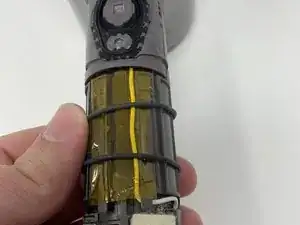

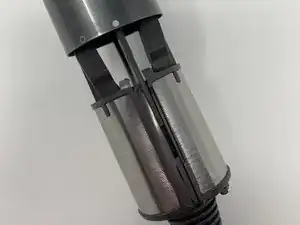

Slide down the cover of the motor.
-

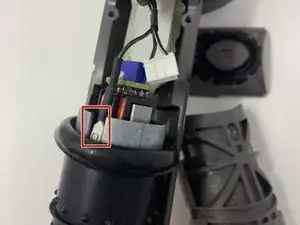

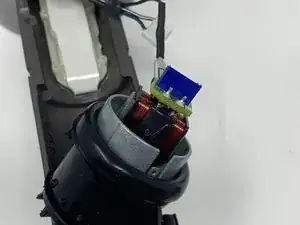

Disconnect the switch on the metal circular area towards the center of the motor.
-
-
-

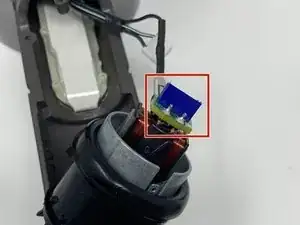

Disconnect the switch located in the center area of the motor.
-

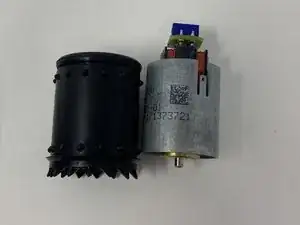

Slide off the black sheath on the motor.
-
To reassemble your device, follow these instructions in reverse order.
