Dyson V6 Motorhead Brush Bar Replacement

Geschrieben von: Addie Hedge
  • Kommentare: 4
Dyson V6 Motorhead Brush Bar Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

1 Minute

Einleitung

Brushbar replacement, the brushbar may need frequent cleaning removing hair or other debris wrapped around the brush. After long use the bar may need replacement.

  1. G4Ub36fkXX4Yl6WM

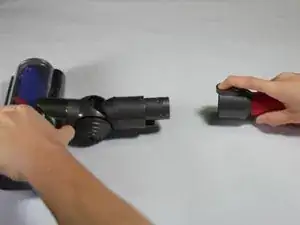

    • Press the button to disconnect the vacuum head from the connecting pole.

  2. AL2fQR1vEDojMuxV

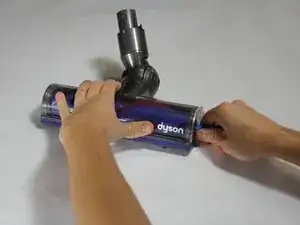

    • Turn the end cap counterclockwise using the iFixit Opening Tool.

    • If you do not have an iFixit Opening Tool, a quarter may be used instead.

  3. hBJOQGKcmWnBGeOn
    hBJOQGKcmWnBGeOn
    ZNNRW3eAZNyPJXdI
    Y21YurjytaVXXfr4

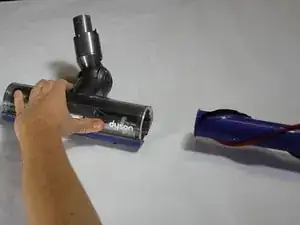

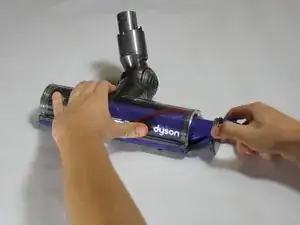

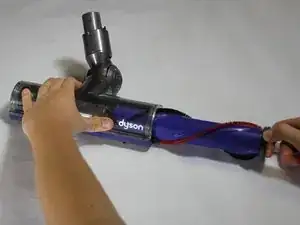

    • Pull the brush bar out of the housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Addie Hedge

Mitglied seit: 25/01/17

695 Reputation

4 Kommentare

Not so fast, there are teeth on the lower roll insert that can interfere with teeth on the housing. Is there a purpose for these teeth, maybe manufacturing mold release? My brush roll will not turn when re-installed. It installs easily, powers up, spins about 4 or 5 revolutions, then shuts off power for a second, then comes back on without the roller spinning at all. I can see it is the teeth interlocking but don’t know how it makes the first 4 or 5 revs. Very strange indeed!!

dooleyew -

I have the same problem, where the teeth seem to be engaging and stopping the revolutions. Any fix for this?

Dave Duddleston -

I have the same problem and I never signed up for the warranty.

Donna Sweeney -

My motorhead works intermittely. I took it apart and cleaned everything to no avail. The guy at Starks vacuum in Sherwood OR said it was plugged and he would take it apart and clean it for $100. Hmmmm, what can he clean that I can’t?

Roger and Karen Risch -
