Dyson V6 Motorhead Motor Replacement

Geschrieben von: Addie Hedge
  • Kommentare: 3
Dyson V6 Motorhead Motor Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 Minuten

Einleitung

Require battery removal, which is not included due to device not having a battery. Connection tubing will need to be removed before motor replacement.

Werkzeuge

  1. HgkQP3VokoUX3YBi
    HgkQP3VokoUX3YBi
    QIxKHKebplpBsBSX

    • Pull down on the red release tab.

    • When the tab is fully engaged, the bottom of the bin should open.

  2. 2NqQqp5yDZ1ZHGY2
    2NqQqp5yDZ1ZHGY2
    RKy5YUXnxCPsrAiu

    • Pull down on the release tab a second time, this time the collection bin should release from the upper vacuum head.

  3. STsDeN45LNI5Ad1v
    STsDeN45LNI5Ad1v
    TYYRbYsCcE2agHgZ
    bxhvyUjwFiPIJCZQ

    • Pull the collection bin away from the upper vacuum head.

  4. OKEZHQAxQWKs1yDS

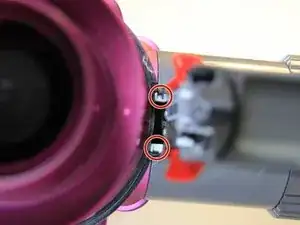

    • Identify the two white components between the vacuum handle and the attached component.

  5. fYSqSWF2GJN62ML5
    fYSqSWF2GJN62ML5
    SZi6mXDOQfKPJbsr

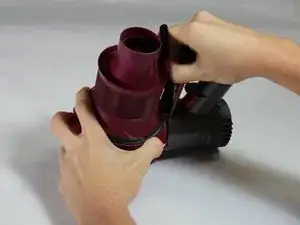

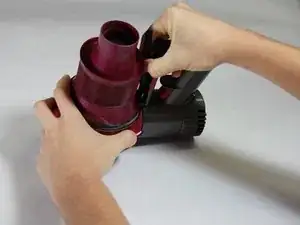

    • Insert each arm of the tweezer into each white component area and squeeze simultaneously to release the motor from the attached component.

    THis step is not easy! Squeezing the white parts together does release that side of the motor but the other side just will not come out!!

    David Hill -

  6. HHAlovZkbjWOxgOD
    HHAlovZkbjWOxgOD
    k11ZEUQBNBemDmfE

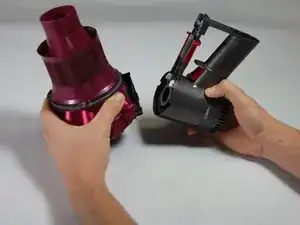

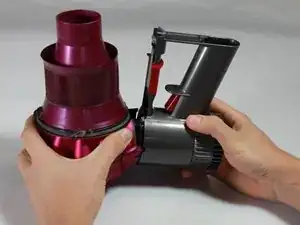

    • Detach the motor from the remaining motor head assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
