Dyson V6 Motorhead Upper Housing and Brush Bar Housing Replacement

Geschrieben von: Addie Hedge
  • Kommentare: 7
Dyson V6 Motorhead Upper Housing and Brush Bar Housing Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

5 Minuten

Einleitung

Connection tube and brushbar will need to be removed before replacement. Housing for the brushbar may be damaged and break overtime.

  1. G4Ub36fkXX4Yl6WM

    • Press the button to disconnect the vacuum head from the connecting pole.

  2. AL2fQR1vEDojMuxV

    • Turn the end cap counterclockwise using the iFixit Opening Tool.

    • If you do not have an iFixit Opening Tool, a quarter may be used instead.

  3. hBJOQGKcmWnBGeOn
    hBJOQGKcmWnBGeOn
    ZNNRW3eAZNyPJXdI
    Y21YurjytaVXXfr4

    • Pull the brush bar out of the housing.

  4. BcwbJkdHZ66OsIJk
    BcwbJkdHZ66OsIJk
    jltjXbpHF6WU2cVV

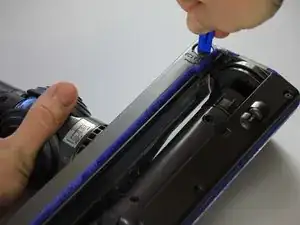

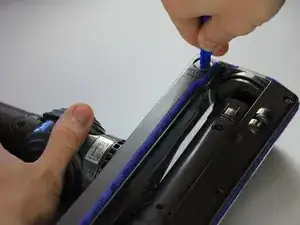

    • Turn the padlock key counterclockwise using the iFixit Opening Tool.

    • If you do not have an iFixit Opening Tool, a quarter may be used instead.

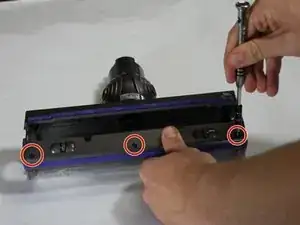

  5. gYy5ZdSQwuFMujpN

    • Unscrew the three front 1.4 cm torx screws using the T8 Torx screwdriver.

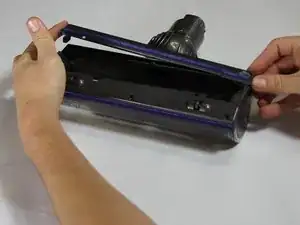

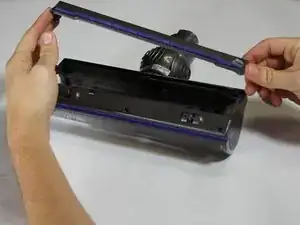

  6. kYQohvGFUfGtB4k1
    kYQohvGFUfGtB4k1
    34vU2D6BNVkqXuIg

    • Remove the upper plate once the padlock is unlocked.

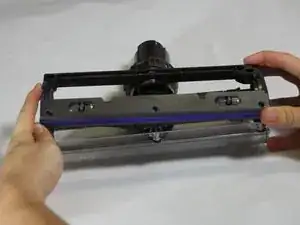

  7. lLMUZ6rHYBP5sK26
    lLMUZ6rHYBP5sK26
    yOjWaXHMPDMT6IRx
    ddUYd5aWVCKgc2XP

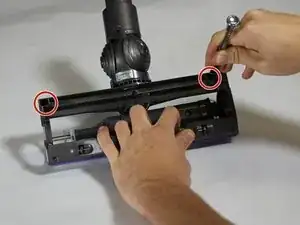

    • Unscrew the top two corner 1.4 cm torx screws using the iFixit T8 Torx screwdriver.

    • Remove axie and roller after the screws are taken out.

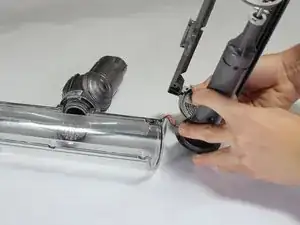

  8. NNxtex3CFvsmc4FP

    • Remove the drive assembly from vacuum housing.

    • Red wire connecting the drive assembly to housing.

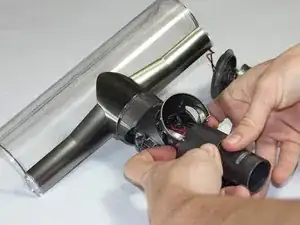

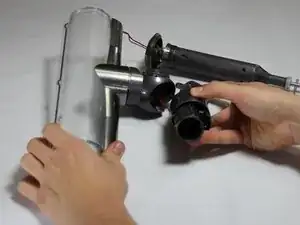

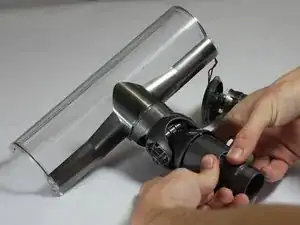

  9. yE6UMUpJUFlQiVKg
    yE6UMUpJUFlQiVKg
    bTpZT3SdIWBZiHqJ
    XcY2TBwovdL3SCsG

    • Pop off the circular plating to remove the housing from the connection piece.

    • Red wire connects through the upper portion of the housing.

    Does anyone know how the wiring loom fits between the grey bit and the clear bit? I took mine apart when cleaning, but cannot figure out how that loom fits; especially the tiny black locating lug. I should have taken photos…

    Barry Faith -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Addie Hedge

Mitglied seit: 25/01/17

695 Reputation

6 Kommentare

can the direct drive motor unit be replaced rather than replacing the whole motor head. If so where can the motor be purchased from - I’ve internet searched without success!

Mikey -

I am in the same boat, any luck finding just the direct drive motor ?

jerryd -

You can try ebay.

Joe -

Took mine apart and i was certain it was the motor. Removed the drive belt and the motor turned freely. Discovered that the brush pulley was stiff and jammed. Freed it up with wd40 and worked the pulley until it loosened right up. Placed the belt back and now works perfectly. Maybe try this before presuming the motor is burnt out? Just a thought. Cheers!

Paul Stewart -

I’ve disassembled and see the black wire is broken! Has anyone done this?

lawrence -

How do you open the direct drive motor unit once it has been removed from its housing in the last step?

Jay -
