Dyson V8 Animal Battery Replacement

Geschrieben von: AJ McLean-Scholz
  • Kommentare: 2
Dyson V8 Animal Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

2 - 5 Minuten

Einleitung

If your Dyson V8 Animal’s battery fails to charge or turn the vacuum on, use this guide to replace the battery. The battery is used to power the vacuum. A broken or worn-out battery may fail to turn the vacuum on or charge.

Before using this guide check that your battery does not just need to be charged and refer to The Devices LED Flashes troubleshooting page for more information on troubleshooting your battery.

No special skills are required for this guide.

Before beginning, make sure to turn off the vacuum and disconnect it from any external power source.

  1. Dg6QVpyGAyubGoLf
    Dg6QVpyGAyubGoLf
    lEqWPPPV4EkQftRX

    • Push the red button and slide the connecting shaft off.

    • The shaft must be held from moving when disconnecting from the motor.

  2. 2QMNMHT2FgGPvUi5
    2QMNMHT2FgGPvUi5
    ZfC4cisdeyC3XCQ2
    3mnYOKcIHVi24nVO

    • Pull up on the red tab and continue to slide the motor completely up.

    • The dust bin will open on the bottom.

  3. QXtySgwnMJQPrxEs
    QXtySgwnMJQPrxEs
    MMDsdpoQUSiwasZP

    • Push the red tab down.

    • Pull the dust bin out from the handle head.

  4. tAyZIcdsrmLaNfcH
    tAyZIcdsrmLaNfcH
    kBLHDPSiGFKhPX3g

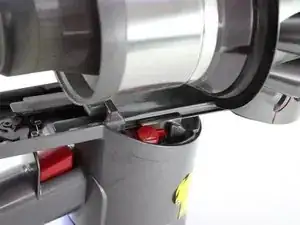

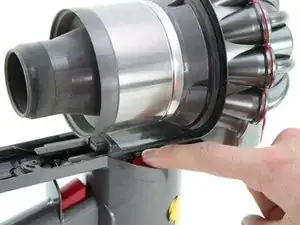

    • Push down on the red tab.

  5. KrwUwLyfhgcbRuO1
    KrwUwLyfhgcbRuO1
    1PYeVTrOIscGUDa1

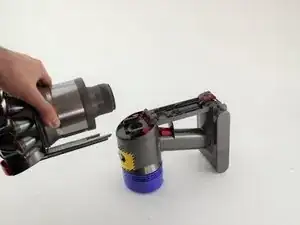

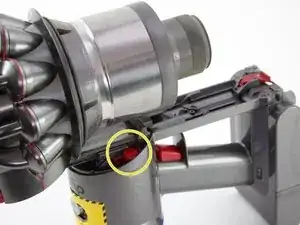

    • Push down on the red tab on the other side.

    • Pull the motor away from the handle.

    • You may need to hold down the handle while sliding the motor off.

  6. jSZMA14sZWS5niv3
    jSZMA14sZWS5niv3
    mb6pSUfm5F6IZk2y

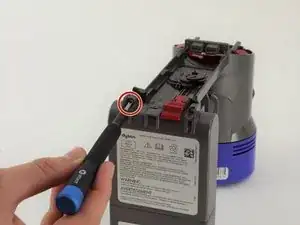

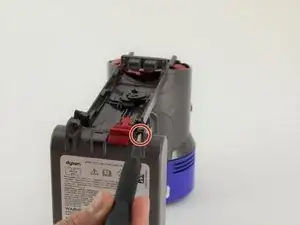

    • Use a Phillips #0 screwdriver to remove two 18 mm screws on the bottom of the battery.

  7. YYsHKSLQAUarFfD1

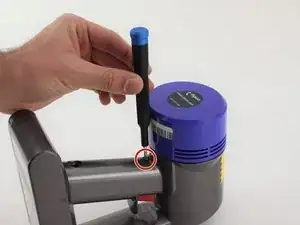

    • Use a Phillips #0 screwdriver to remove one 18 mm screw on the back of the handle.

  8. FXEWTNhHorvSnwL5
    FXEWTNhHorvSnwL5
    TJJbBLZhSDgh6U5C

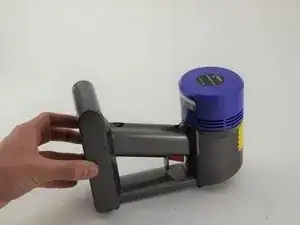

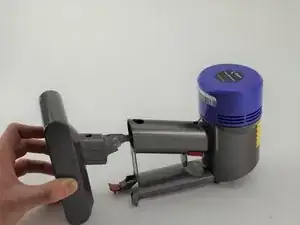

    • Slide the battery out from handle.

    • The handle must be held from moving while sliding the battery out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
