EBB Can Board Replacement

Geschrieben von: Kyle Davis
  • Kommentare: 0
EBB Can Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. uDHNHklACGdcKLW2

    • Tool board mount is mounted to the Turbiner, before mounting the EBB tool board to the EBB36 PCB Mount.

    • M3x8 SHCS

    • Clear Nylon washer

    • EBB36 PCB

    • M3 spacer

    • EBB PCB mount

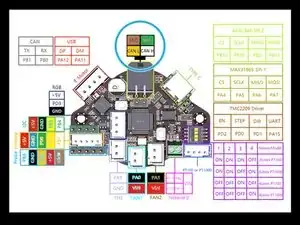

  2. 3y2JIEAfVXVINBjw

    • Molex Microfit 3.0 2x2 connector.

    • If your system was working / you are replacing toolboard, this cable needs no modifications.

    • Brown wire-Ground

    • Green wire-Vcc

    • White wire CAN H

    • Yellow wire CAN L

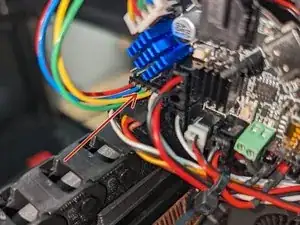

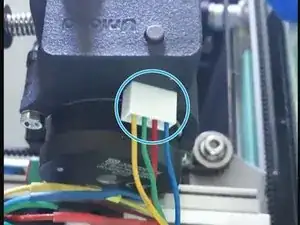

  3. U4eJ1qWCwtjckw4I
    U4eJ1qWCwtjckw4I
    t21MG3yQpilYXGKC
    PGGR3h3LRJXoQ3UZ

    • Make sure the sensor cable is plugged into LDO Runout Sensor

    • Plug runout cable from the runout sensor into the port on the EBB PCB.

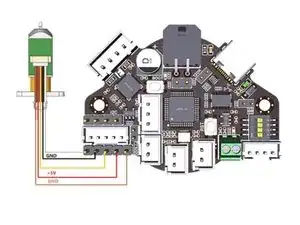

  4. nDvXQ6lpOFbOnRPn

    • Plugin in the 5 pin BL Touch connector

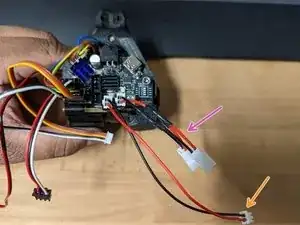

  5. DylxUteMPGoxeLWg
    DylxUteMPGoxeLWg
    jmBIOTlOroWgbhGJ

    • Hotend Fan – Heat sink fan and Extruder motor fan plug into fan splitter PCB

    • Cooling Part Fan – Both fans plug into y splitter

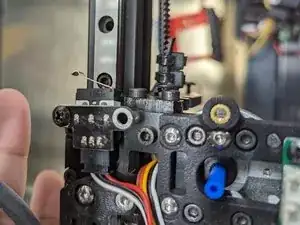

  6. 1xpabAKfimPcrdSZ
    1xpabAKfimPcrdSZ
    ulgxkn1P2cUN5vM1

    • 4 pin endstop cable

    • Connector has an open port to help prevent plugging in backwards. The open port is indicated with a / .

    • Ignoring this and plugging in backwards will cause damage to your 3D Printer!

    • 5v

    • Ground

    • The Signal Wire will be yellow OR white varies and is not important.

  7. nyFjOXaUgY1vCvn2

    • Loosen both screw terminals fully, then insert one wire at a time, fully tightening while holding the wire in place.

    • A proper flat blade screwdriver is required. 2mm x .4 works well.

    • Connect Thermistor connector to TH0 port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
