Follow this guide to remove and replace the on/off switch on an EDCO Floor Stripper TS8 .75L (2017).
Werkzeuge
Ersatzteile
-
-
Ensure the machine is unplugged.
-

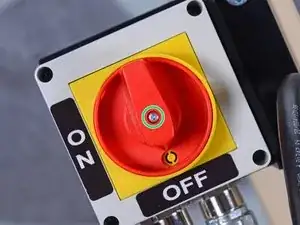

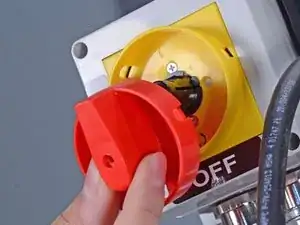

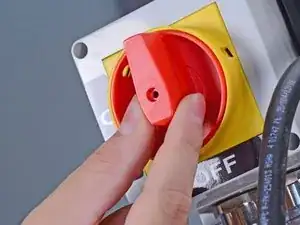

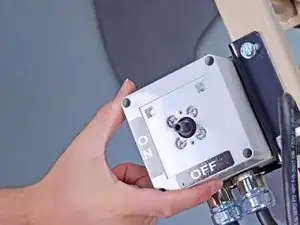

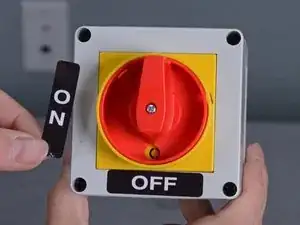

Turn the power switch counterclockwise into the OFF position.
-
-
-

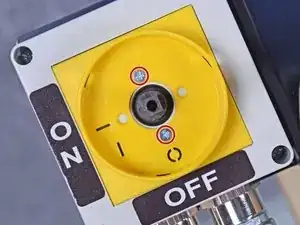

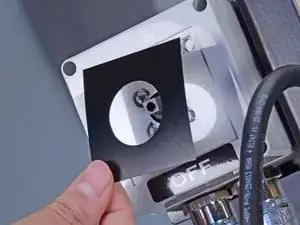

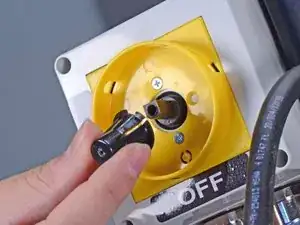

Use a Phillips screwdriver to remove the two screws securing the yellow switch guide to the switch assembly.
-
-
-

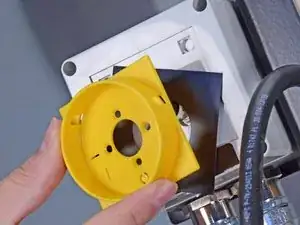

Remove the yellow switch guide from the switch assembly.
-

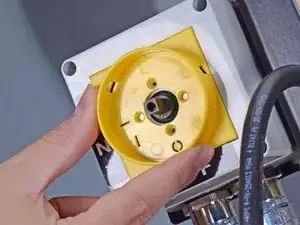

Remove the black plastic spacer from underneath the yellow switch guide.
-
-
-

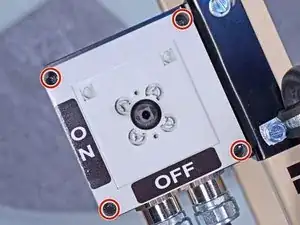

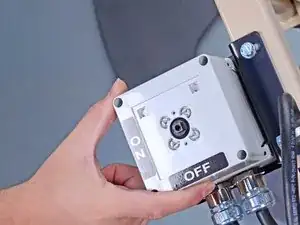

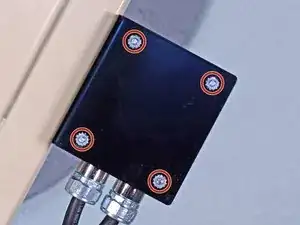

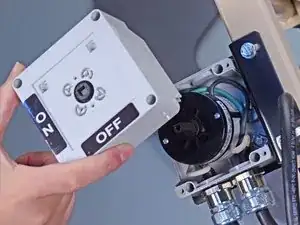

Use a Phillips screwdriver to remove the four screws securing the upper half of the switch housing to the lower half.
-
-
-

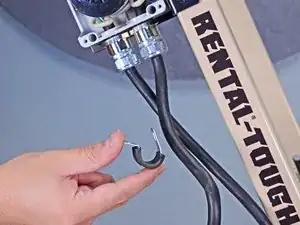

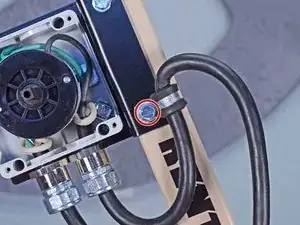

Use a 3/8 inch socket to remove the bolt securing the power cord loom clamp to the switch bracket.
-
-
-

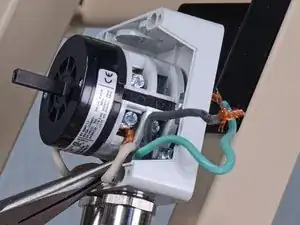

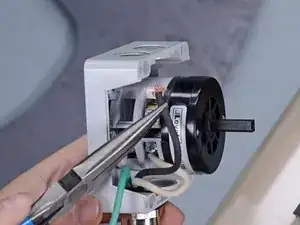

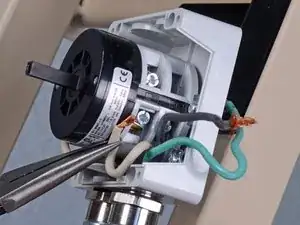

Use a flathead screwdriver to remove the screw securing the two green ground wires to the switch housing.
-
-
-

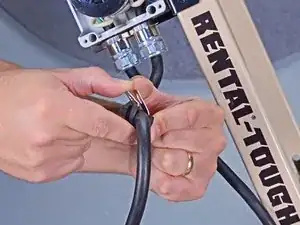

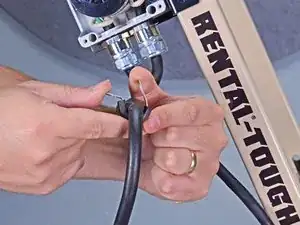

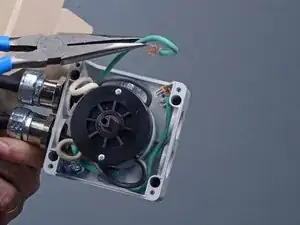

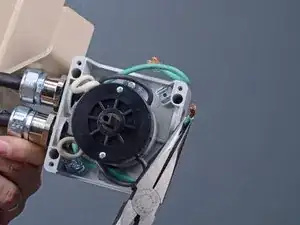

Separate the green ground wires from each other and move them away from the switch housing.
-
-
-

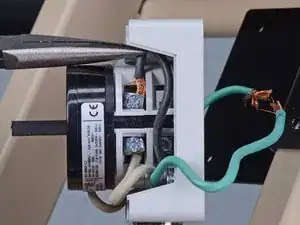

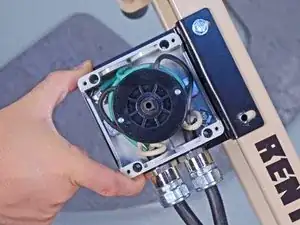

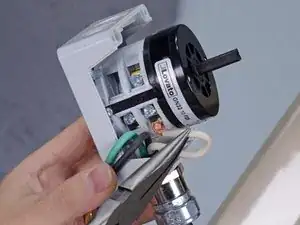

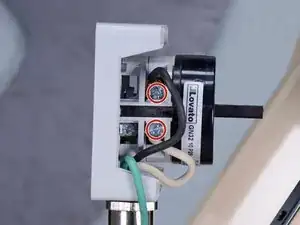

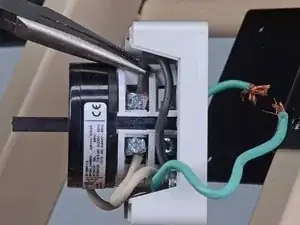

Use a flathead screwdriver to loosen the two screws on the right side of the switch assembly securing the black and white wires from the power cord.
-
-
-

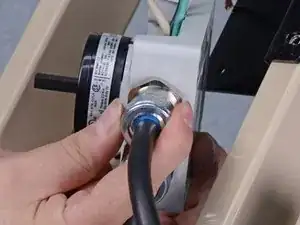

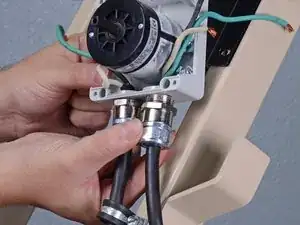

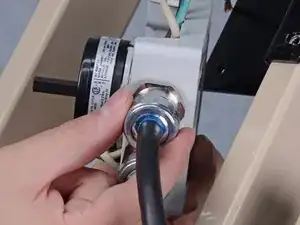

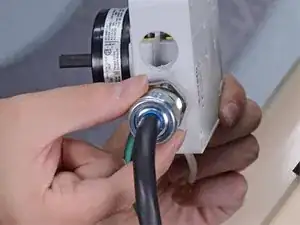

Use a 1-1/16 inch wrench or an adjustable wrench to loosen the power cord's strain relief fitting from the switch housing.
-

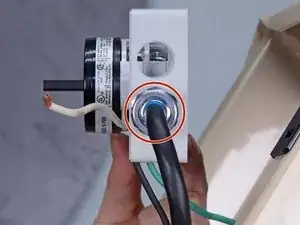

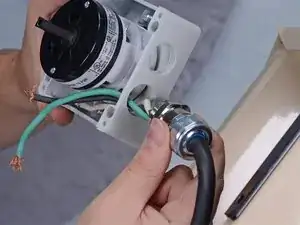

Once the fitting is loose enough to turn by hand, twist the power cord and fitting counterclockwise until it is fully unthreaded from the switch housing.
-
-
-

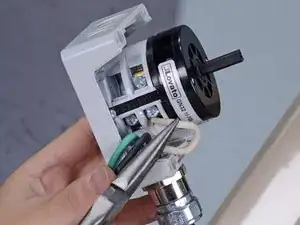

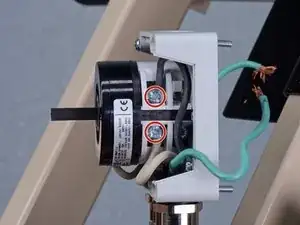

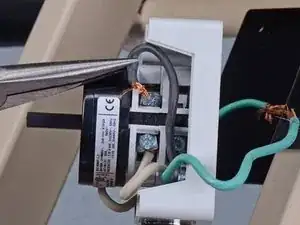

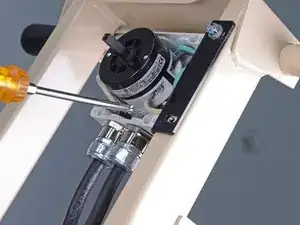

Use a flathead screwdriver to loosen the two screws securing the wiring harness's black and white wires to the switch.
-
-
-

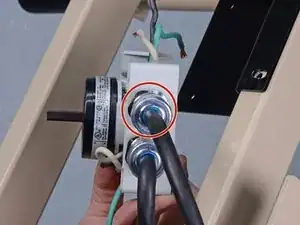

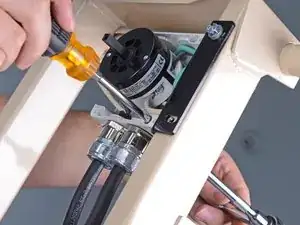

Use a 1-1/16 inch wrench or an adjustable wrench to loosen the wiring harness cable's strain relief fitting from the switch housing.
-

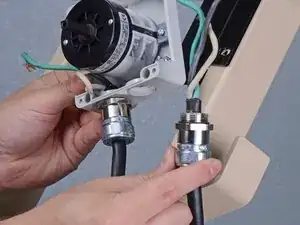

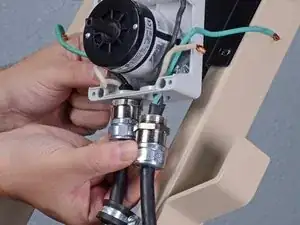

Once the fitting is loose enough to turn by hand, twist the wiring harness cable and fitting counterclockwise until it is fully unthreaded from the switch housing.
-
To reassemble your device, follow these instructions in reverse order.
