EDCO Floor Stripper TS8 .75L (2017) Striker Plate Replacement

Geschrieben von: Robert Boyd
  • Kommentare: 0
EDCO Floor Stripper TS8 .75L (2017) Striker Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

45 Minuten - 2 Stunden

Einleitung

Follow this guide to remove and replace the striker plate on an EDCO Floor Stripper TS8 .75L (2017).

  1. DnshL2WqddCVCRL1

    • Before you begin, ensure the device is powered down and cool to the touch.

    • Ensure the machine is unplugged.

    • Turn the power switch counterclockwise into the OFF position.

  2. sFvpF2f1KB4f3AN3
    sFvpF2f1KB4f3AN3
    pD3EEpfVOrVgpIeV

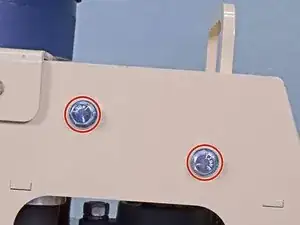

    • Use a 1/2 inch socket to remove the four bolts securing the hood to the frame, two on each side.

    • During reassembly, ensure each bolt is reinstalled with both its flat washer and lock washer.

  3. UTqWmcpUp3aC4VGA
    UTqWmcpUp3aC4VGA
    auK5hfvipaKVhukE

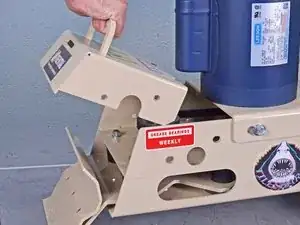

    • Pull the hood away from the device to remove it.

  4. GOuR1m3axWEYfkuR
    GOuR1m3axWEYfkuR
    d4do5WhJhYVy5Lmc

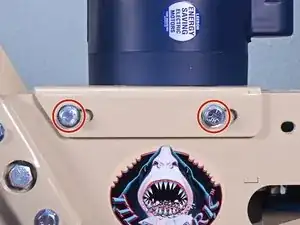

    • Use a 9/16 inch socket to loosen, but not remove, the four bolts securing the motor mount to the frame, two on each side.

  5. UiaVVeRDPNAP3jYf
    UiaVVeRDPNAP3jYf
    ab1RDtAFfnxxVDhK

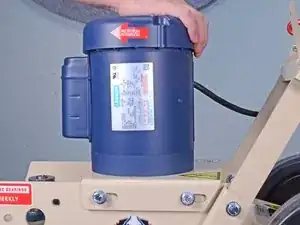

    • Slide the motor towards the front of the device to release tension in the belt."

    • Reassembly tip: Tilt the device onto its handles to use the weight of the motor to tension the belt, then tighten down the bolts.

  6. mkm6jUd2fsxneKFv
    mkm6jUd2fsxneKFv
    OT4mPo1yVauJHFqM
    bIFeT1avvDfCvw4Q

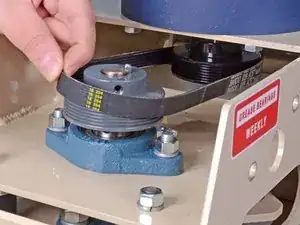

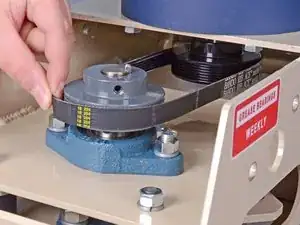

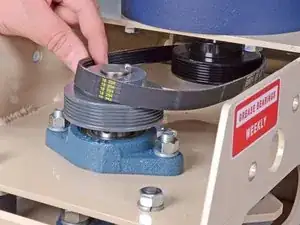

    • Remove the belt from the cam shaft pulley.

  7. VLDSXSwVcMwTQBXK
    VLDSXSwVcMwTQBXK
    rOIY5loEAS5n3I2t

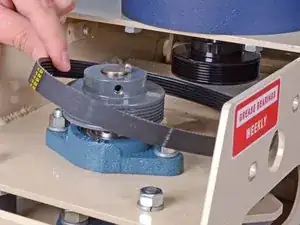

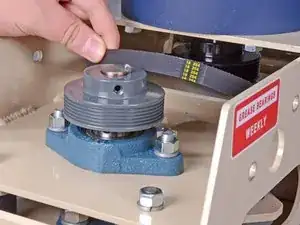

    • Disengage the belt from the motor pulley.

    • Remove the belt.

  8. DEiALoepEXPqwPrb
    DEiALoepEXPqwPrb
    KsYwppvPLZYjfsUl
    OnwhFKKxBMiouTc6

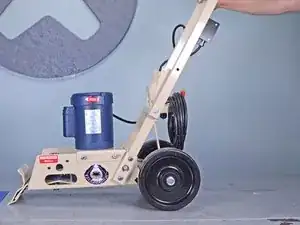

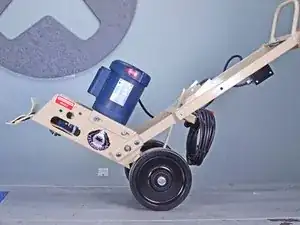

    • Tilt the device back to rest on its handle.

    • Ensure that the four 9/16 inch motor mount bolts are tightened before tilting the device.

  9. JFUNfqYm1KYhvLDV

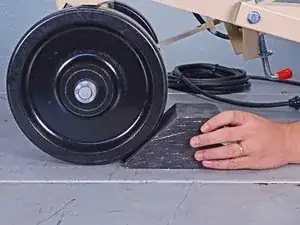

    • Insert wheel chocks behind the wheels to ensure the device does not move or fall during the repair."

  10. SZABbIl1dOUEDAVu

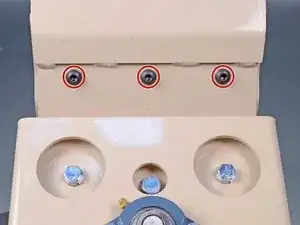

    • Use a 3/16 inch hex key to remove the three bolts securing the blade retainer.

  11. EQNwxxCtIE6klptp
    EQNwxxCtIE6klptp
    NBnX64DRudALx1g3

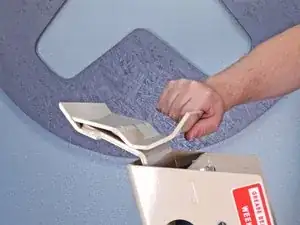

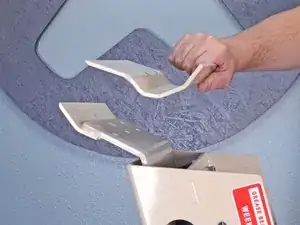

    • Remove the blade retainer.

  12. EBHoxEsIDXdjubkI

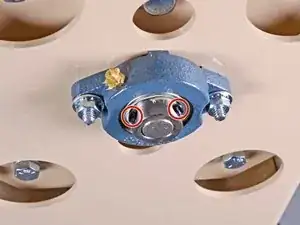

    • Use a 1/8 inch hex key to loosen the two set screws on the lower flange bearing.

  13. hAZwVYaMwPIETPBt

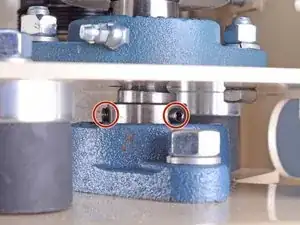

    • Use a 1/8 inch hex key to loosen the two set screws on the middle flange bearing.

    • These set screws require either a long hex key or an extension to reach. They can be accessed from the front of the floor stripper or from the slots on either side of the frame.

  14. ghISuJOU1lIp5iDV

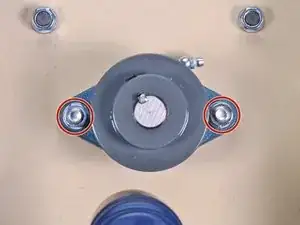

    • Use a 9/16 inch socket to remove the two nuts securing the upper flange bearing to the frame.

    • If you are unable to fit a socket on the nuts due to the cam shaft pulley, try using a wrench.

    • If the bolts spin without loosening, use a 9/16 inch wrench to hold the bolt head from underneath.

  15. p3AUI11n14o2oLxE
    p3AUI11n14o2oLxE
    IeFpDZDXDNeQq6mN

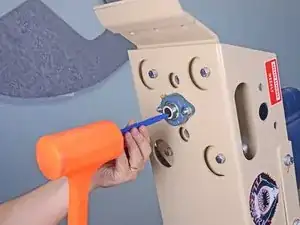

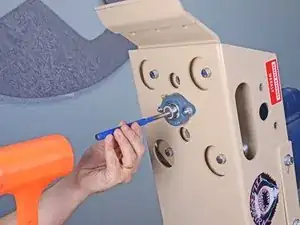

    • Use a mallet and an appropriately-sized brass punch to tap out the cam shaft assembly if you cannot remove it by hand.

    • Once loose, the cam shaft assembly can fall out quickly.

  16. foZbKR4bqGTTDN1H
    foZbKR4bqGTTDN1H
    DVVhBUSAEYw5D2fb

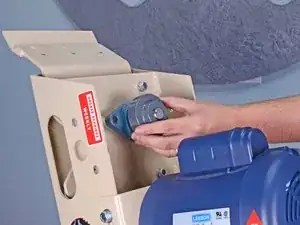

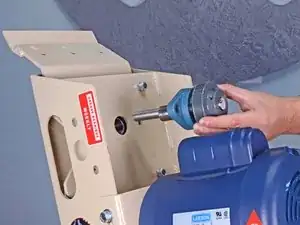

    • Remove the cam shaft assembly

  17. 5Kv45hpZZLIIUUVA

    • Use a 9/16 inch socket to remove the four bolts securing the striker plate to the isolators.

  18. 2LRbMOLoXWNTvTZi
    2LRbMOLoXWNTvTZi
    Q2HgraUoSa5B3g6u

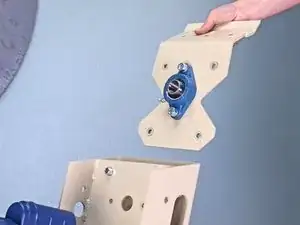

    • Remove the striker plate.

Abschluss

To reassemble your device, follow these instructions in reverse order.
