ELECTRIC EEL Drain Cleaner RFK34IC100 2014 Air Activated On/Off Switch Replacement

Geschrieben von: Trevor A
  • Kommentare: 0
ELECTRIC EEL Drain Cleaner RFK34IC100 2014 Air Activated On/Off Switch Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

10 - 20 Minuten

Einleitung

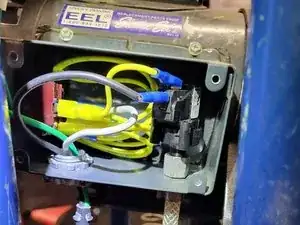

  1. unnNZ5tXHmCgEBJI
    unnNZ5tXHmCgEBJI
    f5MfWPyBTRQH5sCE

    • Remove 4 Phillips head screws holding on the cover plate and gasket behind it.

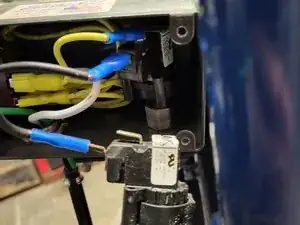

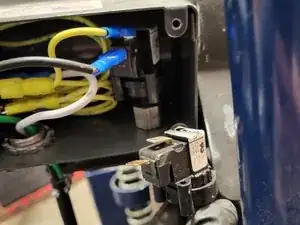

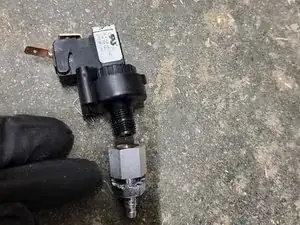

  2. iFEIMp6Bp3jNfPcs
    iFEIMp6Bp3jNfPcs
    VWOyWceWTMb1UiIc
    KyUTWWt3GT3NZDBn

    • Remove bottom 9/16 nut that holds the pneumatic tube on the switch.

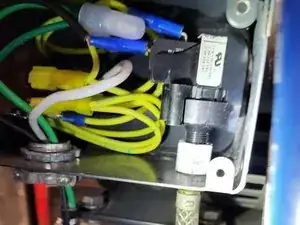

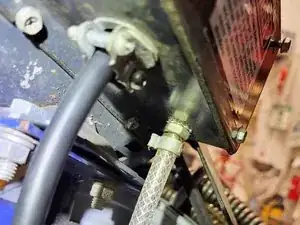

  3. srKF2qP3qCInAdfm
    srKF2qP3qCInAdfm
    dRwLIHRp3HjTvRbI

    • Thread the new switch into the pneumatic tube, careful threads are plastic.

    • Attach yellow wire to the top and the black wire to bottom of switch with disconnect.

    • Tighten 1/2 nut on the pneumatic tube until snug.

Abschluss

To reassemble your device, follow these instructions in reverse order.
