EVGA Supernova Nex 650 G Power Supply Replacement Fan Replacement

Geschrieben von: Jason Haisma
  • Kommentare: 2
EVGA Supernova Nex 650 G Power Supply Replacement Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 - 30 Minuten

Einleitung

The fan is a vital portion of the EVGA Supernova Nex 650 G Power Supply. This guide will show you how to dissassemble the power supply and fix it.

  1. oZCNlNVcOITLRYC1
    oZCNlNVcOITLRYC1
    foTWcWqQLrKJ3Q3R
    fBrpxKKrP4C3MbPm

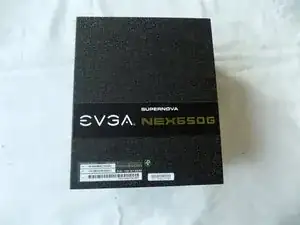

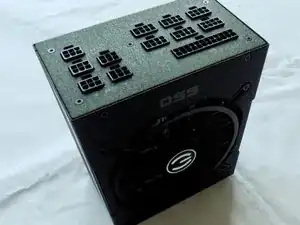

    • Disconnect all wires attached to the power supply before performing any actions on the power supply.

    • If the power supply was recently plugged into the wall, allow 10 minutes for the internal capacitors to discharge. '

    • Caution: Failure to complete this action can result in harm to you or the power supply!

    you have diagram mb conector i need build the cable

    diegocaraballo -

  2. NmNCdlMLPRwK5FI6

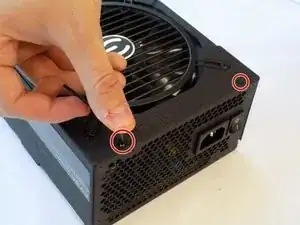

    • Using the 2mm Hex Key, remove the four screws located on the four corners on the bottom (fan side) of the power supply.

  3. X5h1fAZIWC1Gv5nI

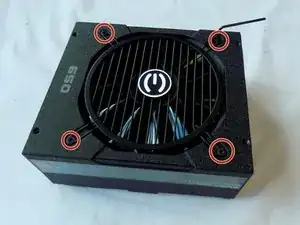

    • Using the 2.5 mm Hex Key, remove the four screws holding the fan and its vent on the power supply.

  4. cZKIDll4SNjHqreR
    cZKIDll4SNjHqreR
    RL2yRKTY4TfFxRC5
    rTfpJa2q3DJDlTUW

    • Use a flat head screwdriver under the tab to remove the top from the bottom.

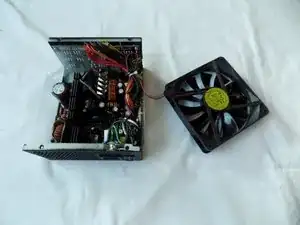

    • Once the top has been removed, move the fan out of the way to expose the wiring and circuit board.

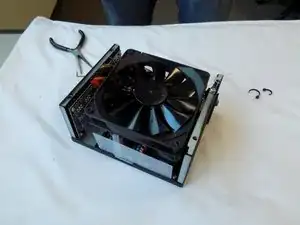

    • Note the relative location of the fan. To align the fan again during reassembly, it may be beneficial to have the vent for the fan off and use your hands to align the fan with the four holes. Use two of the screws removed in the previous in opposite corners to ensure the fan is properly aligned.

  5. 5VvwjC3rLisbwqKH

    • Cut the zip ties that wrap all the wire together to remove the fan wire. There are 3 zip ties to be removed. Use a xacto knife or scissors.

    • CAUTION: Be careful not to cut yourself or the lining on the wires.

  6. MkylicgaGXQIuVQb

    • Cut the gray welding caulk material so that you can remove the fan from the motherboard

    • CAUTION: Be careful not to cut yourself or the lining on the wires.

  7. g3tXem4XJ2SdHBBP
    g3tXem4XJ2SdHBBP
    KBbbdqZb5QMDgDJO

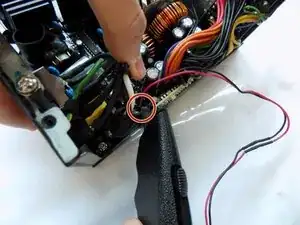

    • Follow the wire to find where the fan connects to the board.

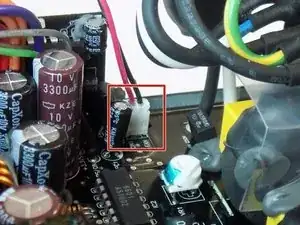

    • Using the needle nose pliers grab onto the plastic end of the wire and pull very lightly up on the plastic. Simultaneously, use the corner of the screwdriver to apply light pressure to the two holes to release the from being connected to the board. Doing this should allow for the the fan to be released from the board.

    • Remove the defective fan from the power supply.

    • When reassembling, make sure that pins are properly lined up with the holes on the connector. Failing to do this can cause the pins to bend or break.

Abschluss

To reassemble your device, follow these instructions in reverse order.
