Echo Brushcutter SRM2620U 2017 Clutch Spring Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Echo Brushcutter SRM2620U 2017 Clutch Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide shows how to remove and replace the clutch spring in an Echo SRM-2620U Brushcutter.

  1. OIIyoSPcY4XEJEVq
    OIIyoSPcY4XEJEVq
    O1r6GfeMPHTHdPIg
    YxnRXBUDLJJVIsWd

    • Before you begin, ensure that the engine is powered down and cool to the touch.

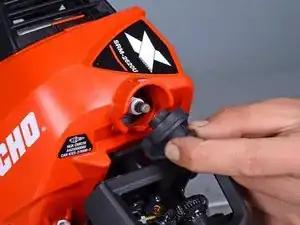

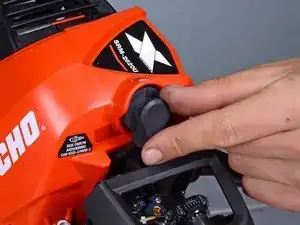

    • Grip the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

  2. DbccV1rgkSTshb2Q
    DbccV1rgkSTshb2Q
    lmmNlMBoaoVxZJAv

    • Unclip the throttle cable routing clip from the main shaft.

  3. XmIYVvTwhKn2etVF
    XmIYVvTwhKn2etVF
    yPGB2TqvDSNcl4cN
    GZQlvV6KJbEddjZZ

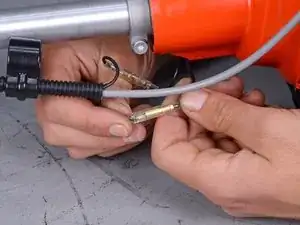

    • Grip both ends of one of the control cable bullet connectors and pull to disconnect it.

    • Repeat to disconnect the second control cable connector.

    • These connectors are interchangeable.

  4. AOJnOPMMjXCZrpVU
    AOJnOPMMjXCZrpVU
    iEyPShkV3DvboCWW

    • This Echo device has an included multi-tool with a T30 Torx screwdriver, but any T30 Torx driver is compatible.

    • Use a T30 Torx driver to remove the two screws securing the muffler cover.

  5. aFGBQiMSEnivAqGh
    aFGBQiMSEnivAqGh
    LicStRdTEBbhpUQQ
    YZgpR4IM5j51fURV

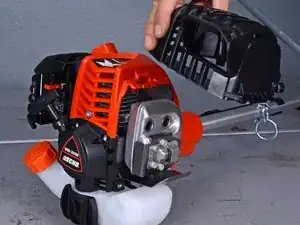

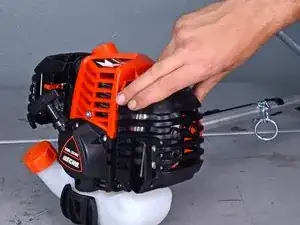

    • Lift the muffler cover up and pivot it on its top edge to unlatch it from the engine cover.

    • Remove the muffler cover.

  6. 5YXsOHQaRX2jDG6O
    5YXsOHQaRX2jDG6O
    PxZ2fEUGcigQHZPi

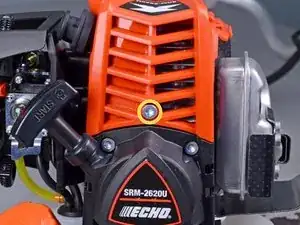

    • Use a T30 Torx driver to remove the two screws securing the engine cover.

  7. NcUksAmrkxTTyx4Y
    NcUksAmrkxTTyx4Y
    AGYpL3C1Q1MG3n3W

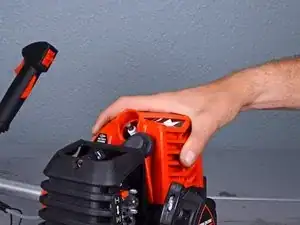

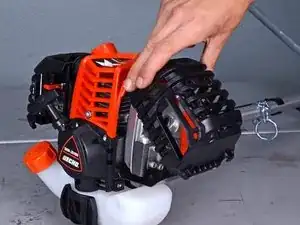

    • Lift the engine cover straight up to remove it.

  8. SOLFxSTXJGjWmkQP

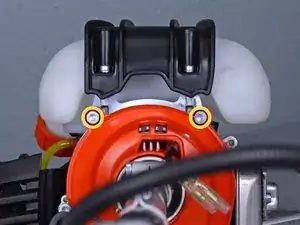

    • Use a T30 Torx driver to remove the two screws securing the fan cover.

  9. DmufLNMJCRNJaqDJ
    DmufLNMJCRNJaqDJ
    UlInVKQjXL5jQ1Gh

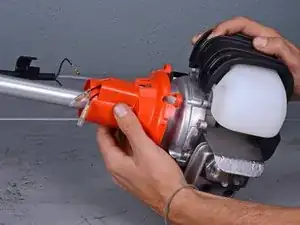

    • Pull the fan cover away from the motor assembly.

  10. bKQt1QhLSqiHWIsI
    bKQt1QhLSqiHWIsI
    OHL2RbIwGJOHGWQo

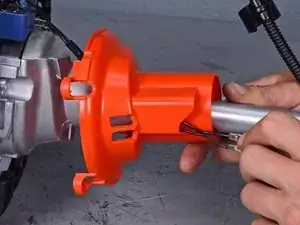

    • During reassembly:

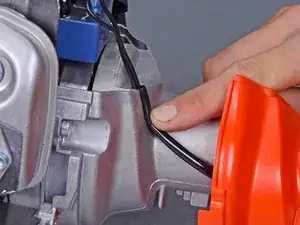

    • Reroute the two control cables through the opening on the fan cover.

    • Lay the cables into their slot on the clutch cover.

  11. AU2mAZPWSgAj2xxW

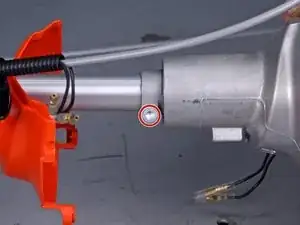

    • Use a T30 Torx driver to loosen, but not remove, the collar bolt securing the main shaft to the engine assembly.

  12. CUTHLWpJSnkQLctN
    CUTHLWpJSnkQLctN
    CK5npqLWBQACfGph
    NynKCnlgpls1Xoqm

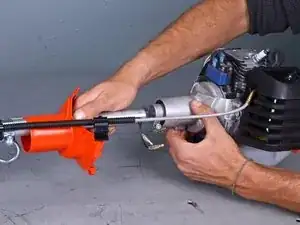

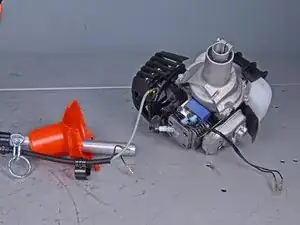

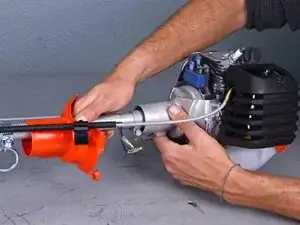

    • Grip the engine assembly and pull to remove it from the main shaft.

    • With the engine assembly removed, take care to not put any strain on the still-connected throttle cable.

  13. ikpHkQI3lhnuqi2p

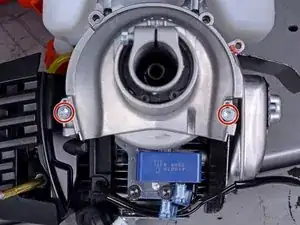

    • Use a T30 Torx driver to remove the two screws securing the clutch cover.

  14. MvXDrBw6kyIpPGMp
    MvXDrBw6kyIpPGMp
    QvFtqCn1dLuAYLDU

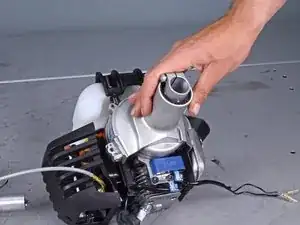

    • Remove the clutch cover.

  15. MdARF4YO1IFX5QOU

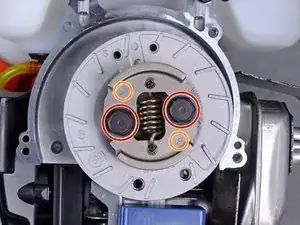

    • Use a 1/2 inch socket to remove the two 12 mm-long bolts and four accompanying washers securing the clutch assembly.

    • During reassembly:

    • Note that the larger washer goes underneath the clutch assembly and the small washer goes above.

    • Ensure that the clutch assembly is reinstalled arrow side up.

  16. W5rXeHuo25RVXIOD
    W5rXeHuo25RVXIOD
    kE2kUZafVZP2Mx5d

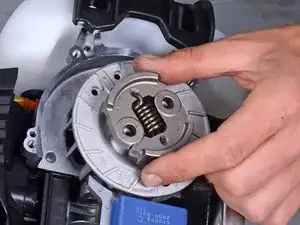

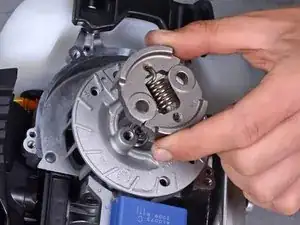

    • Remove the clutch assembly.

  17. Ptru1SwXLCxJ2CeB
    Ptru1SwXLCxJ2CeB
    eDLHGWtmsVhyXuns
    yAEENWuR1HQj6hPb

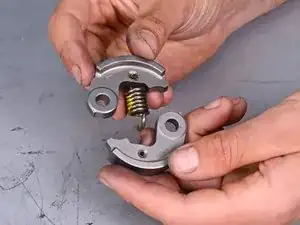

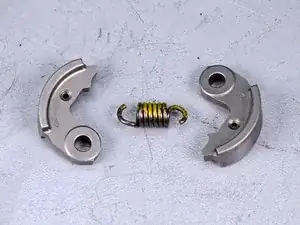

    • Firmly grip one clutch shoe in each hand and twist them apart to release the spring tension.

    • During reassembly, loop the clutch spring in place on the clutch shoes and twist them together to reapply spring tension.

    • Disconnect one side of the spring loop from one of the clutch shoes.

  18. xb54sAxgENrJcrdQ

    • Remove the spring from the remaining clutch shoe.

Abschluss

To reassemble your device, follow these instructions in reverse order.
