Eclipse 180BL Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Following these easy steps will allow you to successfully replace the battery in the device.

  1. TnmqkMH5yjhIIR1p

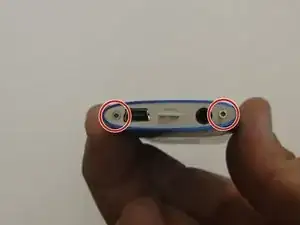

    • Remove the two screws located on the bottom of the device with a phillips head screw driver.

    • The two screws can be removed using the PH00 head from the iFixit repair toolkit.

    • Both screws are 1/8 inch in length.

    • The bottom cap will come off to reveal the inside main component.

  2. kIVtWZTsE4PEyeq4
    kIVtWZTsE4PEyeq4
    JVYZ4q6lMAfgxJNc

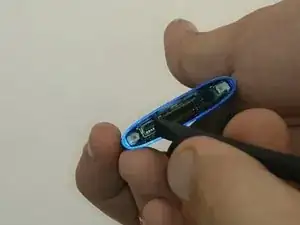

    • Remove the main inner component using Spudger, by pushing on the USB port. This will take some force.

    • Hold on the sides with your fingers, and push to release from the top.

  3. FQ35GyGUHKJUnXCT
    FQ35GyGUHKJUnXCT
    LjiQtFOJopBNJv2D
    fyuvLCxZDpOHgWWQ

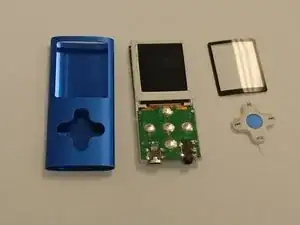

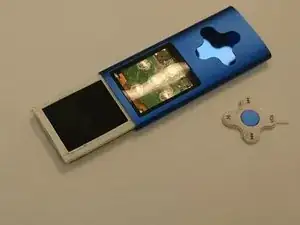

    • The plastic LCD cover and the key pad will now be loose; they were held in place by the tension between the case and the internal main component.

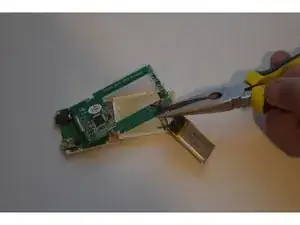

    • Locate the large square pack with a black and red wire coming out of it, this is the battery.

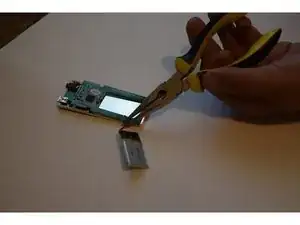

    • Cut the red and black wires to remove the old battery.

  4. mvusai2fvZpQ1iDJ

    • To Replace, connect the two new lines ( red and black) between the new battery and the device.

    • You have successfully replaced the battery!

Abschluss

To reassemble your device, follow these instructions in reverse order.
