Eclipse 180BL Touch Pad Replacement

Geschrieben von: Thomas Schwarz
  • Kommentare: 0
Eclipse 180BL Touch Pad Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

10 Minuten

Einleitung

If you have an unresponsive touch pad, sticking buttons, or just want a fresh touch pad in your device, this guide is for you!

  1. Fb4O2tTwEf5QFbuP

    • Remove the two screws at the bottom of the device.

    • The two screws can be removed using the PH00 head located in the iFixit Repair toolkit.

    • The two screws are 1/8 inch in length.

    • Remove the cover to reveal the internal component.

  2. M2yHaB3dS2tHoE5O
    M2yHaB3dS2tHoE5O
    kqvyssGHwQGKHMdS
    NheHhHTxVPKF4BBY

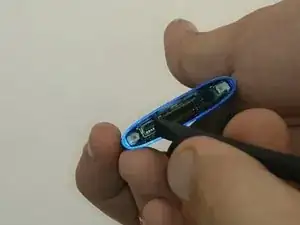

    • Using the Spudger, forcefully push upward on the USB port of the device to remove the main component.

    • This will release the tension on the multiple parts. One of which will be the touch pad.

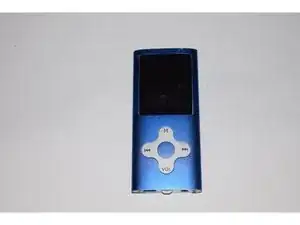

    • The touch pad can now be easily replaced.

    • The touch pad has a smaller center piece that must be replaced for proper usage of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
