Eco X Gear Cone Replacement

Geschrieben von: James Lipsett
  • Kommentare: 0
Eco X Gear Cone Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

You will need a phillips head screw driver and needle nose pliers to complete this task. Before opening the device, ensure that there is no power to avoid damaging the electronics or harming yourself.

  1. rT1QeLQjV1tJV5kZ

    • Disconnect any power source and/or turn off device.

  2. MyF5D5ZsmO4YC6o2

    • Remove the 15 rubber plugs from the cavities using needle nose pliers.

  3. MFJihdcbkWrBRThH

    • Use a phillips head screwdriver to remove the fifteen 6.4mm screws.

  4. IwpPuAOGbvngpOAb

    • Carefully separate the two sections of the frame.

    • Wires still connect the two sections. Be cautious to avoid damaging the wires, terminals, and electronics.

  5. fNIA5RPvQfYjFAqL

    • Disconnect the wiring to improve accessibility to the cones.

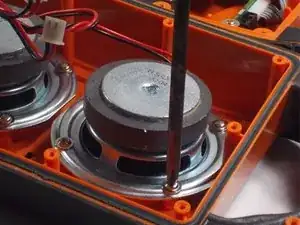

  6. e6iMAMxAxwDOSwqC
    e6iMAMxAxwDOSwqC

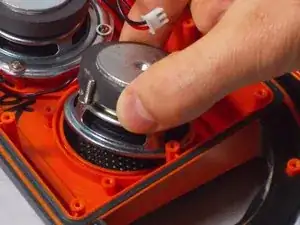

    OPvjCripRfRMKEKY

    • Remove the four screws which hold down the speaker. Then, pry up the speaker from the frame.

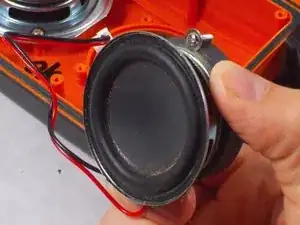

  7. yo6Ik4wPs1VjKrZj

    • To replace the cone, remove the existing one by peeling it off of the speaker with needle nose pliers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
