Edco KL14 Arbor Replacement

Geschrieben von: Craig Lloyd
  • Kommentare: 0
Edco KL14 Arbor Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

20 - 45 Minuten

Einleitung

Follow this guide to replace a damaged arbor assembly on the Edco Cement Saw KL1465H.

  1. AoO1MwKlXfZZVgSh
    AoO1MwKlXfZZVgSh
    OuvTv1CQgDXUSGbM

    • Before you begin, ensure that the machine is powered down and cool to the touch.

    • Disconnect the spark plug to prevent the engine from accidentally starting up during service:

    • Grab the plastic spark plug cap at the end of the spark plug wire.

    • Firmly pull to disconnect the spark plug cap from the spark plug.

  2. wY5SV4VulmmWHq2p
    wY5SV4VulmmWHq2p
    uZRHMAvgTYPviCjm
    pZdkbqyhpOCSGv1x

    • To prevent the concrete saw from rolling during service, place wheel chocks in front of and behind a rear wheel.

  3. BWkVDVQ1SyCSuLVL
    BWkVDVQ1SyCSuLVL
    CVOL5nNDEPMQgTIc

    • Use a 3/8-inch wrench to remove the two bolts securing the arbor guard.

    • Remove the arbor guard.

  4. Tof6L2pxQMbtYgvU
    Tof6L2pxQMbtYgvU
    31pKN5LgRtVxCnBx
    qrYmTgCOqdSxm6up

    • Use a 3/8-inch wrench to remove the two bolts securing the belt guard.

    • Remove the belt guard.

  5. NMY6Uee3KCrMV5Np
    NMY6Uee3KCrMV5Np
    s1kgkshOmVHWVClt

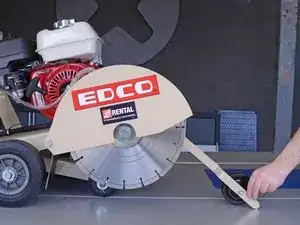

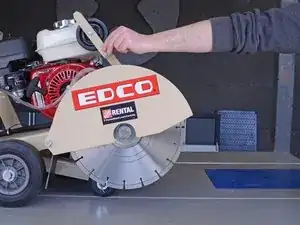

    • Lower the guide bar all the way down until it rests on the work surface.

  6. ZtyE3AegdG1e1IWu

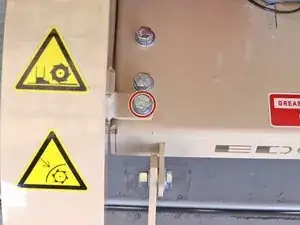

    • Use a 9/16-inch wrench to remove the bolt securing the blade cover.

  7. iDybw14lAxjpK2Qs

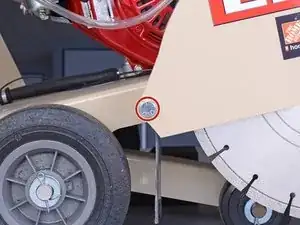

    • Use a 3/4-inch wrench to loosen the blade cover pivot bolt, but do not remove it.

  8. L4TbJ4VLHdydxd44
    L4TbJ4VLHdydxd44
    yQXNkGVktGGoHSnP

    • Raise the blade cover all the way up to expose the cutting blade.

    • Work slowly and take extra precautions when working around the exposed cutting blade.

  9. WEYKf2RYymbM5ZxP
    WEYKf2RYymbM5ZxP
    brTJTiQpWfIhluUG
    pLjTUCPAX6nxTd32

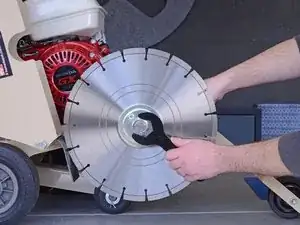

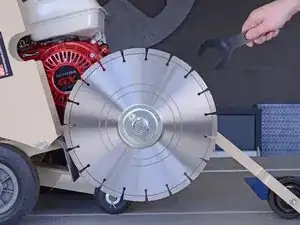

    • Use the included wrenches to remove the jam nut securing the cutting blade to the arbor.

    • Use one wrench behind the blade to secure the arbor in place as you use the other wrench to remove the jam nut.

    • The jam nut is accompanied by a lock washer. Be sure to retain it for reinstallation.

  10. pExm4EcV2PcVQfrL
    pExm4EcV2PcVQfrL
    rcIWUsOE1wpEtgCE
    1eB3SERKq4modExN

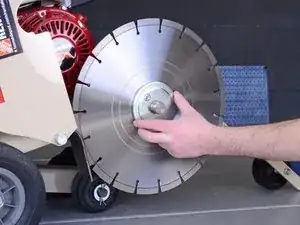

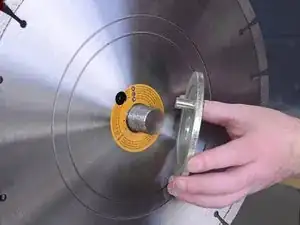

    • Remove the blade cap.

    • Reassembly Tip: Make sure the pin on the blade cap lines up with the holes on the blade and arbor.

  11. NggsEolmT263pJR6
    NggsEolmT263pJR6
    KRlxdEfu5kYulUYU
    uLPPnR5snYGgm6to

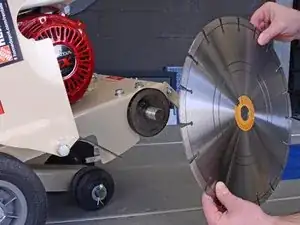

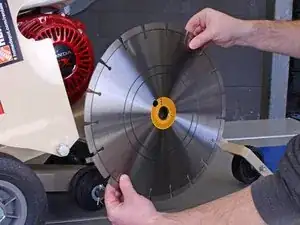

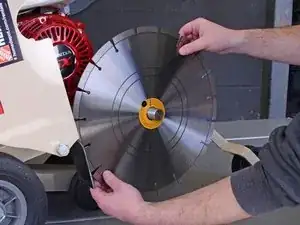

    • Remove the blade from the arbor.

    • Use extreme care while removing the blade to avoid injury.

  12. 2ogZIOUdmkNsVOtn

    • Use a 9/16-inch wrench to remove the four bolts securing the arbor assembly to the concrete saw.

  13. 6Wjnyan2nqu6mJZF
    6Wjnyan2nqu6mJZF
    XLM32SWeOKntBJxr

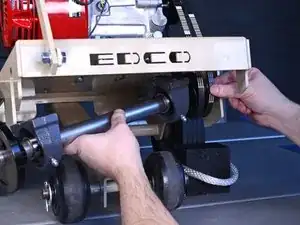

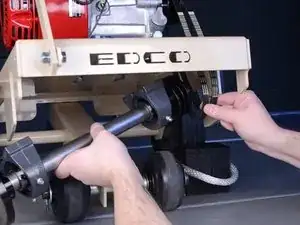

    • Support the arbor assembly from the bottom and tilt the left side down to remove it from the belts.

  14. ZhvnNUlrjw1AZiQg
    ZhvnNUlrjw1AZiQg
    wATfkOMXPD1XWalj

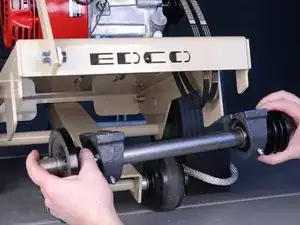

    • Remove the arbor assembly.

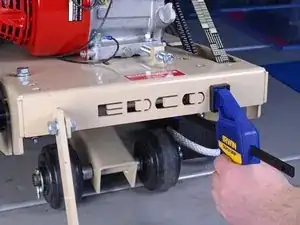

    • Reassembly Tip: Reinstall a mounting bolt on the blade side to hold the arbor assembly in place. Then use a clamp to help line up the remaining mounting bolt holes, as the tension of the belts will make it difficult to do this by hand.

Abschluss

To reassemble your device, follow these instructions in reverse order.
