Einleitung
Follow this guide to remove the belt guard on the Edco Cement Saw KL1465H. This procedure is required to remove the belts, as well as the arbor assembly.
Werkzeuge
-
-

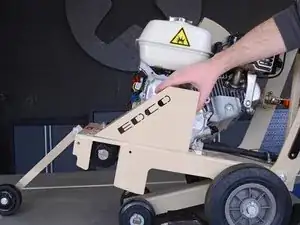

Disconnect the spark plug to prevent the engine from accidentally starting up during service:
-
Grab the plastic spark plug cap at the end of the spark plug wire.
-
Firmly pull to disconnect the spark plug cap from the spark plug.
-
-
-

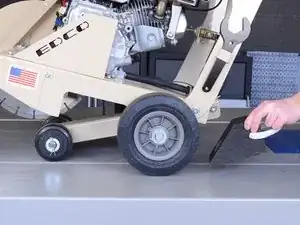

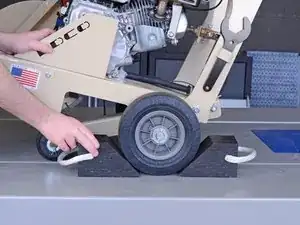

To prevent the concrete saw from rolling during service, place wheel chocks in front of and behind a rear wheel.
-
-
-

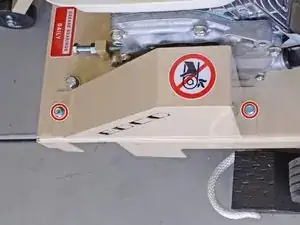

Use a 3/8-inch wrench to remove the two bolts securing the arbor guard.
-

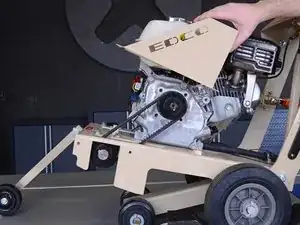

Remove the arbor guard.
-
-
-

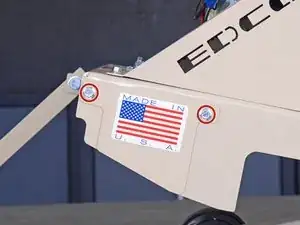

Use a 3/8-inch wrench to remove the two bolts securing the belt guard.
-

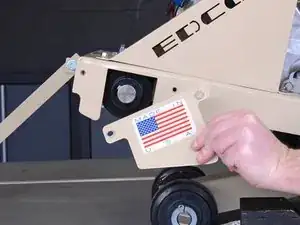

Remove the belt guard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
