Einleitung
Follow this guide to remove and replace the air filter on the Edco Concrete Saw KL1465H. This procedure is required in order to replace the carburetor or remove the throttle cable.
Werkzeuge
-
-
Disconnect the spark plug to prevent the engine from accidentally starting up during service:
-
Grab the plastic spark plug cap at the end of the spark plug wire.
-
Firmly pull to disconnect the spark plug cap from the spark plug.
-
-
-
To prevent the concrete saw from rolling during service, place wheel chocks in front of and behind a rear wheel.
-
-
-

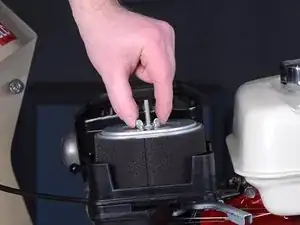

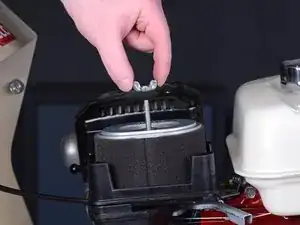

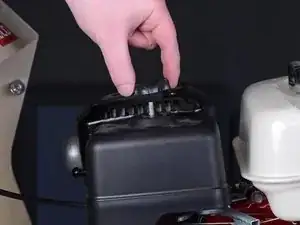

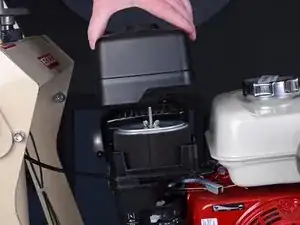

Grab the black plastic air filter platform and lift it straight up with the air filter to remove both components.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
