Edwin the Duck Motherboard Replacement

Geschrieben von: Caleb Kim
  • Kommentare: 0
Edwin the Duck Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

Edwin the interactive toy cannot work if the central most crucial part of Edwin, which is the motherboard, does not work. If there is water damage, and Edwin is no longer working, this guide will take you through the steps of replacing it.

  1. QspvDjKNkoLGdRmZ
    QspvDjKNkoLGdRmZ
    pOwUXb5TPeZD2IBH

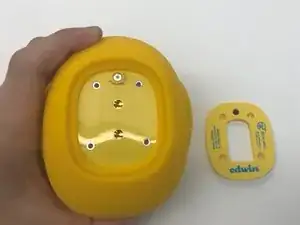

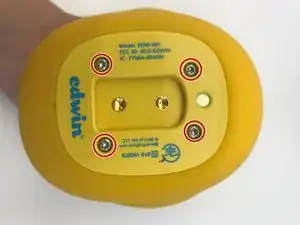

    • Unscrew the four 9mm screws with a T8 screwdriver bit

    • Remove the back plate off

  2. mKKWPAZ12QDOZPxN
    mKKWPAZ12QDOZPxN
    QKeWpSim5NvQIhLX

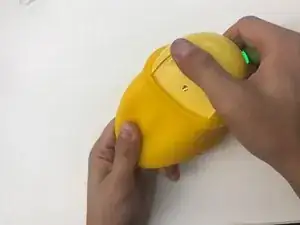

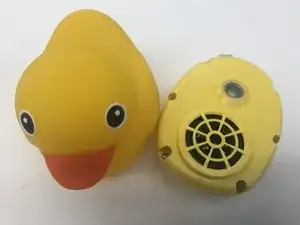

    • Carefully take off the rubber skin.

    • Be patient and don't rush. You don't want to rip or damage the rubber skin resulting in losing the waterproof cover.

  3. voEKOjRORb3S4Zau

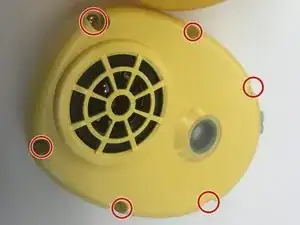

    • Using the J1 screwdriver bit, unscrew all six 9 mm screws that run along the border.

  4. eBZNqergba4Hdjam
    eBZNqergba4Hdjam
    oYYCy4dEqmL4gT3a

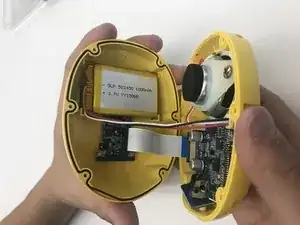

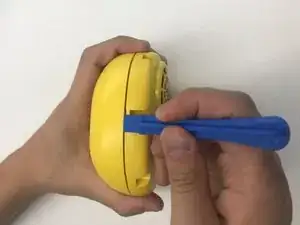

    • Use the plastic opening tool to open the inside of the duck.

    • Be very careful when splitting the two halves apart. There are wires connecting to both sides. Remember to open slowly.

  5. kanCOXLHxKqjwQpC
    kanCOXLHxKqjwQpC
    qSDmiqPYsOwaONpL

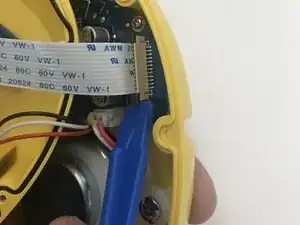

    • Using the plastic opening tool pull up the black tab up until it stops.

    • Be careful not to pull up the black tab too far up, otherwise the cable won't be secure anymore.

    • Pull up the white cable tab, up slowly

  6. H3Vt5GYOZG2idMfg

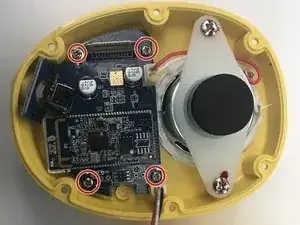

    • Use the J1 screwdriver bit to unscrew all four 9 mm screws attached to the motherboard.

  7. g5NSGIpoeBhNKBJv

    • Remove the top connector as you see in the picture.

    • Replace the new motherboard and you are finished.

Abschluss

To reassemble your device, follow these instructions in reverse order.
