Eee Pad Transformer Prime TF201 Front and Back Cameras Replacement

Geschrieben von: Elaina Ryan

Kommentare: 2

Eee Pad Transformer Prime TF201 Front and Back Cameras Replacement

Schwierigkeitsgrad

Difficult

Schritte

Zeitaufwand

50 Minuten

Einleitung

Replacing the front or back cameras may be necessary if one or both stop working, work poorly, or become very damaged. This guide details how to remove both of them, and the user can choose whether to remove one or both, as removing one does not effect the other. This guide is on the longer side, though it is not overly difficult.

Werkzeuge

Ersatzteile

Schritt 1

Power down your device.
Place the small suction cup on a corner of the screen and lightly pull up to expose a seam between the screen and case.

Schritt 2

Insert the plastic opening tool into the seam near the corner of the device.
Slowly slide the tool around the perimeter of the device, gradually prying up the screen.
It is normal to hear snaps as the spring clips holding the screen in place are released.
It is also normal to hear adhesive separating, as a small amount is used to help secure the screen.

At the bottom of the pad, it is not spring clip. You can activate the release of the clip at the two hole at the bottom of the pad by sliding a small level inside the rectangular hole - one on each side. There is some tape used to hold the screen as well.

Joe Cheung - 24/12/16

Yes! You have to be careful here because there are slide clips along the bottom of the screen that secure the tablet halves together. You can see small holes in the bottom of the dock connector slits. You have to insert a pointy object, I used a small screwdriver, to slide the latches to the left. If you don't do this step you can damage the tablet and never get the two halves back together securely.

Seamus Nugent Couch - 29/08/17

Schritt 3

When the screen is free of all spring clips and adhesive, slowly open the device like a clam shell with the hinge being the left hand side of the device.
Do not completely separate the screen from the case by more than a few inches, as they are still connected by three orange ribbon cables.
Safely place the device back on the table by laying the screen face down.
There will be some slight overlapping of the back of the case over the screen.

Schritt 4

Disconnect the ribbon cable by placing a plastic opening tool under the black plastic tab that is on the opposite side of the port as the ribbon cable.
Pry upward until the black tab moves 90 degrees, and gently pull the ribbon cable out of the port.

Schritt 5

Place a plastic opening tool under the white plastic tab on one of the ribbon cable ports.
Pry upward until the black tab moves 90 degrees, and gently pull the ribbon cable out of the port.
Repeat the previous process to remove the other ribbon cable.

Schritt 6

Remove the battery (secured by six screws and a white wire connector) by following the removal portion of this battery replacement guide.
The device that we wrote this guide for did not come with a battery, so we cannot include it in our own guide steps.
The battery is removed during all repairs to protect against short circuits, shocks, and internal damage to the device.

Schritt 7

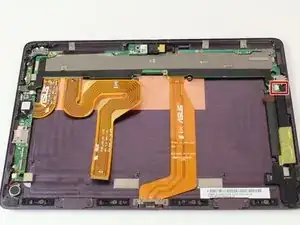

Orient your device so that the lock and volume buttons and the attached components are on the top left.

Schritt 8

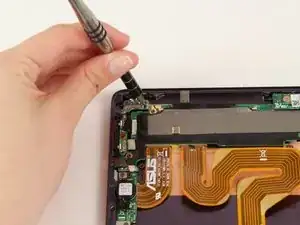

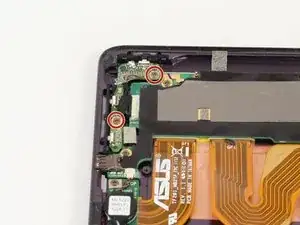

Remove the two 2.5mm screws using a Phillips #00 screwdriver.

Schritt 9

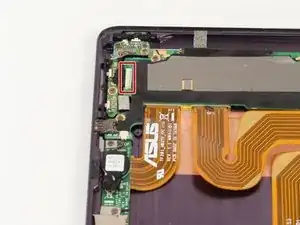

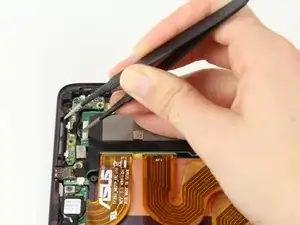

Use tweezers to pull back the strip of black tape covering the connection between the electronic portion of the lock and volume buttons and the motherboard.
Push the black part out of the white part of the connection using tweezers.

Schritt 10

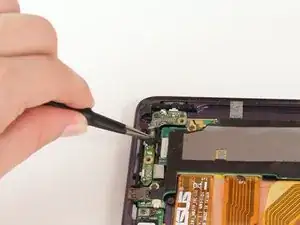

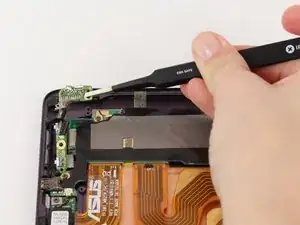

The electronic portion of the lock and volume buttons should now be free to move. Lift it gently using tweezers, and set it aside.

Schritt 11

With a Phillips #00 screwdriver, remove the one 3.8 mm screw in the LED chip. The LED chip is a small green chip (about 1 square centimeter) located at the top center of the device.

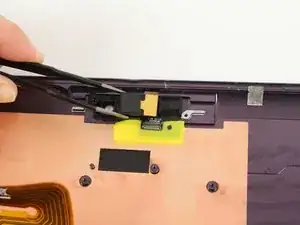

Gently remove the chip with a pair of precision tweezers by grabbing the chip from one side, being careful not to pinch on a black piece of hardware on the chip.

Schritt 12

Using a Phillips #00 screwdriver, remove the six 2.5mm screws and set them aside.

Schritt 13

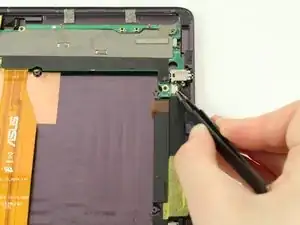

Using tweezers, pull the black part of the connection between the mother board and speakers out of the white part of the connection.

Schritt 14

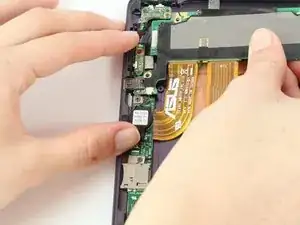

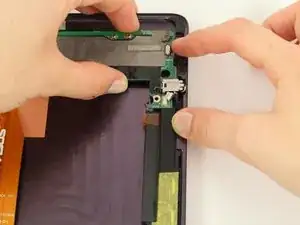

Gently pull the side wall of the device outwards, while using your other hand to pull the component fully into the device.
The right side of the motherboard should now be free to move.

Schritt 15

Using one of your hands, gently pull the side wall of the device outwards, while using your other hand to pull the component fully into the device.
The left and right sides of the motherboard should now be free to move.

Schritt 16

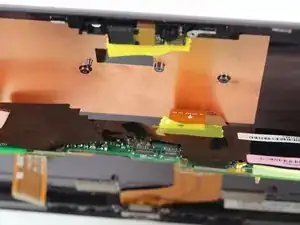

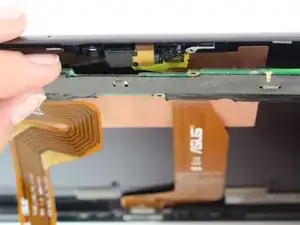

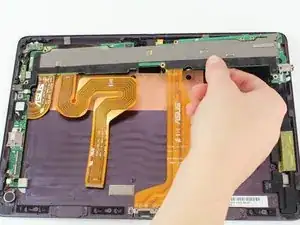

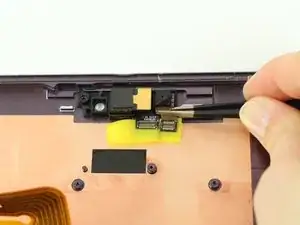

The motherboard will still be attached to the device by ribbon cables and tape located near the cameras. Gently pull the tape off the back of the mother board to release it.
Ignore the ribbon cables still attached to the mother board. Fold the mother board down towards the bottom of the device.
