Electric Bike Throttle Replacement

Geschrieben von: Ali Al-hamadani
  • Kommentare: 0
Electric Bike Throttle Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

Use this guide to replace your Electric Bike Throttle.

  1. gIvFXpjBRLCx3LIT

    • Before starting to disassemble your electric bike, turn the power off.

    • Remove the 3/32 inch Allen screw.

    • When removing Allen screw, make sure the driver is well seated because they are simple to strip.

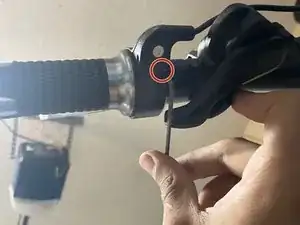

  2. oTPnCgVdIPheSyIU

    • Locate the throttle Allen screw.

    • Remove the 5/64 inch Allen screw.

  3. gMqCjMWIlaAIjs6x

    • Slide the Throttle off.

    • When removing the throttle, be careful. Remove it slowly to avoid damaging the wire.

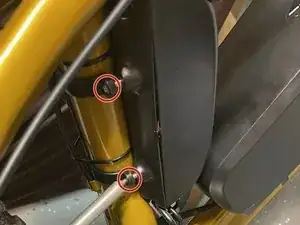

  4. UiyDH15CBQDcSxrk

    • Remove the following screws.

    • 2 mm Philips screws.

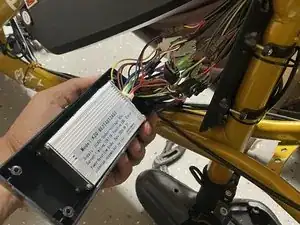

  5. j3XjlEIS2cg4bdll

    • Open up the control box.

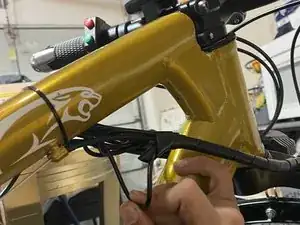

  6. QipwBQWRWOBcOIMa

    • Track the throttle wire.

    • To ensure you don't lose it, you should mark it.

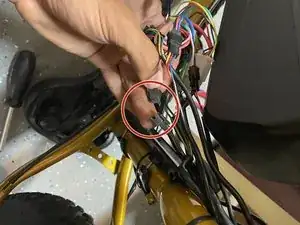

  7. dClwQ1wWGlAfp6JP

    • Locate the throttle wire.

    • Disconnect the throttle wire plug from the controller wire plug.

    • Take caution while handling these wires. You can easily damage them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
