Electric Wheelchair Battery Replacement

Geschrieben von: Paige Efting
  • Kommentare: 1
Electric Wheelchair Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the batteries on a Drive Electric Wheelchair.

  1. pGU6AApgRuCCZOQI
    pGU6AApgRuCCZOQI
    mFktOYpLUFcZ4ktg
    ZQJGR3lxxqNEJgow

    • Locate the two batteries under the back of the wheelchair.

    • Pull the first battery pack to where you can reach the red battery connector.

    • Be careful, the batteries are heavy.

  2. rHxrPCHfpdNZiOgR
    rHxrPCHfpdNZiOgR
    FNZI65WaJPI5kwvI

    • Disconnect the red battery connectors by pulling them apart.

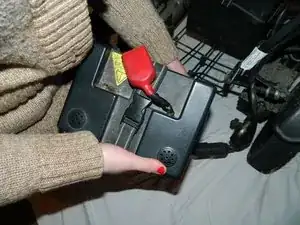

  3. fZUJHZFFJXRmDbf5
    fZUJHZFFJXRmDbf5
    gUmy2vjjgm1sL4FA

    • Remove the first and second battery from the wheelchair.

  4. QBHaGKj3HPoQGSWs
    QBHaGKj3HPoQGSWs
    mMjWyAHbFDSX4Qvp

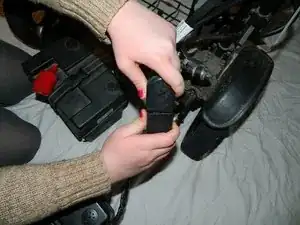

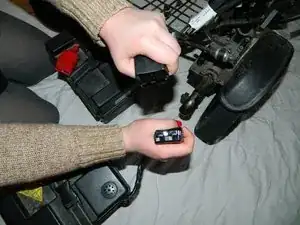

    • Disconnect the black battery connectors by pulling them apart.

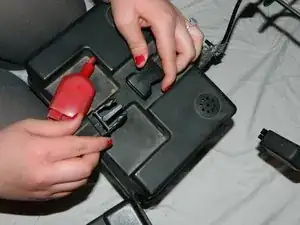

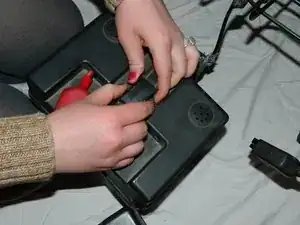

  5. MVEliaLtFKDYt2vo
    MVEliaLtFKDYt2vo
    LxajOfZsXbLDWokh
    Dy3vwl32Tp21maRa

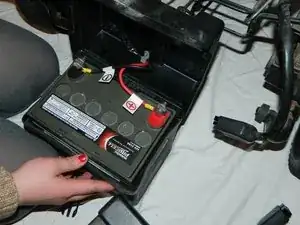

    • One at a time, disconnect the clips holding each battery case closed.

    • Open each case to reveal the battery inside.

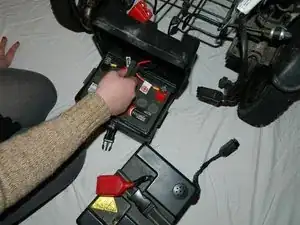

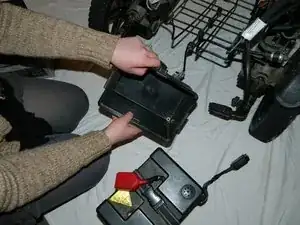

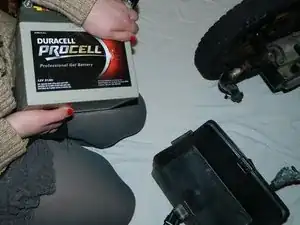

  6. nWShAaFdGtDcooQ6
    nWShAaFdGtDcooQ6
    WLLXQmIPdLjiM5jQ
    tFXgPqrhSnnHuroR

    • Remove the old battery from each case.

    • Put one new battery into each plastic case the old batteries were removed from.

  7. LAja1tZTIZZQwh4c

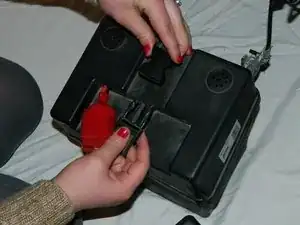

    • Reattach the clips on each of the battery's protective casings.

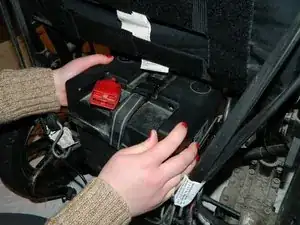

  8. DPyTblrCoVjO4Z3S
    DPyTblrCoVjO4Z3S
    HssABnL14xh6wLXP
    5XpALYfqWjrvgeuD

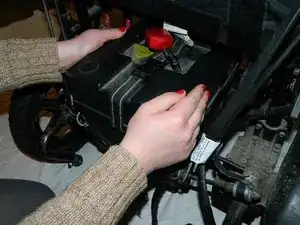

    • Place the first battery back into the holder under the wheelchair.

    • Make sure that it is pushed all the way to the front of the wheelchair.

    • Place the second battery back into the holder.

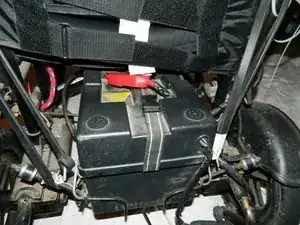

  9. XDgQLeOIKLYjLYnR
    XDgQLeOIKLYjLYnR
    5LLe1PFPrPMwBlRg
    U2nNF4mpY2clTmIb

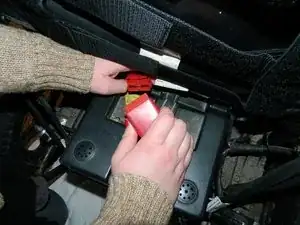

    • Reconnect the black battery connectors.

    • Do not connect the red connectors until the black are connected.

    • Reconnect the red battery connectors.

    • Check that the chair turns on and is fully charged.
