Einleitung

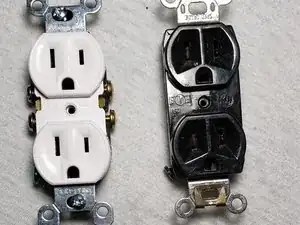

Common reasons to replace an outlet are for cosmetic and functional purposes. Cosmetic reasons include scratches, cracks, chips, etc. Functional reasons to replace an outlet would include: an outlet is not providing power, an outlet is not holding plugs tightly, and an outlet does not have optional features such as USB ports. This guide shows how to replace a standard residential wall outlet.
Werkzeuge
Ersatzteile
-
-

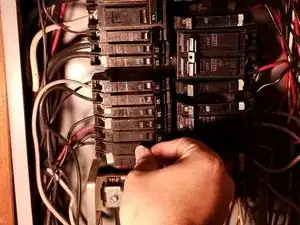

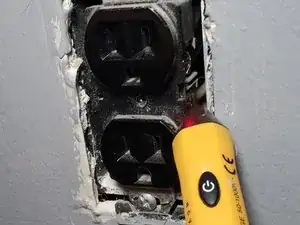

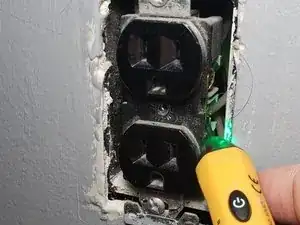

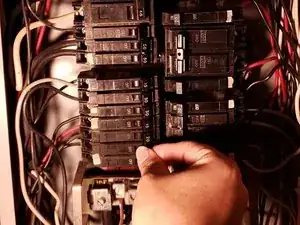

Turn off the power to the outlets by switching off all breakers that are labelled "receptacle."
-
Alternatively, you can switch off all breakers.
-
-
-

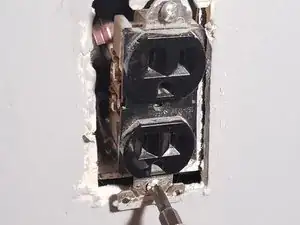

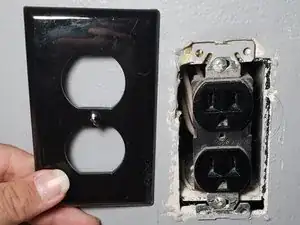

Using a flat-head screwdriver, remove the outer cover plate of the outlet by unscrewing the middle screw.
-
-
-

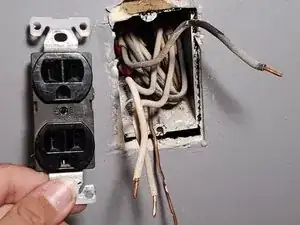

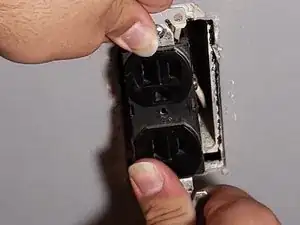

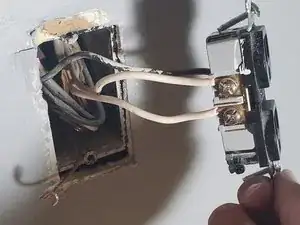

Holding the top and bottom tabs of the outlet, pull the outlet away from the wall, exposing the wires inside the electrical box.
-
-
-

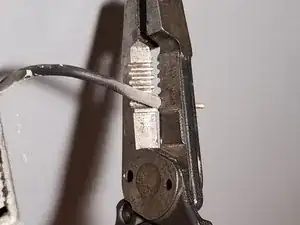

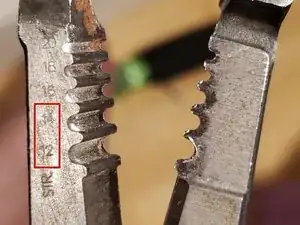

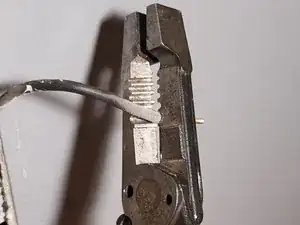

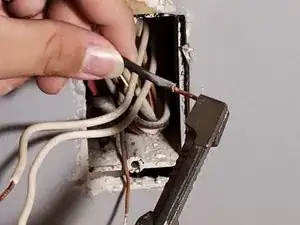

Using a pair of wire strippers, place the wire into each groove, closing the wire strippers around the wire to find the size that barely does not fit around the wires.
-
In the United States, residential wires are typically 12 gauge or 14 gauge, denoted by 12 and 14 on the wire strippers.
-
-
-

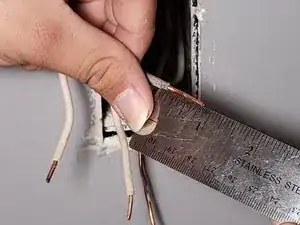

For each wire, approximately 0.75 inches (2 centimeters) away from the clipped end of the wire, clamp the strippers down on the wire and pull the strippers toward the clipped end of the wire, revealing the bare wire underneath.
-
-
-

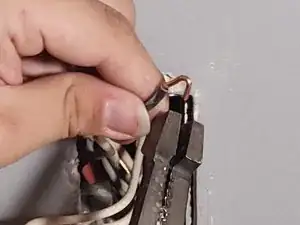

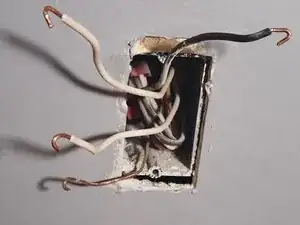

For each wire, using a pair of wire strippers or pliers, take hold of the exposed tip of the wire, and curve the tip of the wire, making a small hook.
-
Separate the wires so that the black wires are on the right and the rest are on the left, with the ground wire at the bottom.
-
-
-

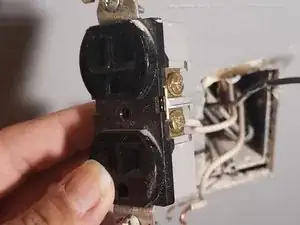

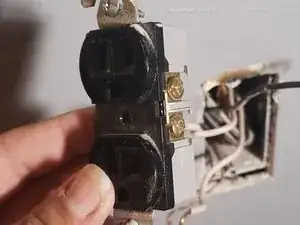

Hold the outlet with face of the outlet pointing toward you, with the copper screws on the right, and the silver screws on the left.
-
-
-

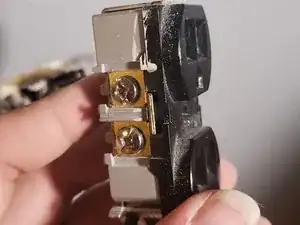

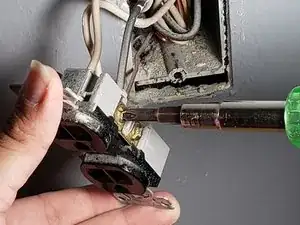

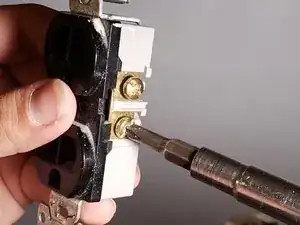

Hook each black wire around a copper screw, with the hook clockwise, and tighten the screw down.
-
-
-
Hook each white wire around a silver screw, with the hook clockwise. Tighten the screws down completely
-
-
-

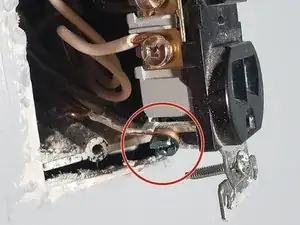

Hook the ground wire around the screw that is separate from all other screws, and tighten the screw down.
-
-
-

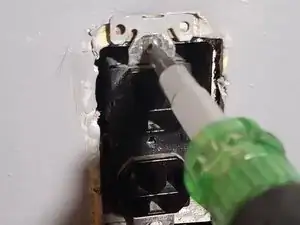

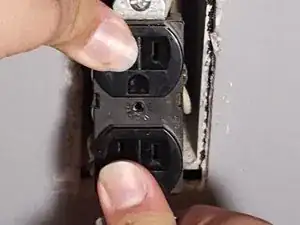

Fully tighten the screws on the top and bottom tabs, positioning the outlet so that it is straight, vertically.
-
-
-
Retrieve the outlet cover plate, and tighten the middle screw to the middle of the outlet.
-
