Electrohome EAAC475 Display Replacement

Geschrieben von: Sohail Khatri
  • Kommentare: 0
Electrohome EAAC475 Display Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace a faulty display or fix the wire connection between the circuit board and the display in an electrohome EAAC475 .

  1. XFDb1OVYqNGONIaF
    XFDb1OVYqNGONIaF
    3wDLevhIGvDI4xEM

    • Remove the 10 mm Phillips #1 screw from the battery cover.

    • Remove the battery cover.

  2. U6WpDqilOukLlxPF

    • Remove the flat lithium battery.

  3. 1XHnEkrF3vtQTDDP
    1XHnEkrF3vtQTDDP
    TWZMljLgpfWPkP61

    • Disconnect the radio from all power sources.

    • Remove the two 10 mm Phillips #1 screws from the bottom of the device.

    • Remove two 10 mm Phillips #1 screws from the back side of the device.

  4. 212OTpjVqZw2HIex
    212OTpjVqZw2HIex
    Mw6XvMyAimAJ2nuL
    WQFtEHmkbcrcNjbB

    • Carefully and slowly pull the lower case away from the rest of the device.

    • Do not completely separate the lower case. There are several wires connecting the two halves of the device.

    • Flip the device over to access the button assembly.

    • Slowly remove the button contact board from the assembly.

  5. hO4iDecJ5q3rQZEf
    hO4iDecJ5q3rQZEf
    iNmFr4kL1lmpwHO1

    • Remove the two 7 mm Phillips # 1 screws holding the buttons.

    • Remove the plastic buttons.

  6. 1POWdbuFmYStigXi
    1POWdbuFmYStigXi

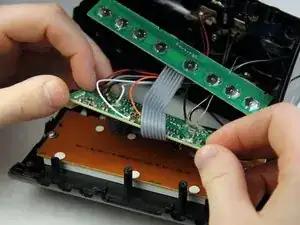

    UyjhOQmmwROCOt5C

    • Remove the two 8 mm Phillips screws supporting the circuit board.

    • Pull off the circuit board to access the panels below.

  7. Wek3BeHTDLlIRU6H
    Wek3BeHTDLlIRU6H

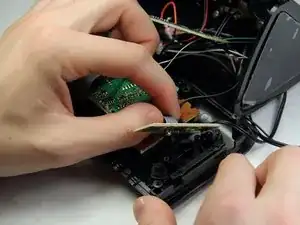

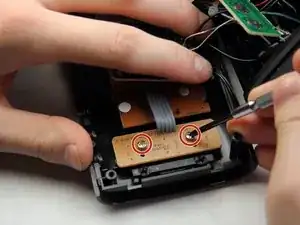

    1sWBZHf5U6dZwTUI

    • Remove the two 6 mm Phillips screws supporting the mini circuit board for the frontal buttons.

    • Remove the mini circuit board.

  8. LgLJYMpuSBLm24io
    LgLJYMpuSBLm24io

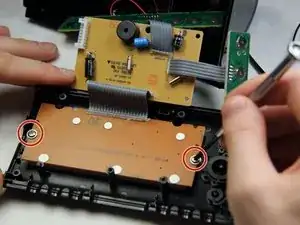

    MQQ6AyJ2Osr5XgQH

    • Move the now free circuit boards away from the display.

    • Remove the final two 7 mm Phillips screws securing the display.

    • Pull the display screen away from the casing.

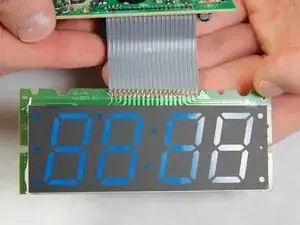

  9. vnGsqdOLNGdAPUyO

    • You have successfully accessed the display.

    • Replacing the display with a new one will be challenging as soldering and connecting micro wires are necessary.

Abschluss

To reassemble your device, follow these instructions in reverse order.
