Einleitung

Sometimes the focus lens can go bad or detaches from its holder. This guide will help you how to put it back in place or replace with a new one so that your electrohome EAAC475 works properly.

  1. XFDb1OVYqNGONIaF
    XFDb1OVYqNGONIaF
    3wDLevhIGvDI4xEM
    • Remove the 10 mm Phillips #1 screw from the battery cover.

    • Remove the battery cover.

  2. U6WpDqilOukLlxPF
    • Remove the flat lithium battery.

  3. IdZhlXFGYhNnkLBA
    • Slowly and carefully move one side away from another without detaching anything on the device.

  4. nhSMJo5Dl3UQNX1C

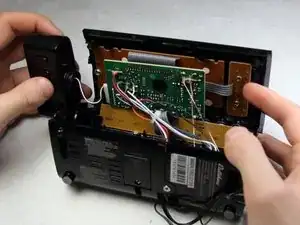

    • Detach the projector.

  5. EHmaK6GTKrHvZxDR
    EHmaK6GTKrHvZxDR
    xaOkLtDNYXhlUFgE

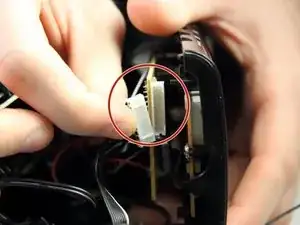

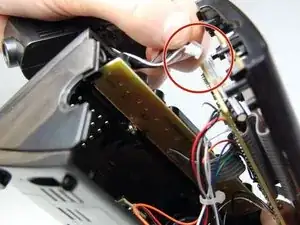

    • Unplug the projector's connector from the circuit board.

  6. sFoDKo3GsCQFYALt
    • Take off the rubber ring.

  7. ReMQvDODNLNCZReL
    ReMQvDODNLNCZReL
    1RCnMNbJiGmpFXoj
    Yy1JXQseJ5XUFt1J

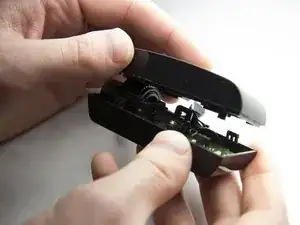

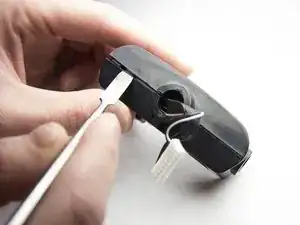

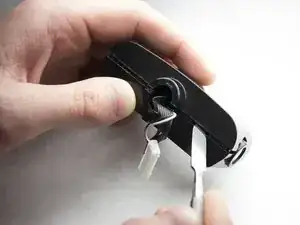

    • Using a metal spudger, pry into the crease until it separates enough to slip the spudger between the pieces.

    • Slide the tool along the crease to separate.

  8. AtxMpNXEKgW4Bhkl

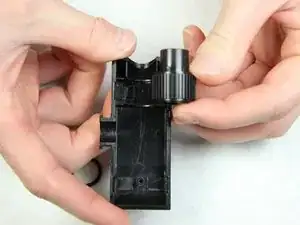

    • Take the lens out of the projector.

  9. mVXNkqIXfA1efGor
    • Separate the lens and the gear by unscrewing the gear.

Abschluss

To reassemble your device, follow these instructions in reverse order.
