Electrohome EAAC475 USB Port Replacement

Geschrieben von: Sterling Fulk
  • Kommentare: 0
Electrohome EAAC475 USB Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

Use this guide if your USB devices like smartphones are not charging from the port in your electrohome EAAC475. Also, you can use this guide to replace the port with the new one.

  1. XFDb1OVYqNGONIaF
    XFDb1OVYqNGONIaF
    3wDLevhIGvDI4xEM

    • Remove the 10 mm Phillips #1 screw from the battery cover.

    • Remove the battery cover.

  2. U6WpDqilOukLlxPF

    • Remove the flat lithium battery.

  3. 1XHnEkrF3vtQTDDP
    1XHnEkrF3vtQTDDP
    TWZMljLgpfWPkP61

    • Disconnect the radio from all power sources.

    • Remove the two 10 mm Phillips #1 screws from the bottom of the device.

    • Remove two 10 mm Phillips #1 screws from the back side of the device.

  4. 212OTpjVqZw2HIex
    212OTpjVqZw2HIex
    Mw6XvMyAimAJ2nuL
    WQFtEHmkbcrcNjbB

    • Carefully and slowly pull the lower case away from the rest of the device.

    • Do not completely separate the lower case. There are several wires connecting the two halves of the device.

    • Flip the device over to access the button assembly.

    • Slowly remove the button contact board from the assembly.

  5. hO4iDecJ5q3rQZEf
    hO4iDecJ5q3rQZEf
    iNmFr4kL1lmpwHO1

    • Remove the two 7 mm Phillips # 1 screws holding the buttons.

    • Remove the plastic buttons.

  6. HLIQrMtdXOo2Upak

    • Locate the screw holding the USB circuit board in place.

    • Take a Philips head screwdriver and remove the 10 mm screw.

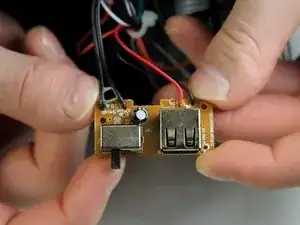

  7. likKesxotJ6osaaM

    • Upon removing the screw, the circuit board should slide right out to look like this.

    • The USB port is to the right in this picture.

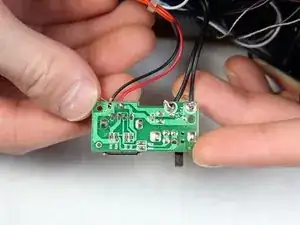

  8. biiicgmQFwwGXyW4

    • Find the pins of the USB port that are soldered into the circuit board.

    • Compare the new port with the old port to be sure which pins to work with.

    • Take the soldering gun and heat up the pins one at a time.

    • If you are not familiar with soldering, consult a more skilled individual or at least a how-to guide.

    • Use solder wick with each pin to remove the solder.

    • Remove the USB port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
