Einleitung
The Ematic EXP8 was released by Ematic in September of 2012 as an entry level tablet with a 9.7 inch screen.
-
-

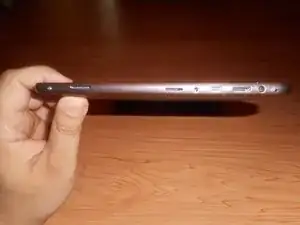

Place the device on a firm, flat surface. Be sure to have adequate room for putting aside tools, small parts etc.
-
-
-

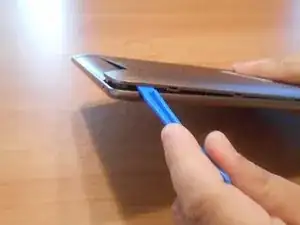

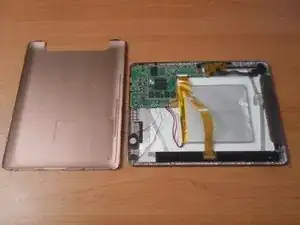

Gently wedge a prying tool under the back panel cover, releasing it from the latches inside.
-
-
-

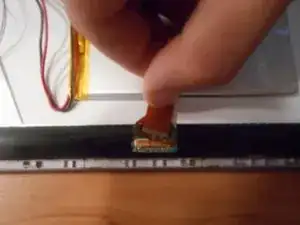

Remove the cable (yellow) from over the top of the battery by gently unhooking at it's insertion.
-
-
-
Use a prying tool to carefully dislodge the battery from the adhesive on it's under-side. Discard faulty battery.
-
-
-
Place new battery in the same position as the old one. Additional adhesive may be required to ensure the battery will not move.
-
-
-

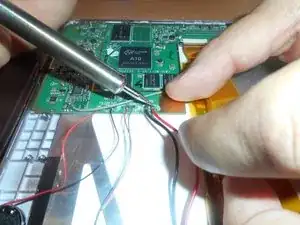

Using a soldering tool, connect the new positive and negative cables to their appropriate places on the motherboard.
-

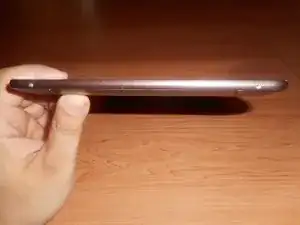

To reassemble your device, follow these instructions in reverse order.
