Ematic FunTab 3 Touch Screen Replacement

Geschrieben von: Amanda Davis

Kommentare: 3

Ematic FunTab 3 Touch Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

25 - 40 Minuten

Einleitung

If your device remains blank or seems to not power on when pressing the power button, a screen replacement may be necessary. If the device's display is damaged, this guide will show you the steps to replacing your defective screen. After following the necessary steps to remove the battery and motherboard, replacing the screen is very quick.

Werkzeuge

Schritt 1

Turn off the device before starting
To prevent damage, open the device on the side without the buttons.

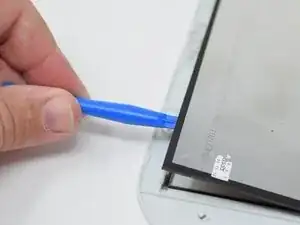

Insert the hooked end of the plastic opening tool in the gap between the screen and the back panel on the edge of the device.
Slide the plastic opening tool down the long side of the device.
Insert tool again and slide it down the long slide of the case a second time.

Schritt 2

Pull the back panel away from the screen.

Schritt 3

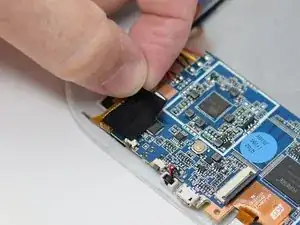

Remove the black tape to reveal the screen connector.

Schritt 4

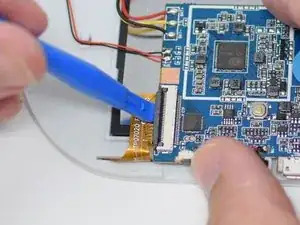

Flip up the retaining tab using the plastic opening tool.

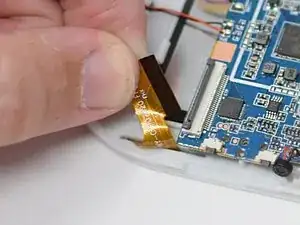

Pull out the screen wire ribbon to disconnect the screen and motherboard.

Schritt 5

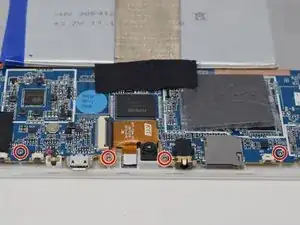

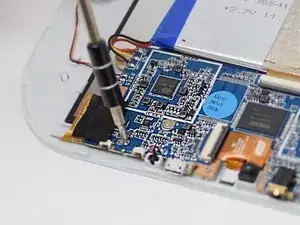

Using a PH 00 screwdriver, remove the four 4.5 mm screws that are holding the motherboard in place.

Schritt 6

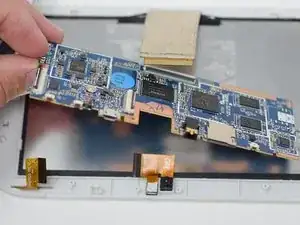

It is now safe to remove and replace the old motherboard with your new motherboard.
Close the black ribbon retaining tabs once ribbons are inserted during reassembly.

Schritt 7

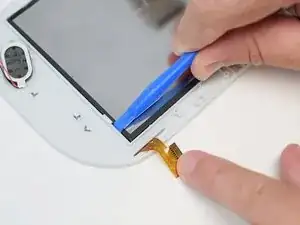

Insert the hook side of the opening tool between the case and display.
Press down on the tool until the screen is clear of the white retaining tabs.
Use the plastic opening tool to gently pry up the screen.
This is best done on the corner closest to the wire ribbon.
Continue prying around the screen until the screen pops out.

Schritt 8

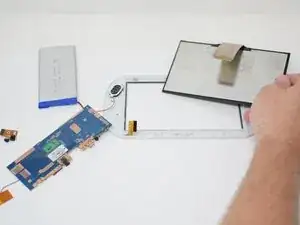

After the screen has come lose, remove it from the device.
When reassembling, make sure the screen locks in place, this may require extra pressure
Close the black ribbon retaining tabs once ribbons are inserted during reassembly.
