This repair guide will teach you how to replace the charging port in the Ematic Genesis 2 tablet.
Ersatzteile
-
-

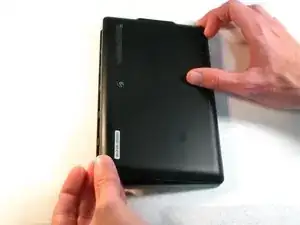

With your fingers, carefully pry off the back plastic casing. Starting at the corners is usually the easiest.
-
-
-

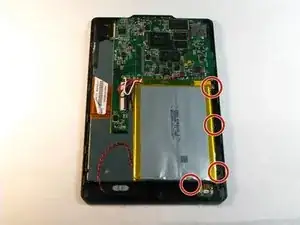

Remove all four screws surrounding the battery with the Phillips head screwdriver.
-

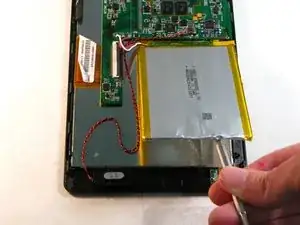

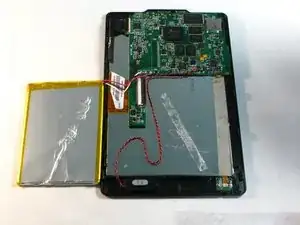

Carefully remove the battery from the device using the Metal Spudger tool to gently separate the battery by wedging it between the device and the battery.
-
-
-

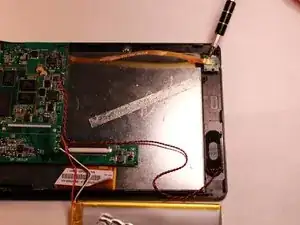

Remove both screws on either side of the audio jack using the Philips head screwdriver.
-

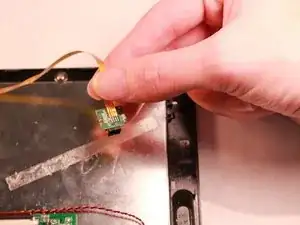

Detach audio jack from device.
-
-
-

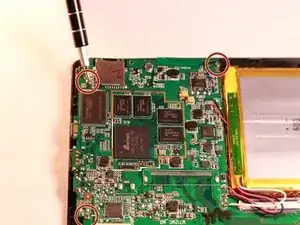

Remove the 3 screws surrounding the circuit board using the Philips head screwdriver.
-

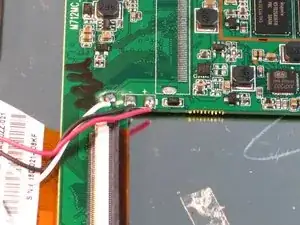

Carefully disconnect the circuit board from the device by detaching the copper flexible PCB ribbon cable.
-
-
-

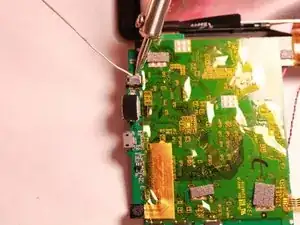

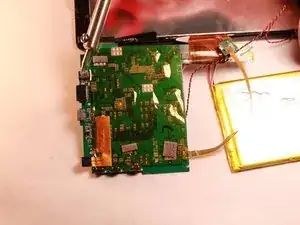

Use a soldering iron to heat the solder holding the charging port to the circuit board.
-
Remove the charging port from board using tweezers.
-
To reassemble your device, follow these instructions in reverse order.
