Einleitung

In this guide you will be learning how to fix the Ematic model FTABMP2 camera in three easy steps. A warning though is when taking the Ematic apart use care with parts as well as unplugging components from the motherboard also make sure you discharge yourself from static by touching metal to prevent damage to electrical components.

  1. vS3qsYZPiOJJEEbE
    vS3qsYZPiOJJEEbE
    OhZvWhyZ6rZVMmMY

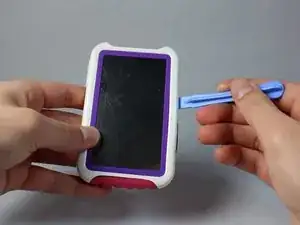

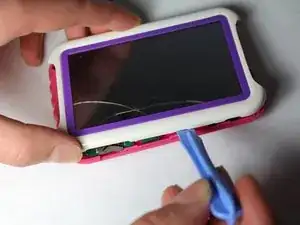

    • Use the opening tool to carefully pry open the case to reveal the motherboard underneath.

  2. hnIJ2WO4lbWDfLyx
    hnIJ2WO4lbWDfLyx
    NAXTBUWZLIKULicX

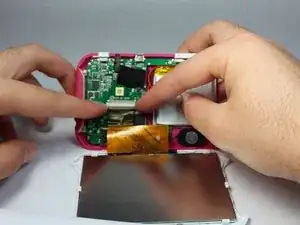

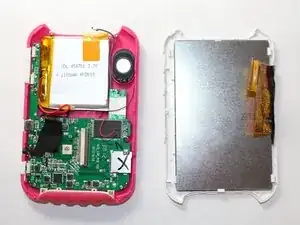

    • Flip open the retaining flap on the LCD cable.

    • Remove the LCD from the rest of the tablet.

    • Be careful when disconnecting the LCD cable.

  3. RHyNTMAOqwtAY2hU
    RHyNTMAOqwtAY2hU
    rCFEJLRyY33wFdGy

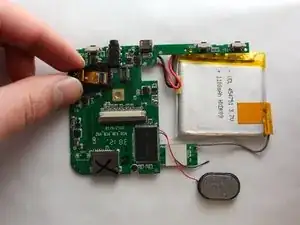

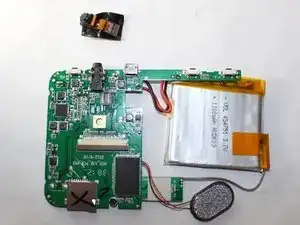

    • Carefully unplug the camera from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
