Ender 3 / CR20/PRO Y axis Linear rail kit install

Geschrieben von: AJ Pereira
  • Kommentare: 0
Ender 3 / CR20/PRO Y axis Linear rail kit install

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

  1. VDie1fDUOrd2ISSK
    VDie1fDUOrd2ISSK
    5ePfoTrKGEYudojF

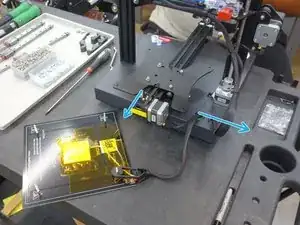

    • Remove all 4 bed leveling screws for the Bed heater.

    • Lift the bed heater and set it behind or to the left of the printer

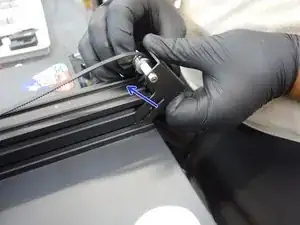

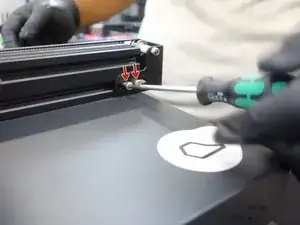

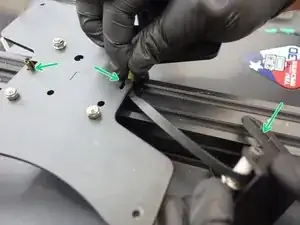

  2. UiNySMHLJgDEI42T
    UiNySMHLJgDEI42T
    5OIGPOjRmhTAgSVr
    GFT2SNPFw54aCnqE

    • Remove all 4 idler pulley bracket screws

    • Lift pulley bracket to remove tension on the belt

    • Remove Y belt

    • Remove idler pulley bracket and set aside all parts

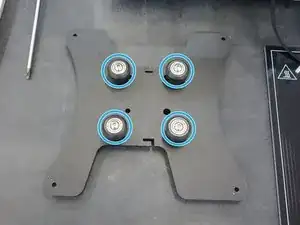

  3. YyFYbxkBwbQHldkG
    YyFYbxkBwbQHldkG
    uRxWr5WyyAonaQ3L
    iYa5lNIHMHYtx6dx

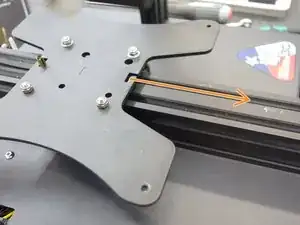

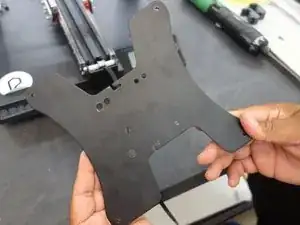

    • Slide off Y carriage of the front of the Y axis extrusion

    • Remove V-Slots wheels

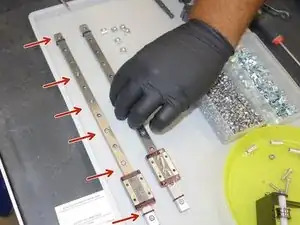

  4. BWQjdhRRJAmL3JaN
    BWQjdhRRJAmL3JaN
    1fLVRENiMm4UgsSm

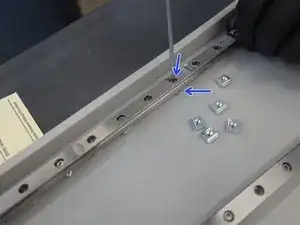

    • Remove Linear Rails for packaging and Wipe off excess oil with a lint free cloth

    • Preinstall M3x8 SHCS and Sliding Tnuts

    • Take Note to skip 2 holes between each fastener, and ensure to mirror this process from each end of the rail until you overlap in the middle

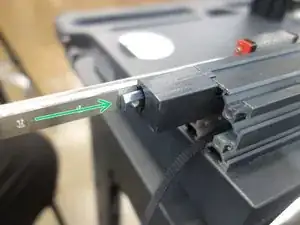

  5. XfkPNQYk3FgAl2Wf
    XfkPNQYk3FgAl2Wf
    Ejuw6gMDyDore6eF
    TnMnOMPxrkuOGXnE

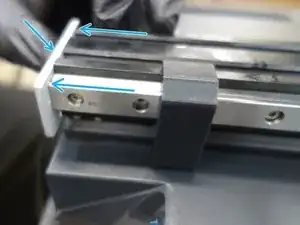

    • Note Sliding in the Linear rails do not allow rail block to slide off the end of the rails.

    • Insert Printed T-nut guide to help with sliding the rail into the top slot on the Y axis extrusion

    • Slide the rails into the top T-slot

    • Aline rails with the end of the extrusion using one of the included stiffener plates as a stop

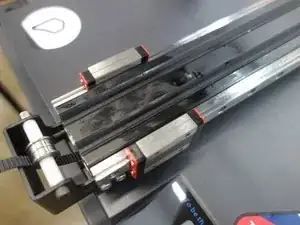

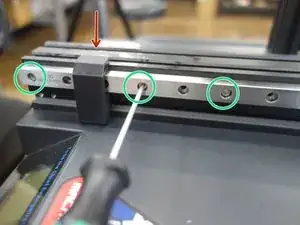

  6. CSGcTJFNPYWZ5FTP
    CSGcTJFNPYWZ5FTP
    26SchYbLo1aHmXFF

    • Note when sliding on Rail alignment Jigs do not allow Linear rail block to slide off the end of the rails.

    • Tighten the M3 mounting bolts to the front of the rail to the back on both sides

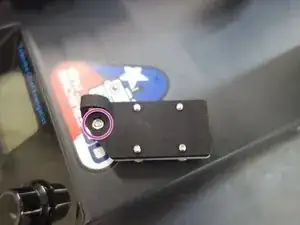

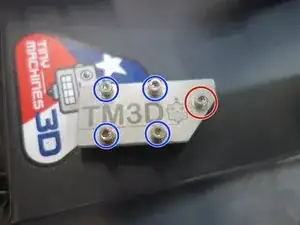

  7. JjnfIqlksAYEyOQy
    JjnfIqlksAYEyOQy
    hYelIW5Kmrdk51pR

    • Linear rail Block mounting hardware Per rail block mounting hole

    • M3x12 SHCS

    • M3 Flat Washer Per hole

    • Split lock washer

    • Stiffener plate 5th hole Screw (M3x10 SHCS with M3 washer)

    • M3 Hex nut

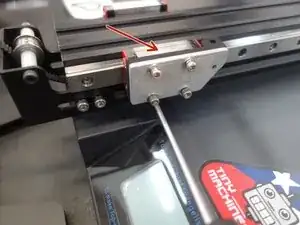

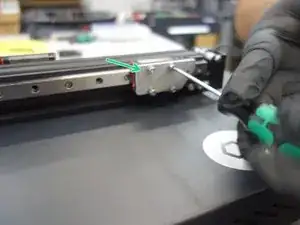

  8. r16gvmFbsTHQBtFp
    r16gvmFbsTHQBtFp
    nbyvvAPYAPadn3jO

    • Right side

    • Left side

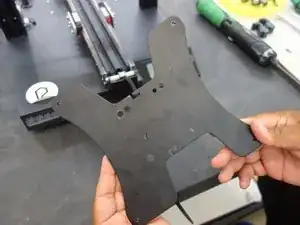

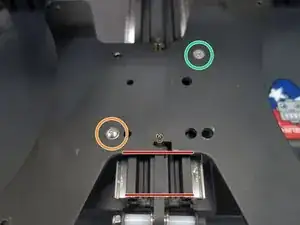

  9. Ns6sruQPUsYOGFXu
    Ns6sruQPUsYOGFXu
    t6DaIuSKE2VoSuYE
    E5mnZlMP1FRH4L3E

    • M4x10 FHCS

    • M4x12 BHCS

    • M4 washer

    • M4 washer large OD

    • M4 FHCS screw first. Then attach the M4x14S BHCS screw with the washer Stack.

    • Slide the Y Carriage forward and check that Y Carriage is parallel to that front of the Y extrusion. Then tight the screws fully.

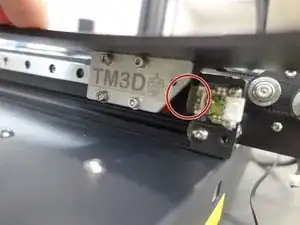

  10. 1MTBDRdbr5s5x2iO
    1MTBDRdbr5s5x2iO
    xjdkUH5W2FBTkObi
    1pP4nNgEFygRRTDB

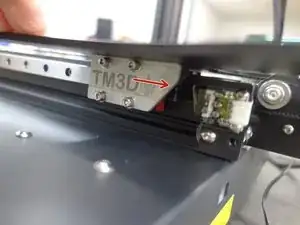

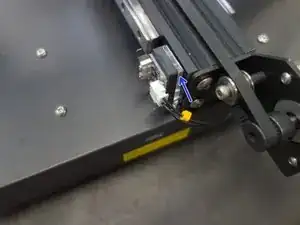

    • Install this spacer between the Endstop bracket extrusion

    • Check that the y endstop is triggered by the Adaptor plate

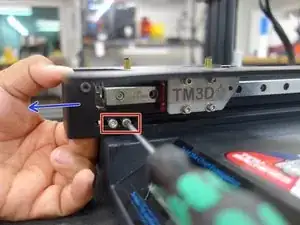

  11. AnvdyRRafhYMaXVc
    AnvdyRRafhYMaXVc
    pBT4WTj2LojXIFFr
    DyVucjZfrAQyXT1E

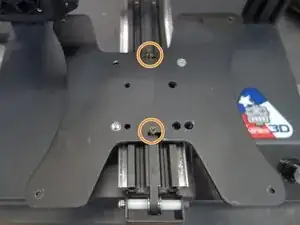

    • Re-install idler pulley bracket

    • Re-install Belt back into the tab slots

    • Pulley idler pulley bracket forward to tighten the belt.

    • Then tighten mounting screws on both sides

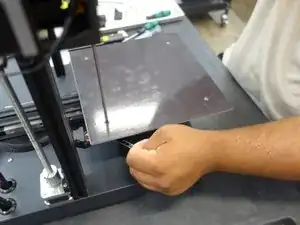

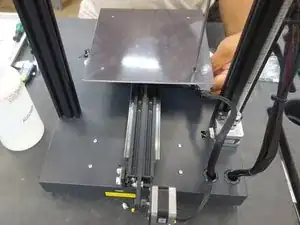

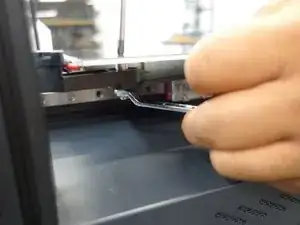

  12. E5LiLApZHLxhWRFB
    E5LiLApZHLxhWRFB
    4OJcJxTPY1ntRNrk
    FeCNNQCpxaKLwmLI

    • CR20 Pro

    • Reinstall: bed heater plate, Solid bed mounts, Nylock nuts or bed leveling knobs

    • Ender 3 and CR20

    • Reinstall: bed heater plate, bed leveling springs and bed leveling knobs
