Epiphone Les Paul Special Input Jack Replacement

Geschrieben von: Peyton Deane
  • Kommentare: 0
Epiphone Les Paul Special Input Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 Minuten

Einleitung

This guide will take you through the process of replacing the input jack of a Epiphone Les Paul Special.

The input jack is the component in which you insert the instrument cable. If your input jack is faulty you may experience the sound cutting in and out as you play or possibly no sound at all.

It should be noted that it may not always be the input jack, but instead the instrument cable. Before trying to replace the jack, try using another cable just to make sure.

  1. 5gAJKqCX5EuSeGHV

    • Using a Phillips #1 screwdriver, remove the four 7 mm screws holding the input jack cover.

  2. LDvm2aPv4C5lQIl1

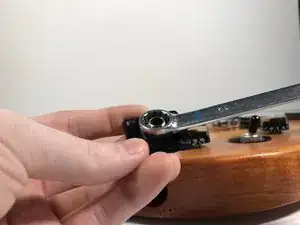

    • With a 12 mm wrench, remove the nut holding the input jack in place.

  3. hBe5FVFYLTmdUNjV
    hBe5FVFYLTmdUNjV
    4xjadc1SY2oeadPI

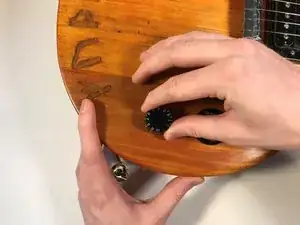

    • Lift off the tone control knob.

  4. 3dNCwMdMaQMSW6Rf

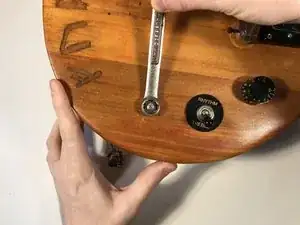

    • Using an 11 mm wrench, remove the nut of the tone control.

  5. siAeK5FPNQivtYnE

    • With a Phillips #1 screwdriver, remove the three 7 mm screws holding on the back plate.

  6. XFbkxwbOVuv2LVke
    XFbkxwbOVuv2LVke
    KwBDChM2YWoVhZUx

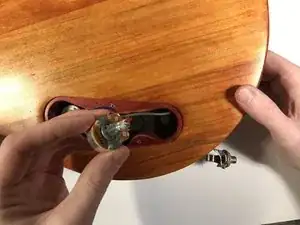

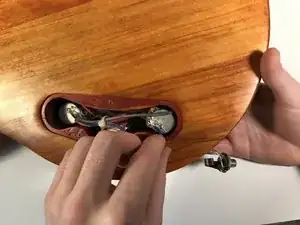

    • Pull out the tone control.

  7. AOZAZOeycrxmZQdW
    AOZAZOeycrxmZQdW
    VpLe6VSXQ1fcJLRt

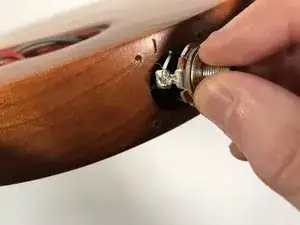

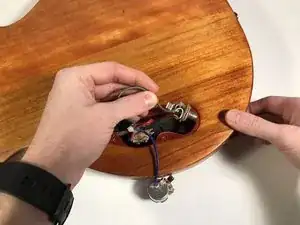

    • Push the input jack through the body and pull it out.

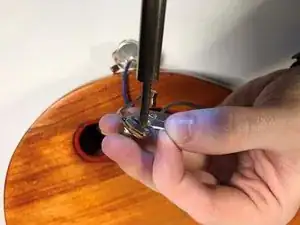

  8. vLqsXbLDauXGCXZM

    • The soldering iron is very hot. Avoid contact with skin, as well as the body of the instrument. When not in use, place it on a soldering iron stand.

    • Desolder the wires from the input jack.

  9. JBSBFTGVpMBlxhfn

    • The soldering iron is very hot. Avoid contact with skin, as well as the body of the instrument. When not in use, place it on a soldering iron stand.

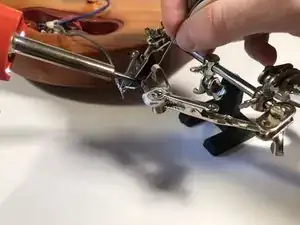

    • Solder the wires to the input jack.

    • Repeat steps 7-1 in reverse order to put it all back together.

Abschluss

To get everything back into its original place, follow steps 1-7 in reverse order.
