Einleitung

If no wireless functions are responding, the projector’s wireless connection board may be broken. This component is located inside the projector above the supply power box which is located near the projector lens.

  1. evmtVfdxTXigVVcH
    evmtVfdxTXigVVcH
    ZNwM2AT1oRrBZqDl
    XtQbBDmvTq4D1poX

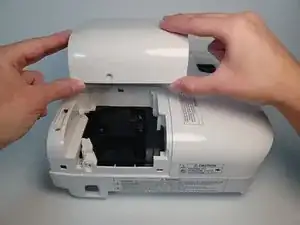

    • Disconnect and cool the device to room temperature. Failure to do so may result in electric shock or minor burns.

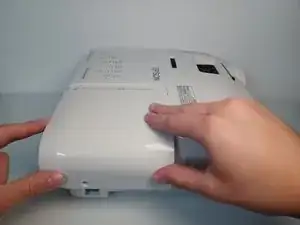

    • Orient the Epson Home Cinema 2150 so that the large indented panel faces your direction.

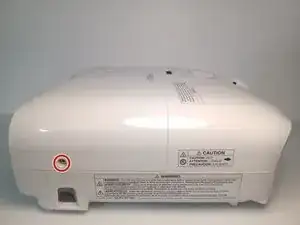

    • Unscrew the single 6mm Phillips#2 holding screw from the access panel.

    • Slide the panel horizontally, then lift up to remove the access panel.

    Great job identifying your tools under the “Tools” section. Make sure it’s correct for your intro too.

    Naomi Zaldana -

  2. bae2Cx3DQe5GPLOT
    bae2Cx3DQe5GPLOT
    qnBPC1spDMqmYcNv
    qfTcM4SSXI1LGUGd

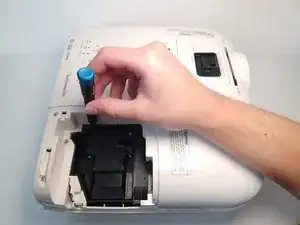

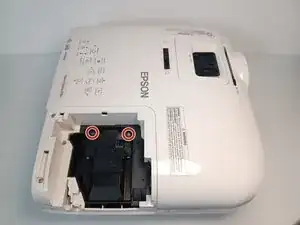

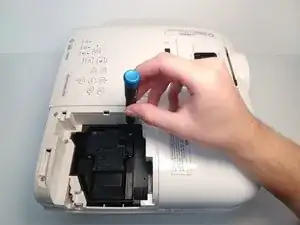

    • Loosen and remove the two screws holding the lamp.

    • Remove two 9 mm Phillips #2 screws.

  3. SmYqsTVLBxnYObaY
    SmYqsTVLBxnYObaY
    hPBIMmyAccOaU3Tr
    HYoXVjBSMyBuy4Pm

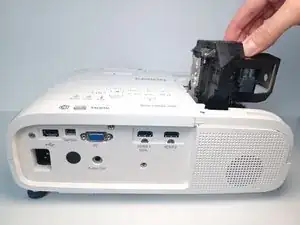

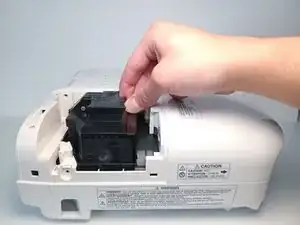

    • Using four fingers, pull upwards on the lamp's plastic casing.

    • You may feel some resistance when pulling the lamp.

    We noticed these steps are exactly like the first 3-4 steps of your other guides. We would recommend you to make this a prerequisite guide for those 3-4 steps (mostly unscrewing to open the device up) and then reference them before starting the other replacement guides.

    Naomi Zaldana -

  4. ZxCtHSy4q6fGvTCi
    ZxCtHSy4q6fGvTCi
    gRiYh5O5lwB3mKFp
    JyDbYjNMGoZWkUom

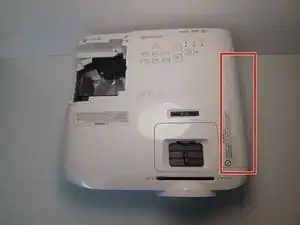

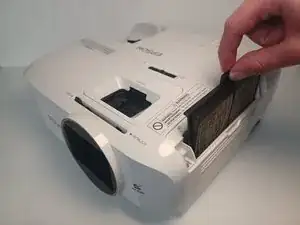

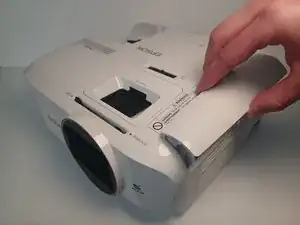

    • Remove the air filter cover. Grip the piece with two fingers above and below at the center.

    • Grab the air filter from the protruding tab and pull the filter out.

  5. KRbPWWNOTDgmKxUY
    KRbPWWNOTDgmKxUY
    LwSAiPrl1OKmVwnc

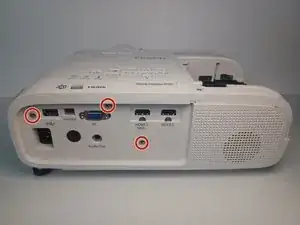

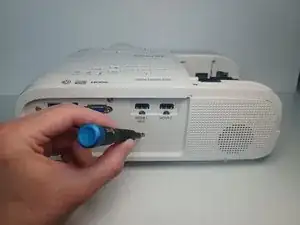

    • From the back of the projector remove three 6 mm Phillips #1 screws.

  6. HNChvVMk4s3cSROs
    HNChvVMk4s3cSROs
    Gf6XuhYfhrZFjupJ
    ukxKplZfIxNGTaXX

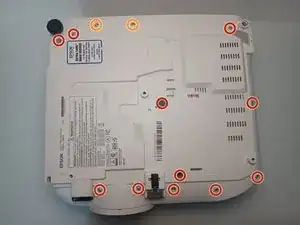

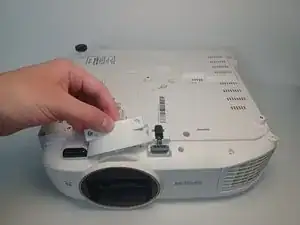

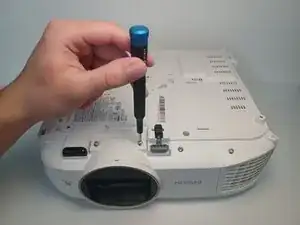

    • From the device's underside, remove eleven 9.5 mm Phillips #1 screws.

    • Remove two 6 mm Phillips #1 screws.

    • Pull off remaining plastic molding.

  7. EbwHKYWSbbiOvjSe
    EbwHKYWSbbiOvjSe
    HAC5fcR1HdLOrGFb

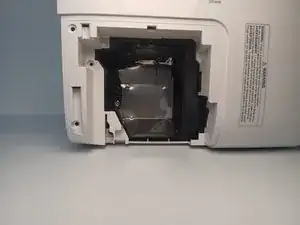

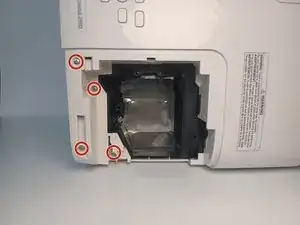

    • From the lamp access slot, remove four 9.5 mm Philips #1 screws

    4 screws to be removed but only 3 are marked. Because it may not be visible, simply mark where it is hiding for the user to know where to look.

    Naomi Zaldana -

  8. MTNujGEBc4UEeoNL
    MTNujGEBc4UEeoNL
    IveRfMUKBDvhmG43
    gAhxAa5cA4YyCl1Q

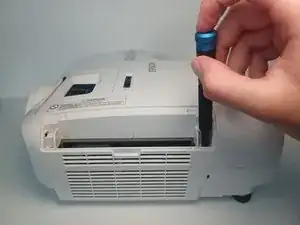

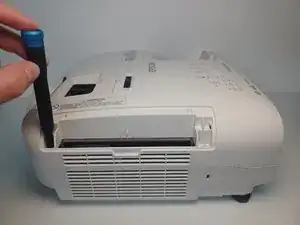

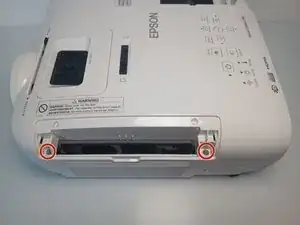

    • From the filter slot, unscrew two 9.5 mm #1 screws.

  9. SenfiE1yAjYTpYnV
    SenfiE1yAjYTpYnV
    IEWkuCFoLmLK6lkj
    wiiPShGKbFLTIbXD

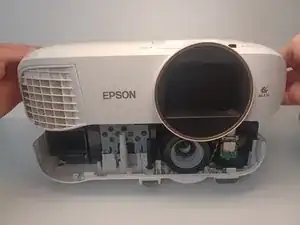

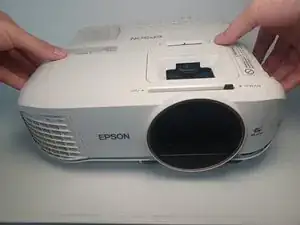

    • Partially lift the top portion of the device housing.

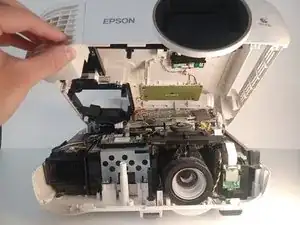

    • Lifting too far or too hard may damage any cables between the housing and the motherboard.

  10. VhZVfrSFixyAUo6d
    VhZVfrSFixyAUo6d
    gjvq1j4ffCaAZdZF
    WVVlPDESB5hZKRiL

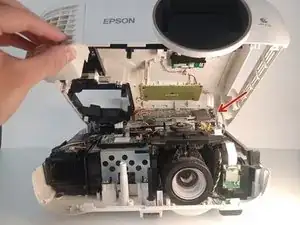

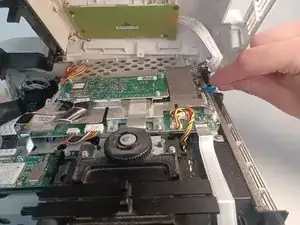

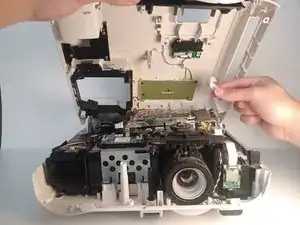

    • Disconnect the ribbon cable from the motherboard.

    • Ribbon cables are delicate. To avoid unnecessary stress to the cable, pull on the cable with the flat surface of two fingers.

  11. qh1GGVPwcOveIlJb
    qh1GGVPwcOveIlJb
    5f6GbRh31taZUIxm

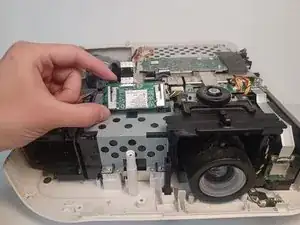

    HJgWboOdyxuuS4Wj

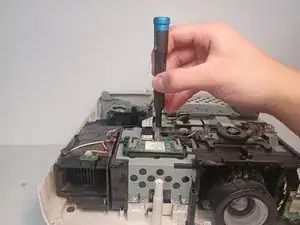

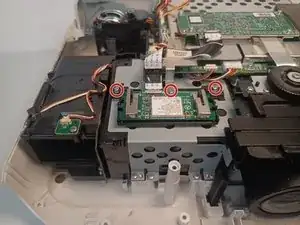

    • Remove three 5 mm Phillips #1 screws.

  12. NPllsZlUhsTvjUfD
    NPllsZlUhsTvjUfD
    FAHYOdjYJQxUFvLI

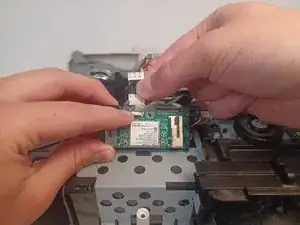

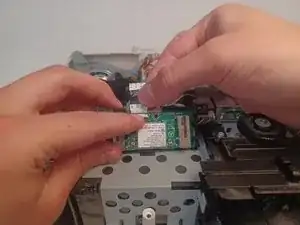

    • Press on the metal connector and firmly pull on the remaining ribbon cable.

  13. efdSxcHGbNxmpvyQ
    efdSxcHGbNxmpvyQ
    2JRU5idctyfUSKtb
    qXotB2wTEkPCEd1C

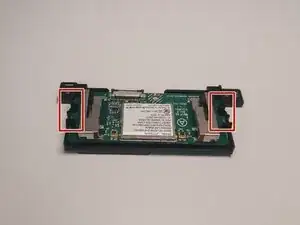

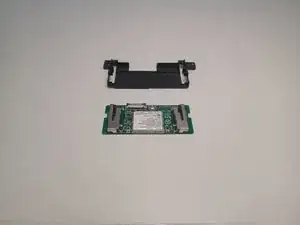

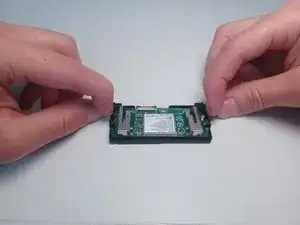

    • Pull the clips on the case with two fingers on opposite ends and remove the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
