Make sure the camera is turned off here.
-
Remove batteries from the battery compartment located on the bottom of the camera
-
Remove SD card for the card reader compartment located on the flat side (left side) of the camera
-
-
-

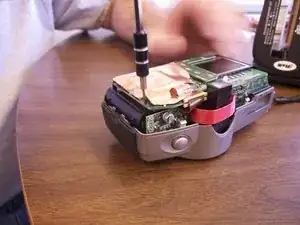

Remove 3 screws on the flat side of the camera
-
All silver screws go into the side of the camera that is silver
-
All black screws go into the side of the camera that is black
-
-
-
Remove 4 screws from the bottom of the camera
-
All silver screws go into the side of the camera that is silver
-
All black screws go into the side of the camera that is black
-
-
-
Separate the front and back pieces of the cameras plastic casing using a spudgerm here.
-
WARNING: When pulling the front plastic casing, be careful of the wire that are connected to the aperture control
-
Use minimal force so that the plastic casing does not break
-
When separating the small silver sliding indicator for view/off/playback may fall out
-
The plastic viewing window located on the top of the camera may also become lose and fall out
-
-
-

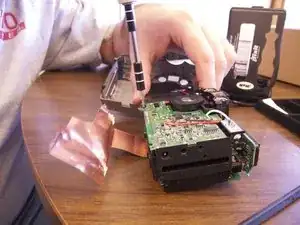

Remove copper sheet from the front paneling and back.
-
You will need to use a spudger to unsolder the copper paneling
-

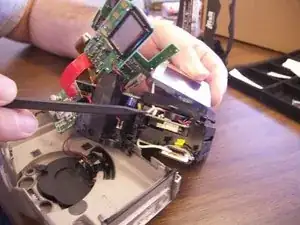

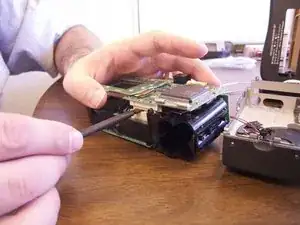

Use the spudger to separate the back circuit board from the camera
-
-
-

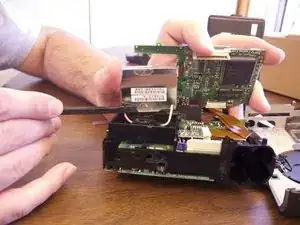

The picture viewing screen is glued to the backing as well as wired in with pink and white wires.
-
Exert minimal force required to pull the screen loose from the camera
-
Remove the pink and white wiring from the internal paneling. These wires are soldered in
-
Remove the orange data hookup cable which feeds into the back circuit board
-
-
-
Once all wires have been detached and the old screen has been removed place the new screen into the camera.
-
Insert data hookup into the back of the camera and into the new screen
-
Re-solder the new pink and white wire onto the internal circuit board
-
To reassemble your device, follow these instructions in reverse order.
