The scanner motor powers the physical movement of the scanning mechanism. This mechanism moves across an entire document, copying its contents, so that the printer can scan, fax, and/or print a copy of the original document. This motor may stop working due to a broken fuse or faulty connection and ultimately may need to be replaced.
Werkzeuge
-
-

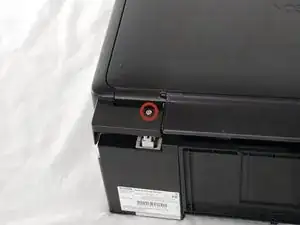

Locate the 3mm Phillips #0 screw in the top left corner of the printer.
-
Remove the screw using a Phillips head screwdriver.
-
-
-

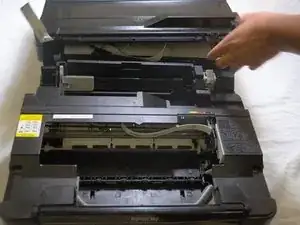

Flip the top of the printer up so that you can see the inside of the printer.
-
There is a white ribbon cable in the right top corner of the printer.
-
Make sure that the white ribbon does not come detached from the right side of the printer.
-
-
-
Lay the scanner face up so you can access the under side, and place something, such as a piece of Styrofoam, underneath of it so that the white tape does not become detached.
-

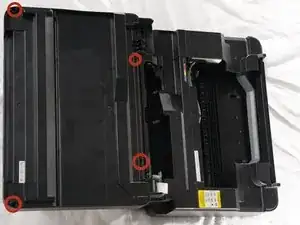

Locate the four 3mm Phillips #2 screws along the edge, and remove all of them.
-
-
-

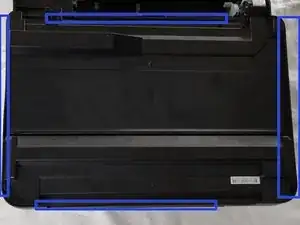

Locate the seam on between outer shell of the printer and the inside of the printer.
-

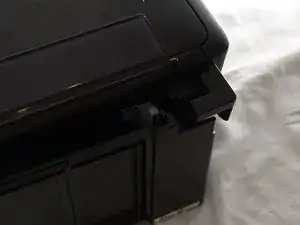

Starting from the top of the printer, use the plastic opening tool to slowly pry the scanner apart along the seam.
-
-
-
Detach the bottom of the scanner.
-

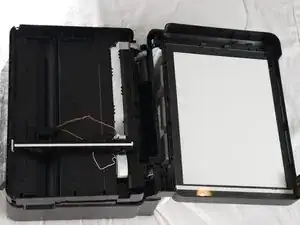

Flip the bottom of the scanner over so that it rests on top of the printer.
-
-
-

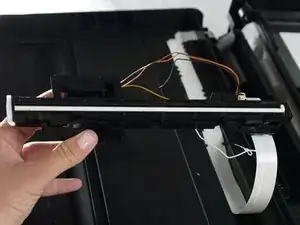

Gently lift the scanner bar in order to remove it from the scanner.
-
Detach the white ribbon cable from the scanner bar.
-
-
-

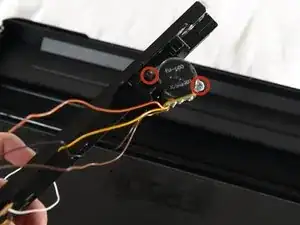

Remove the two 3mm Phillips #2 screws on the underside of the scanner bar attached to the silver motor.
-
Remove the motor from the scanner bar by gently pulling the motor upwards.
-
To reassemble your device, follow these instructions in reverse order.
