This guide shows how to remove the paper eject frame assembly Constant paper jams might be caused by a faulty paper eject frame assembly. This process requires the knowledge of how to use basic tools.

  1. lccTL6SZ3kbvrUG2
    • Turn off the printer.

    • Disconnect all data connections coming into the printer such as USB, networkd cables, firewire, etc. as well as removing the power cord.

  2. QYteIeiAr3eYANHf
    QYteIeiAr3eYANHf
    YacUSN6hThuTEpFy
    • Locate the IEEE cover in the back.

    • Gently slide the cover to the right to unlatch, then pull to remove it.

    errore avevo chiesto informazioni x sostituire la batteria al cellulare HUAWEI Mod. LX1

    Luigi Martinenghi -

    avevo chiesto informazioni x la sostituzione della batteria cellulare HUAWEI Mod.LX1

    Luigi Martinenghi -

  3. C4dBWDDOARfU6BKl
    C4dBWDDOARfU6BKl
    Zobe3GQ4ytZXQuXj
    • Using a Phillips #2 screwdriver, remove the four 10 mm screws shown.

    • Remove the 6 mm screw that holds the rear housing in place.

  4. iSFOcWcCsIxvdqON
    iSFOcWcCsIxvdqON
    BfSTmc334IPJEjIW
    • Remove the rear housing by pulling it backwards.

  5. ZRQjtn2Y1AjXrlTx
    ZRQjtn2Y1AjXrlTx
    VS6Om6BsNLdA6RX1
    q1rUDpQs4M13aSXO
    • Insert a plastic opening tool into the cutouts of the lower housing.

    • Release the two tabs of the side housing by lifting the tool in an upward motion.

    • Remove the side housing by pulling it outwards.

  6. vfiVSPXdkGxi1FFa
    vfiVSPXdkGxi1FFa
    fEIKc1TbHiBORjdF
    • Both side housings are attached by the same type of mechanism.

    • Using the same method, remove the other side housing.

  7. JyXjekvUHEsuITOZ
    JyXjekvUHEsuITOZ
    GHYP2VbWwuIIexap
    Twc3ylCxi3RZdNAd
    • Lift the paper support.

    • Open the printer cover and front cover.

  8. XgpHaunnOSVioafK
    XgpHaunnOSVioafK
    xxXUiIkZyPRmwsnn
    uD12N4KNMu1DRYHI
    • Remove the four 10 mm Phillips #2 screws from the sides of the printer.

    • Remove the three 6 mm Phillips #2 screws.

  9. iTMoHjNDg4EXjWr6
    iTMoHjNDg4EXjWr6
    auVkiwhoUQ5t3yOR
    • Detach the tabs from the pins on each side by pulling it outwards.

  10. tCKNoqZRVGbrTnYR
    tCKNoqZRVGbrTnYR
    5CcLsgUa3gDWxdMl
    • Remove the two 10 mm Phillips #2 screws on the front of the printer.

  11. ShQrsIGl1fSNefvJ
    ShQrsIGl1fSNefvJ
    2IXjV2g466oM1Ryu
    RTWbClacrIBJ6yJD
    • Disconnect the two cables on the side by carefully pulling it outwards.

    • You may need to gently rock the two cables up and down while pulling.

  12. GNbFiqQLlN4SnJv5
    GNbFiqQLlN4SnJv5
    4NKVJbuNDxa5hqHg
    • Remove the upper housing by lifting it upwards.

    • It's easier to lift the housing by gripping it from the bottom.

  13. AojbhBP6VJdWmbsw
    AojbhBP6VJdWmbsw
    be1XuUvkahkXBP3A

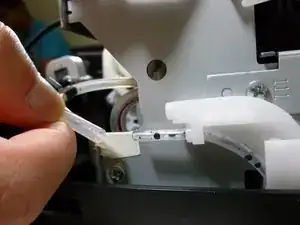

    • Start by emptying the ink tube.

    • Hold the left side of the ink tube in your hand.

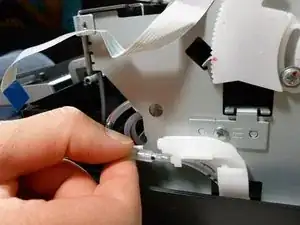

    • Pull the sides of the tube apart and empty the waste.

  14. ueNTskJUYVj4XFSC
    ueNTskJUYVj4XFSC
    gcJOl1UZsOWuQgq5

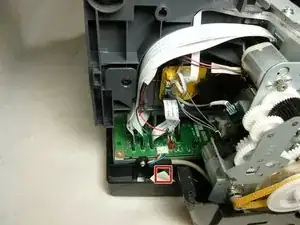

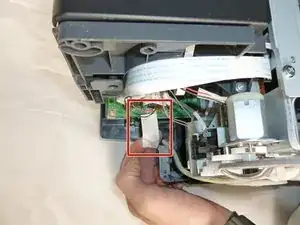

    • Remove the acetate tape that secures the connector cable.

  15. ACaNJ4E2AETqEfqe
    ACaNJ4E2AETqEfqe
    aQNvDYlOOvpQXVyN
    oZr2DPbX2pkHi4Vs

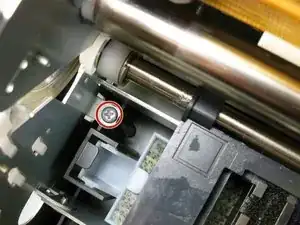

    • There are six screws that secure the printer mechanism.

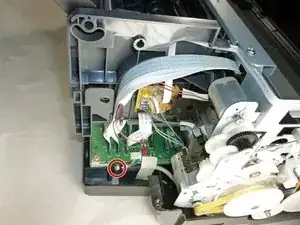

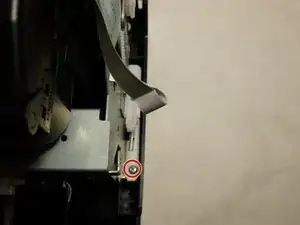

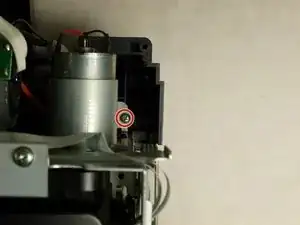

    • Remove the first three 10 mm screws that hold the printer mechanism in place using a Phillips #2 screwdriver.

  16. BLJokjjpQsBPHRSU
    BLJokjjpQsBPHRSU
    iHVvHapfZOj43rOu
    2GN5HAQUn2XYJhXV

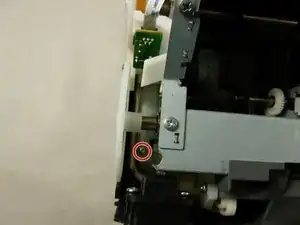

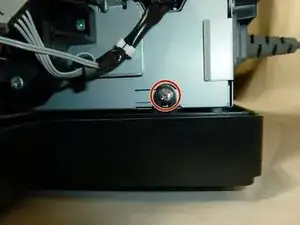

    • Remove the other three 10 mm screws that secure the printer mechanism using a Phillips #2 screwdriver.

  17. NoVIidJOpXF2ZirD
    NoVIidJOpXF2ZirD
    aGr2cTvUgWGy5lFW

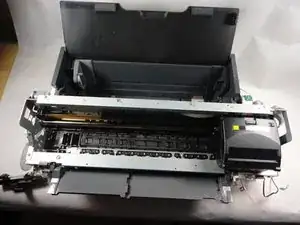

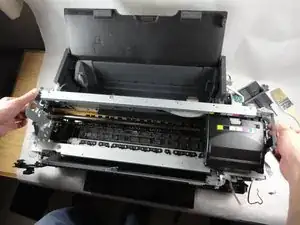

    • The printer mechanism is located on the lower housing.

    • Remove the mechanism by holding the handles and lifting upwards.

  18. 5v1WgC6Wil3En2kE
    5v1WgC6Wil3En2kE
    LtfTQMR21dVNkS4H
    Z4jwYoBnGJCOaOiy

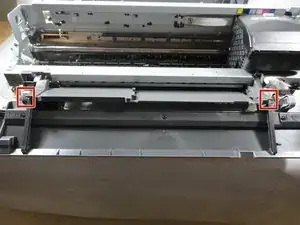

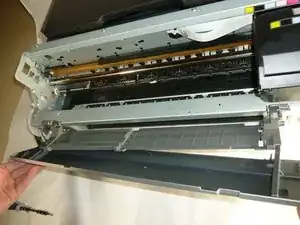

    • Remove the CD-R unit housing. Release the two attaching points to the tray base and then pull out the unit diagonally one side at a time.

  19. VeKkvNaHggM1qUll
    VeKkvNaHggM1qUll
    6hcmyocQweMtwAk6
    OOk5WxRbFCSIBlOq

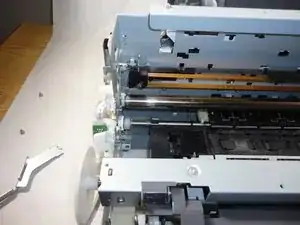

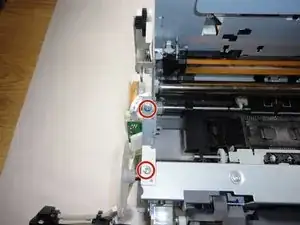

    • Detach the left frame support plate. Start by removing the two 6 mm screws that secure it and then pull it out by hand.

  20. ZqJs3FMj1HVdIMQQ
    ZqJs3FMj1HVdIMQQ
    VZTuTRNVkKbGkLos

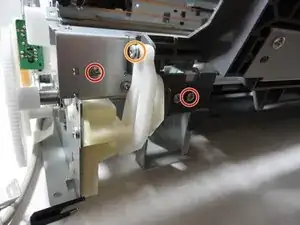

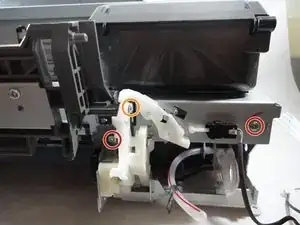

    • Remove the four 6 mm screws using the Phillips #2 screwdriver.

    • Remove the two 8 mm screw using a Phillips #2 screwdriver.

    • The screws are located on the lower sections of the printer.

  21. oFh4kN2BwTQCceBK
    oFh4kN2BwTQCceBK
    fFaAsay5dqK2BxyV
    Kr3xW3HeaQZttJMS

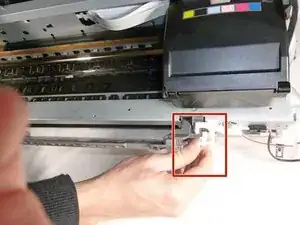

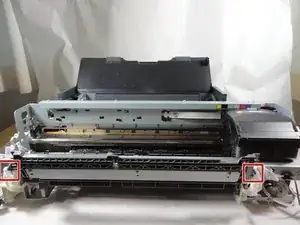

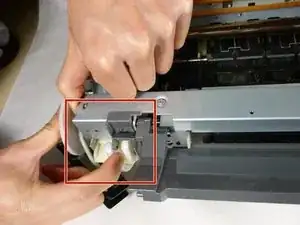

    • Two guide pins secure the paper eject assembly in place.

    • Pull out the two guide pins on the CD/DVD tray base.

    “Pull out the two guide pins on the CD/DVD tray base”?

    What are you talking about? What CD/DVD tray? THIS IS A PRINTER!!!

    pettersen -

  22. utgHeeUJ5x4SSoOV
    utgHeeUJ5x4SSoOV
    QM1iHQxTxMkyoY4C

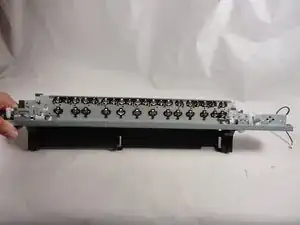

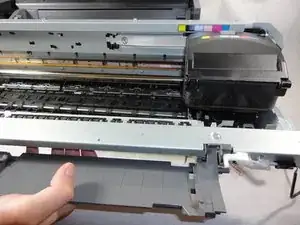

    • Remove the paper eject frame assembly by pulling it towards you.

Abschluss

To reassemble your device, follow these instructions in reverse order.
