Epson Stylus Photo 1400 Printhead Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide shows how to replace a printhead. Consistently poor print quality even after printing and replacing ink might be caused by a faulty printhead. This process requires the knowledge of how to use basic tools.

Werkzeuge

Ersatzteile

Printhead

Schritt 1

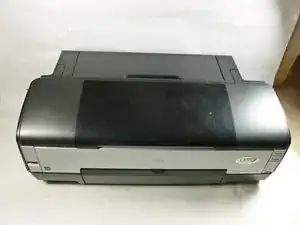

Turn off the printer.
Disconnect all data connections coming into the printer such as USB, networkd cables, firewire, etc. as well as removing the power cord.

Schritt 2

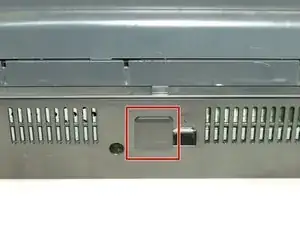

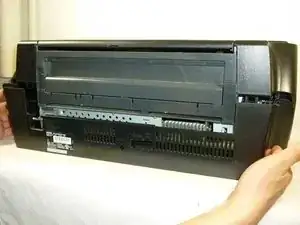

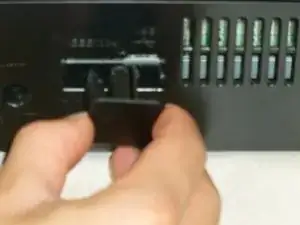

Locate the IEEE cover in the back.
Gently slide the cover to the right to unlatch, then pull to remove it.

errore avevo chiesto informazioni x sostituire la batteria al cellulare HUAWEI Mod. LX1

Luigi Martinenghi - 10/03/21

avevo chiesto informazioni x la sostituzione della batteria cellulare HUAWEI Mod.LX1

Luigi Martinenghi - 10/03/21

Schritt 3

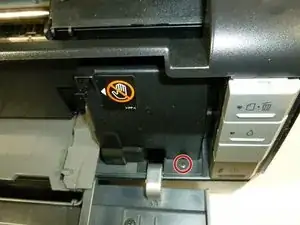

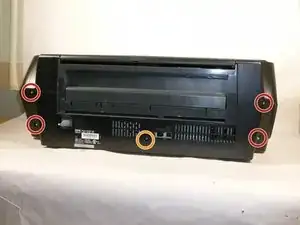

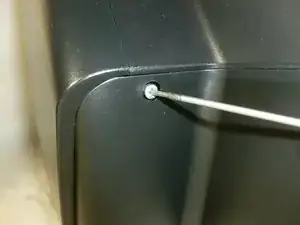

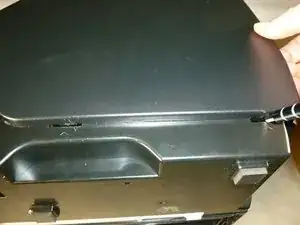

Using a Phillips #2 screwdriver, remove the four 10 mm screws shown.
Remove the 6 mm screw that holds the rear housing in place.

Schritt 4

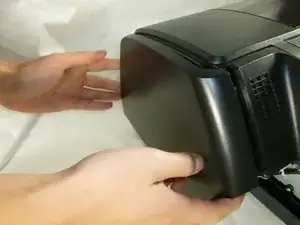

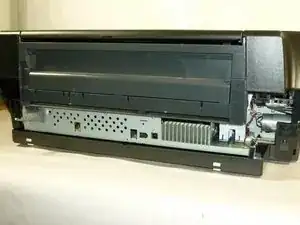

Remove the rear housing by pulling it backwards.

Schritt 5

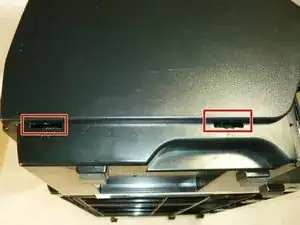

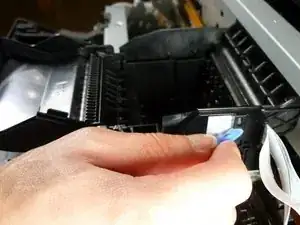

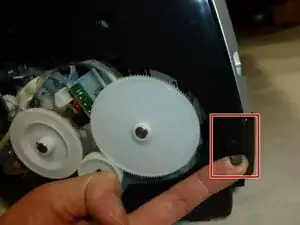

Insert a plastic opening tool into the cutouts of the lower housing.
Release the two tabs of the side housing by lifting the tool in an upward motion.
Remove the side housing by pulling it outwards.

Schritt 6

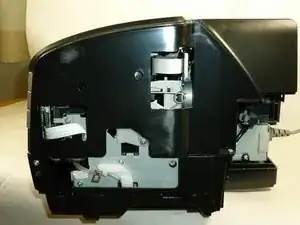

Both side housings are attached by the same type of mechanism.
Using the same method, remove the other side housing.

Schritt 7

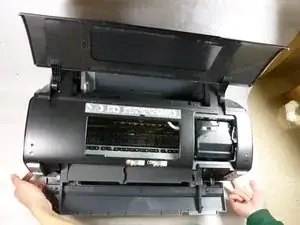

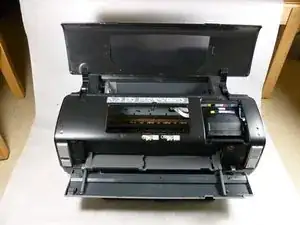

Lift the paper support.
Open the printer cover and front cover.

Schritt 8

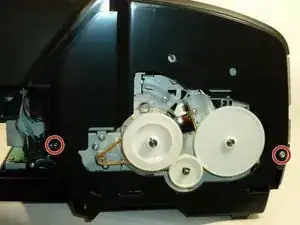

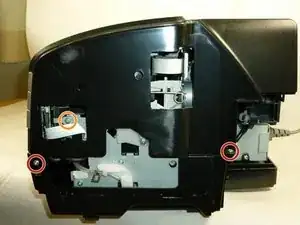

Remove the four 10 mm Phillips #2 screws from the sides of the printer.
Remove the three 6 mm Phillips #2 screws.

Schritt 9

Detach the tabs from the pins on each side by pulling it outwards.

Schritt 10

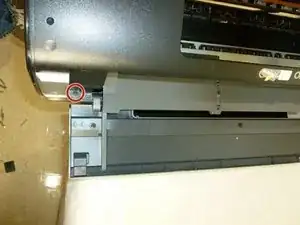

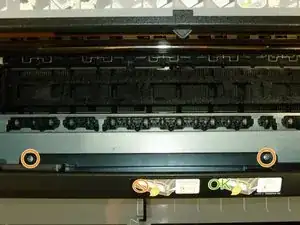

Remove the two 10 mm Phillips #2 screws on the front of the printer.

Schritt 11

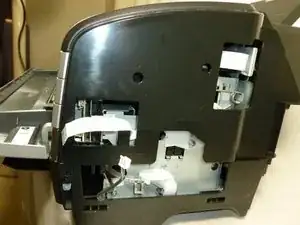

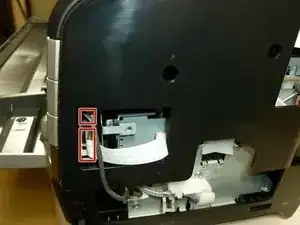

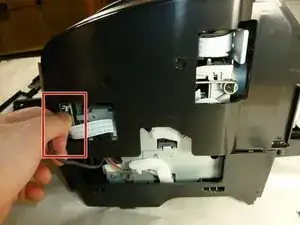

Disconnect the two cables on the side by carefully pulling it outwards.
You may need to gently rock the two cables up and down while pulling.

Schritt 12

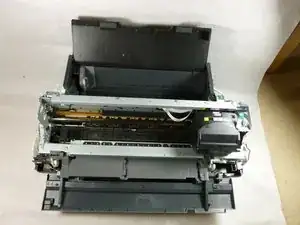

Remove the upper housing by lifting it upwards.
It's easier to lift the housing by gripping it from the bottom.

Schritt 13

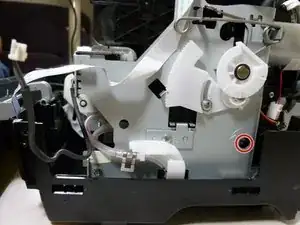

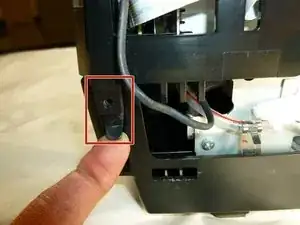

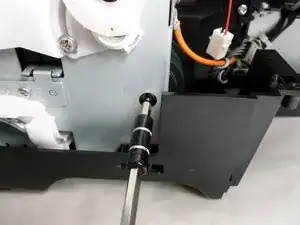

Insert a flathead screwdriver into the hole on the right side of the frame.
Turn the screwdriver counterclockwise until it stops.

insert a flathead screwdriver into the hole on the right side of the frame.

Rotate screwdriver counter clockwise until it stops. here is a question what does it mean when the plastic screw never stops? or gets tight, and just keeps spinning?

joe -

ok i removed the printhead to clean it, but once mounted back, the printer doesnt recognize the cartridges anymore. how do you think i can fix that ?

beubz - 05/06/14

I think there is a program needed to connect the head with the min board. I have seen it available but now I am looking I cant find it myself now....arrrggggg

andy - 04/12/14

Schritt 14

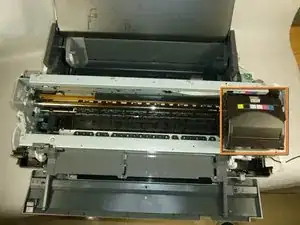

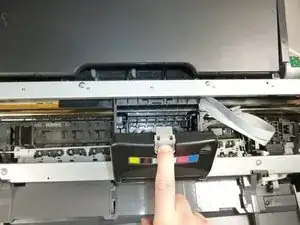

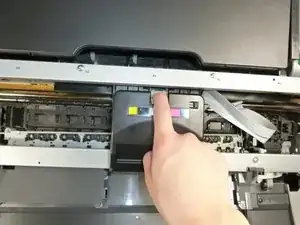

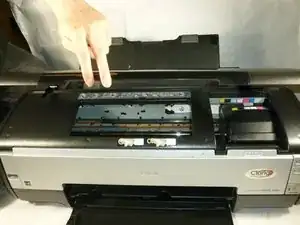

Move the carriage unit to the center.

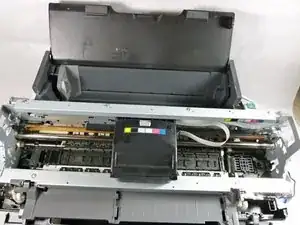

Schritt 15

Open the cartridge cover.
Remove all the ink cartridges inside.

Schritt 16

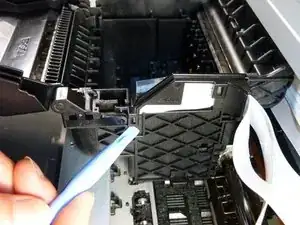

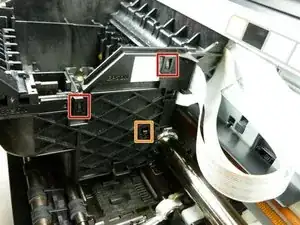

Using a plastic opening tool, disengage the two upper tab on the side of the carriage unit.
With a spudger or plastic opening tool, disengage the lower tab.

Schritt 17

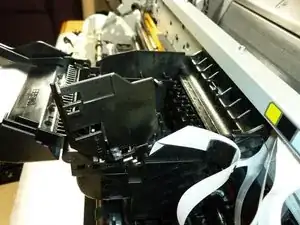

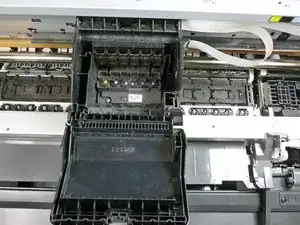

Slide the cover upward and rotate it around the hinge by 90°.

Schritt 18

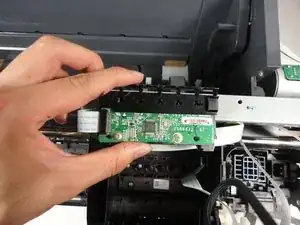

The CSIC assembly sits inside the carriage unit.

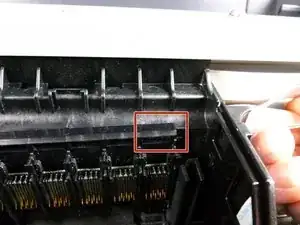

Reaching from the back of the carriage unit, disengage the two tabs that hold the CSIC assembly in place.
The tabs can be difficult to disengage. The second image shows the rear of CSIC assembly.
The third image shows where the tabs lock onto the carriage unit.

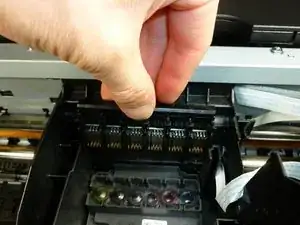

Remove the CSIC assembly from the carriage unit.

Schritt 19

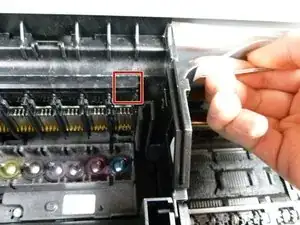

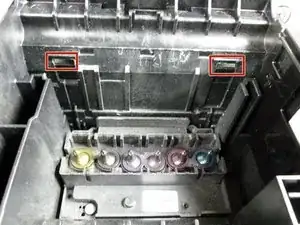

Using tweezers, disengage the right tab from the back right panel of the carriage unit.
Push the tweezers towards the front of the printer while pulling up on the right panel.
When the tab is disengaged, you can pull the panel upwards slightly to prevent the tab from engaging.

Schritt 20

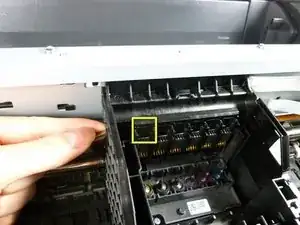

Using the tweezers, disengage the left tab from the back left.
Push the tweezers towards the front of the printer while pulling on the left side upwards.
When both tabs are disengaged, the part is slightly raised.

An easier way is if you have a hooked ‘weeding tool’ or hooked tweezers etc - there is a small hole near the bottom left corner of the yellow box in the picture. You can get the point of the hook in there and hook it forward to unclip it. I did this on both sides - worked a charm!

Simple ASCII diagram of clip from the side - (it goes up and clips over the top to the rear of the printer)

(rear) /^

I <- the hole will let you get in the side of here, pull forward to unclip.

\ ——-(print head, ink compartment)——

Scott Esplin - 17/09/17

Sorry ASCII didn't turn out very good!

The tilde ‘^’ should be immediately above the capital ‘I’ in the line below.

Scott Esplin - 17/09/17

A much easier way I found is to, slide the carriage to the left and stick a screw driver from the gap on the chassis just above the motor on the left and push to disingage, and then repeat the process for the right starting with pulling the carriage to the right.

Kingsley Tafon - 24/05/21

Schritt 21

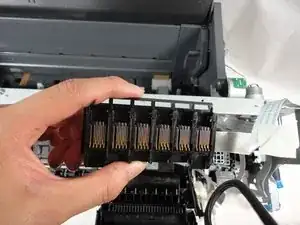

Lift CSIC assembly up and out of the Carriage Unit.

Schritt 22

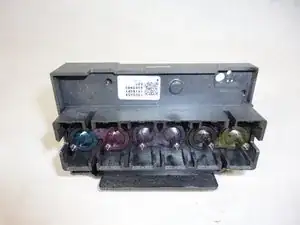

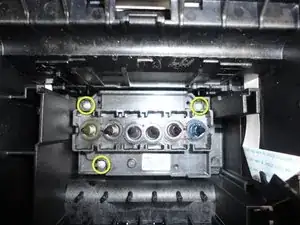

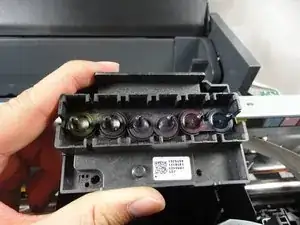

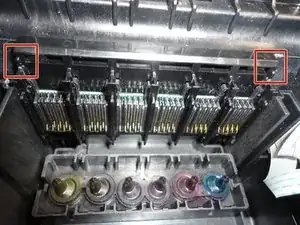

The printhead is the part with 6 nozzles.
Remove the three 8 mm #2 Phillips screws that secure the printhead.

Schritt 23

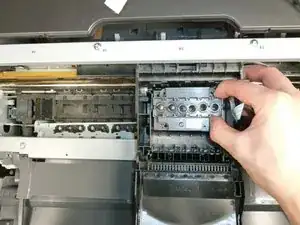

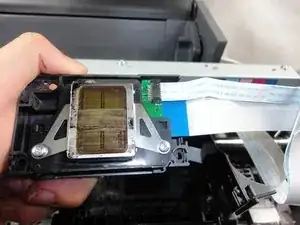

Remove the printhead from the carriage unit by lifting it up vertically.

Schritt 24

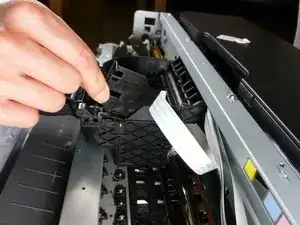

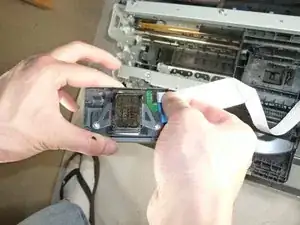

Disconnect the two ribbon cables on the back of the printhead.

Thank you ! great write up. Step 18: difficult was a understatement.

Thanks again R.L.

lair.roger - 20/10/20

Abschluss

To reassemble your device, follow these instructions in reverse order.
