Epson Stylus Photo 820 Driver Motor Replacement

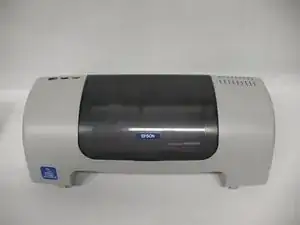

To remove the top cover of the printer, you have to first release it from several tabs.

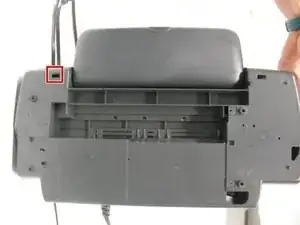

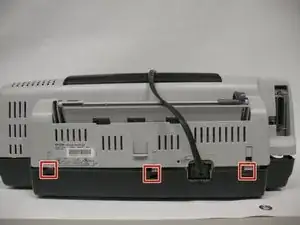

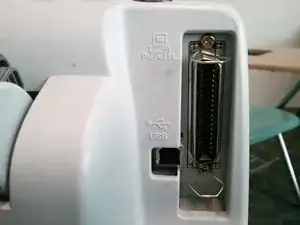

These three are the easiest tabs to remove. They are located on the back side of the printer.

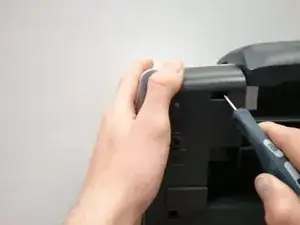

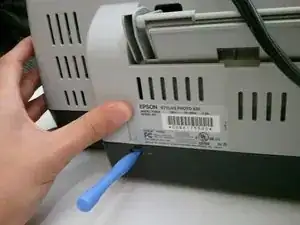

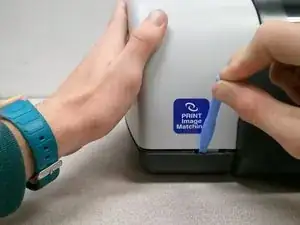

Push the tab in with one of the plastic opening tools.

Keep the tab pushed in by leveraging the tool between the tab and the hole. Pull up on the case so that the tab doesn't lock back into place.

Repeat this process with the furthermost right tab, then proceed with the middle tab.

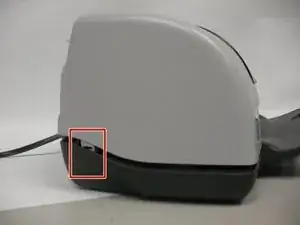

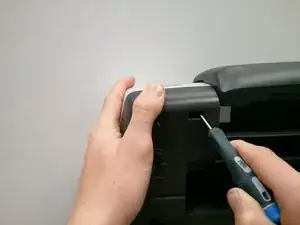

Insert the pointed end of a spudger into the hole on the bottom left corner of the printer and pry out the tab.

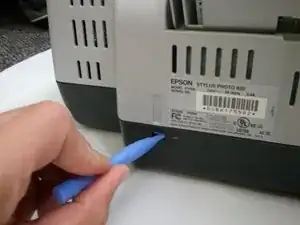

Insert the pointed end of a spudger into the hole on the bottom right corner of the printer and pry out the tab.

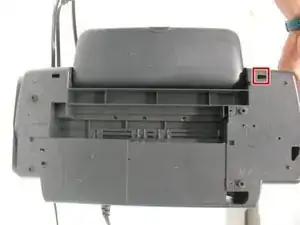

The final two tabs can be more difficult to release. Viewing from the front, they are located in the back left and right corners of the printer.

The release points for the tabs are located in holes on the depressed area of the base (darker piece).

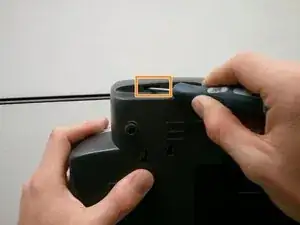

Use the pointed end of a spudger to pry out the tab.

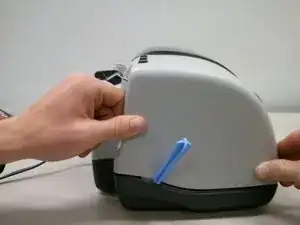

Use one of the plastic tools to keep the tab pried out. Once it releases, push in towards the printer (viewing from the side) and pull up on the case.

All of the tabs have now been released.

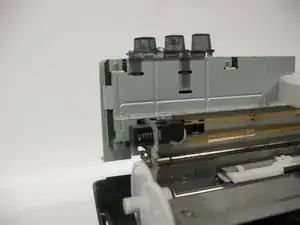

When trying to completely remove the cover, it gets caught on these two back components. Maneuvering around these can be tricky.

Push the cover to the right slightly and then push it backwards (out of the screen in this picture). This should give it some wiggle room. Repeat this as necessary.

Pull the cover up and off.

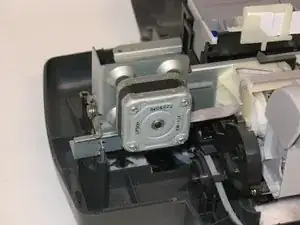

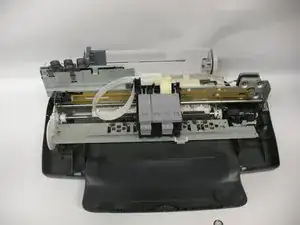

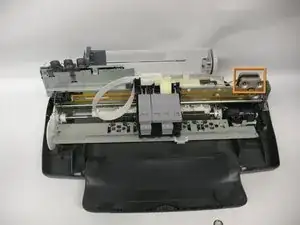

Locate the drive motor. It is the square object located in the back right of the chassis.

Remove the four screws that hold the motor down.

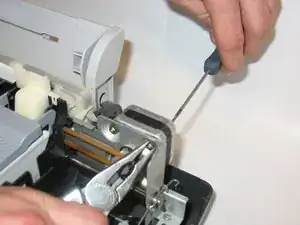

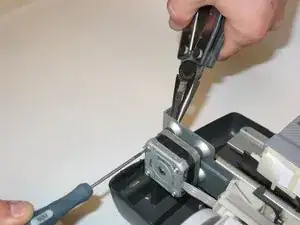

Use a small pair of needle-nose pliers to hold the back nut steady.

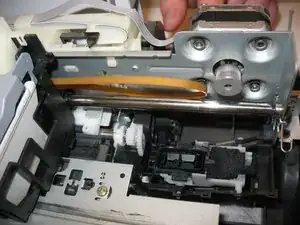

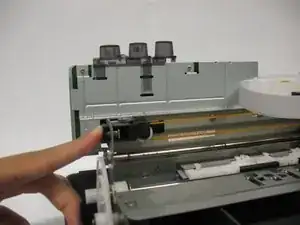

Push on the spring loaded tensioner on the left side of the belt to loosen the force on the drive motor.

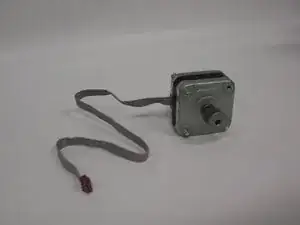

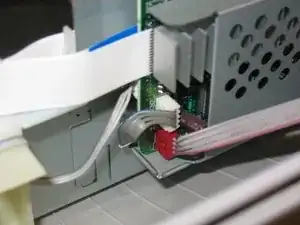

Remove the red cable connecting the motor to the logic board.

Once your old motor is out, follow the previous steps in reverse to install the new one!
